Above Photo: Part #72329

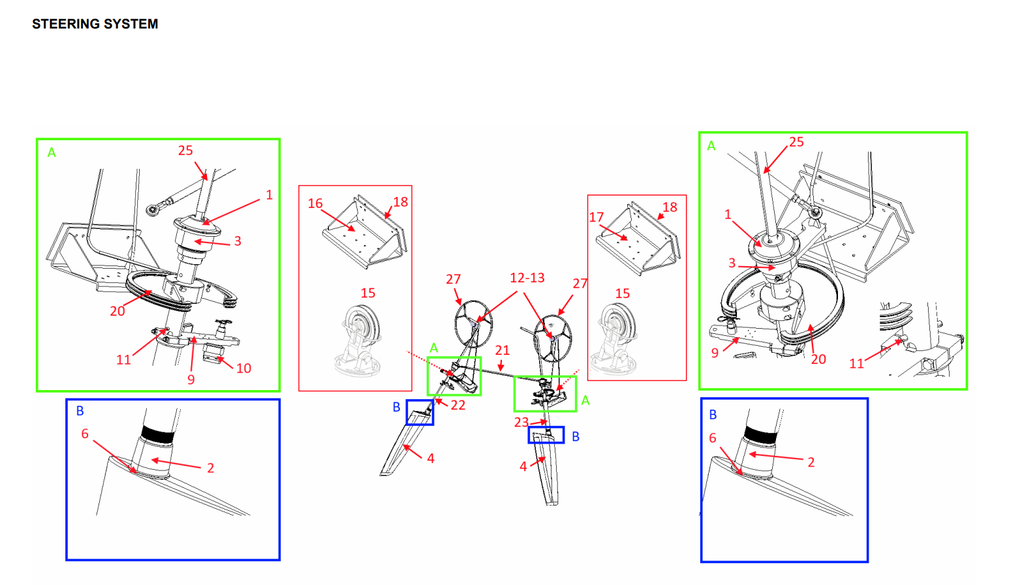

| Pos. | Part No. | Description | Quant. per boat | Version / Option | Beginning Hull No. | Ending Hull No. | Price (2026) $ + Shipping |
| 1 | 206753 | LOCKER PLAST LOWER BEARING JEFA D60D70 | 2,000 | ||||
| 1 | 207767 | GRP EPOXY PIPE D 86X 76 L554 | 2,000 | YANMAR 4JH80CR S2 (80CV)D | |||
| 1 | 71662 | STERN TUBE 35X60X260+P EPOXY | 1,000 | YANMAR 4JH110CR (110CV)D | |||
| 1 | 207767 | GRP EPOXY PIPE D 86X 76 L554 | 2,000 | YANMAR 4JH110CR (110CV)D | |||
| 2 | 207654 | LOWER BEARING D 60 JEFA | 2,000 | ||||
| 3 | 198563 | UPPER BEARING D 60 JEFA | 2,000 | ||||
| 4 | 207707 | SAFRAN PR FY5MA M INOX R9016 | 2,000 | ||||
| 5 | 219981 | PIN D10X 55 INOX | 2,000 | 3 | |||
| 6 | 212654 | COMPENSATION RING 110X 61X 5 | 2,000 | ||||
| 7 | 207652 | BALL STOP D60 JEFA | 2,000 | ||||
| 8 | 214151 | WASHER POM JEFA 5X99X4 5 | 2,000 | ||||
| 9 | 192992 | RUDDER SHAFT OC5SB SIDE D60 | 2,000 | ||||
| 10 | 168631 | RUDDER STOP OC6SA | 4,000 | ||||
| 11 | 137006 | GOUPILLE D10X 85 SECT. | 2,000 | ||||
| 12 | 127823 | BULKHEAD STEERING SYSTEM | 1,000 | ||||
| 13 | 127825 | BULCK.STEERING SYST.W/NO BRAKE 10D LEWM. | 1,000 | ||||
| 14 | 72329 | STEERING GEAR CHAIN 5/8″ 35+2M GOIOT | 2,000 | “STEERING CHAIN 5/8″ 35+2 LINKS” | |||
| 15 | 93088 | NYL SHEAVE SINGLE BALL BEARING GOIOT | 4,000 | ||||
| 16 | 208780 | PORT SUPPORT SHEEVES OY5MA | 1,000 | ||||
| 17 | 208737 | STBD SUPPORT SHEEVES OY5MA | 1,000 | ||||
| 18 | 207647 | C PLATE SUPP AC ROLLER FY5MA | 2,000 | ||||
| 19 | 212439 | STEERING CABLE OY5MA AM | 1,000 | 12 | |||
| 19 | 217123 | STEERING CABLE OY5MA NM | 1,000 | 14 | |||
| 20 | 207773 | REBORED QUADRANT D 60 R190 DG JEFA | 2,000 | ||||
| 21 | 207836 | BAR L2135 D15 LINK FPA | 1,000 | ||||
| 22 | 207657 | PORT RUDDER TILLER FY5MA D60 | 1,000 | ||||
| 23 | 207658 | STBD RUDDER TILLER FY5MA D60 | 1,000 | ||||
| 24 | 132047 | TILLER EMERGENCY SEC L FEND D30 L750 | 1,000 | ||||
| 25 | 986437 | STICK PLIERS | 2,000 | ||||
| 26 | 53335 | STRAP AUTO-AGGRIP L250 | 1,000 | ||||
| 27 | 123777 | COVERED STEERING WHEEL D900 S/S STDG | 2,000 | ||||
| 28 | 207767 | GRP EPOXY PIPE D 86X 76 L554 | 2,000 | YANMAR 4JH80CR SD (80CV)D |

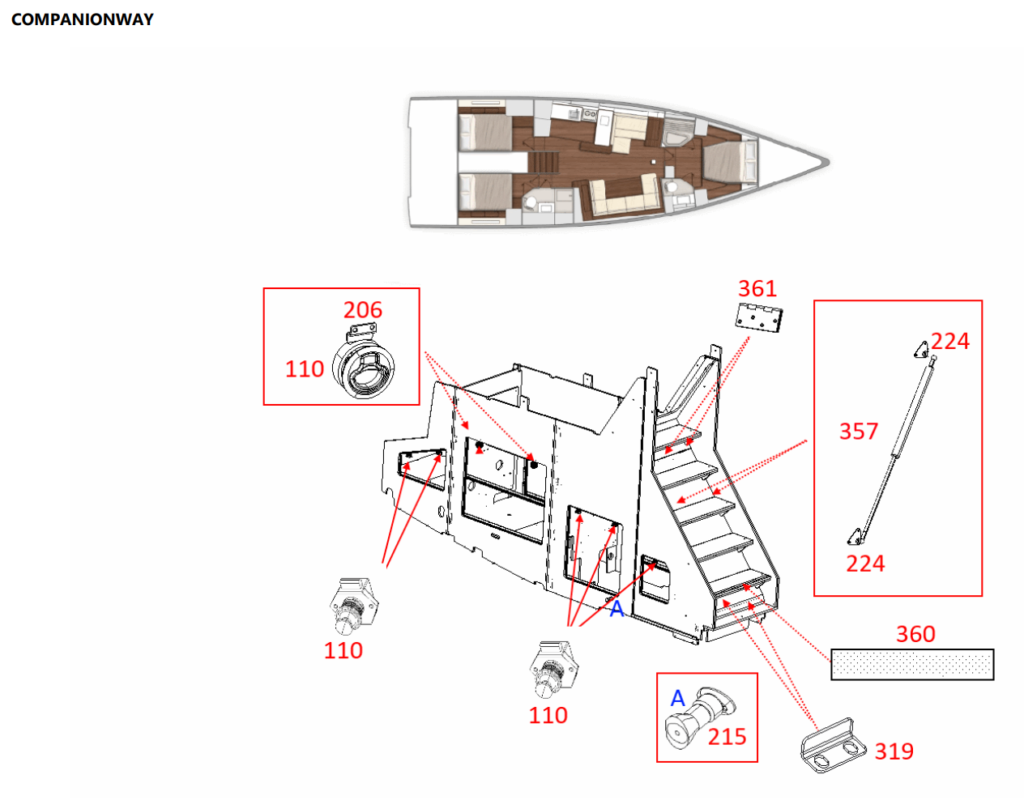

| Pos. | Part No. | Description | Quant. per boat | Version / Option | SS_FAM | Begining hull number | Ending hull number |
| 1 | 119536 | LATTE FIXATION STD 46X7 L2000 | 2,000 | EQUIPEMENT INTERIEUR | |||
| 1 | 56809 | S S LATCH FLUSH-PULL 7 A 12MM | 4,000 | EQUIPEMENT INTERIEUR | |||
| 83 | 37236 | ASSEMBLY PM2T 37106 BROWN | 4,000 | EQUIPEMENT INTERIEUR | |||
| 110 | 53751 | LOCK MINI PUSH-LOCK | 10,000 | EQUIPEMENT INTERIEUR | |||
| 205 | 171903 | WOODEN PIVOT D8 L16 | 16,000 | EQUIPEMENT INTERIEUR | |||
| 206 | 80947 | S S BOLT LATCH S | 4,000 | EQUIPEMENT INTERIEUR | |||
| 207 | 534945 | JOINT EPDM BLACK 3X9 RL 12 5ML | 11,200 | EQUIPEMENT INTERIEUR | |||
| 208 | G42000070 | PROFIL OMEGA L 0_70 ADH 11X18 | 1,000 | EQUIPEMENT INTERIEUR | |||

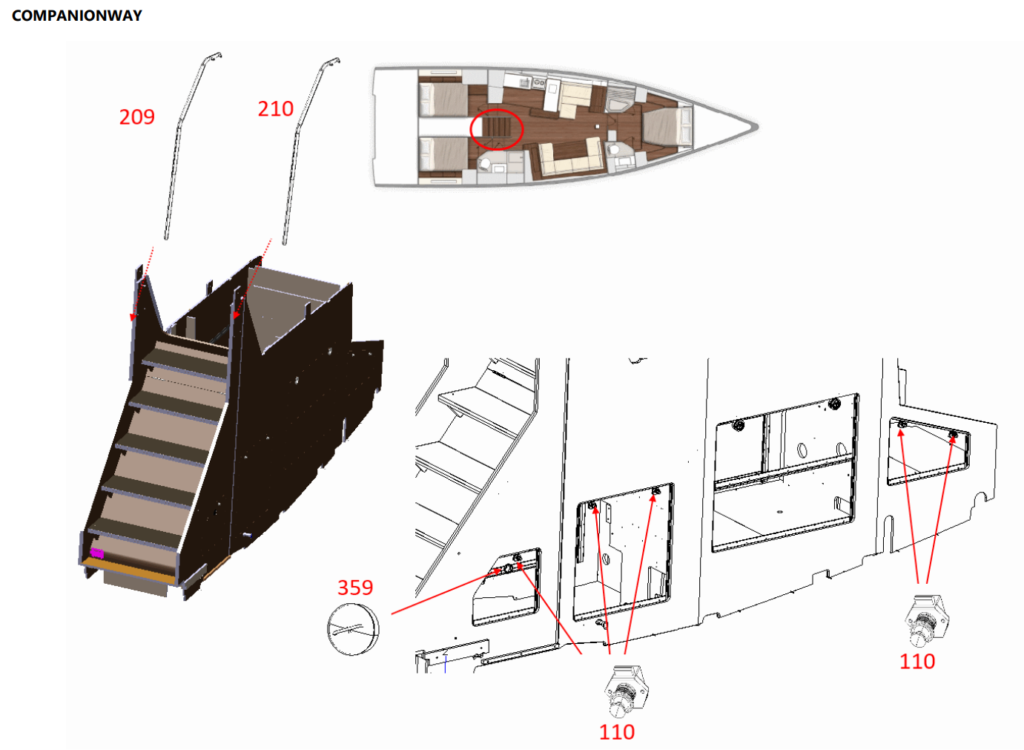

| 209 | 205945 | SS HANDRAIL COMPANIONWAY FY5MA PORT METE | 1,000 | EQUIPEMENT INTERIEUR | 35 | ||
| 209 | 227902 | HANDRAIL S S COMPANIONWAY PORT DK02 | 1,000 | EQUIPEMENT INTERIEUR | 36 | 85 | |
| 210 | 205946 | SS HANDRAIL COMPANIONWAY FY5MA STBD METE | 1,000 | EQUIPEMENT INTERIEUR | 35 | ||
| 210 | 227903 | HANDRAIL S S COMPANIONWAY STBD DK02 | 1,000 | EQUIPEMENT INTERIEUR | 36 | 85 | |
| 211 | 141678 | METAL SCREW S S A4 TFHC M 6X50 | 2,000 | EQUIPEMENT INTERIEUR | |||
| 212 | 198726 | METAL SCREW S S A4 TFHC M6X40 | 4,000 | EQUIPEMENT INTERIEUR | |||
| 213 | G09180117 | GOULOT COUV_ L1_17 40 GRISE | 1,000 | EQUIPEMENT INTERIEUR | |||
| 214 | G09180028 | GOULOT COUV_ L0_28 40 GRISE | 1,000 | EQUIPEMENT INTERIEUR | |||
| 215 | 62837 | STRIKE PLATE MAGNETIC | 2,000 | EQUIPEMENT INTERIEUR | 3 | ||
| 224 | 120160 | S/S JACK SUPPORT 0° STD NEW MODEL | 4,000 | EQUIPEMENT INTERIEUR | |||
| 319 | 903056 | PUSH LOCK STRIKE | 2,000 | EQUIPEMENT INTERIEUR | |||
| 357 | 81492 | GAS JACK 80K LD609 STDG | 2,000 | EQUIPEMENT INTERIEUR | |||
| 358 | 84990 | ANTI SKID BROWN 25MM L1000 X3 | 4,000 | EQUIPEMENT INTERIEUR | |||
| 359 | 130151 | PLUG L200 EXTENGUISHEN TWINE | 1,000 | EQUIPEMENT INTERIEUR | |||
| 360 | 215148 | ANTI SKID BLACK 25MM L735 X10 | 1,000 | EQUIPEMENT INTERIEUR | 3 | 61 | |
| 361 | 905475 | S/S HINGE 100X90 STDG | 2,000 | EQUIPEMENT INTERIEUR | |||
| 834 | 119536 | LATTE FIXATION STD 46X7 L2000 | 720 | EQUIPEMENT INTERIEUR |
