Beneteau Sailboat Model RangeStanchion Specifications & TypePart Model NumberAccessory Parts (Bases, Backing Plates, Gate & Hardware)Price +shipping (2027)
First Series
(Classic / Legacy)

(First 210, 235, 260, 285, 300, 310, 325, 345, 356, 375, 405, 42s7, 45f5)

STANCHION L610 D22 INT STDG
610 mm / 24 Tapered Stainless Steel

25 mm Outer Diameter
2 Lifeline Holes
130401 (Replacing 030481)

• Parallel Deck Base: #002877
• Black Composite Base: #334620
• Backing Plate: Schaefer #36-91 / S/S Plate
• Fastener Bolts: M8x50 S/S Hex Screw (#936150)
• Retaining Pins: Clevis Pin & Ring (#054900)
$43.00
Oceanis Series (Legacy / Vintage)
(Oceanis 281, 300, 320, 321, 350, 381, 390, 400, 411, 430, 440, 461, 500)
610 mm / 24 Straight/Tapered S/S
25 Outer Diameter
2 Lifeline Holes
#204100 / #16612MOD• Aluminum Deck Base: #002877
• Conical Stanchion Base: #334650
• Backing Plate: S/S Dual-Hole Plate
• Pelican Gate Hook: #27-886 / #121312
• Gate Fast Pin: $25\text{ mm}$ S/S Quick Pin
Oceanis Series & Oceanis .1 Series (Modern / CE Cat A)
(Oceanis 30.1, 34.1, 35.1, 38.1, 40.1, 41.1, 46.1, 51.1, Oceanis 31, 35, 38, 41, 45, 48, 55)
Single Stantion
710 mm / 28″ Tall S/S
25 mm Outer Diameter
22 mm Inner Diameter
2 Lifeline Holes
#178135 • Stanchion Base: 178124
• Backing Plate: Under-Deck Threaded Plate: 180672
Oceanis Yacht & Sense Series
(Oceanis Yacht 54, 60; Sense 43, 46, 50, 55, 57)
710 mm 750 mm Heavy-Duty S/S
25 mm – 30 mm Outer Diameter
2 or 3 Lifeline Holes + Gate Eyelets
#334700 / #OY-ST710• Flush-Mount Base: #334680
• Heavy Backing Ring: Custom S/S Deck Washer
• Boarding Gate Assembly: Dual-leg braced kit
• Deck Bolts: M8 / M10 S/S Torx Hardware
First Performance & Figaro Series
(First 14, 24, 27, 36, 44, 53; Figaro II, III)
610 mm–700 mm Lightweight S/S or Anodized Alloy
25 mm Outer Diameter
2 Lifeline Holes
#204105 / #FIG-ST610• Low-Profile Alloy Base: #002880
• Composite Backing Washers: Lightweight load plates
• Hiking Covers: Neoprene / Foam Stanchion Sleeve
• Quick-Release Pins: S/S Lock Pins
Cyclades & Charter Series
(Cyclades 39.3, 43.4, 43.5, 50.5, Moorings / Sunsail variants)
610 mm – 700 mm Heavy-Wall S/S
25 mm Outer Diameter
2 Lifeline Holes
#204100 / #334610• Heavy-Duty Conical Base: #334650
• Backing Plate: Schaefer #36-91
• Gate Pelican Hooks: Over-Center Gate Hook (#27-886)
• Lifeline Hardware: $3/16\text{“}$ Wire Crimp End Fittings
Beneteau Sailboat Model RangeStanchion Specifications & TypePart Model NumberAccessory Parts (Bases, Backing Plates, Gate & Hardware)Price +shipping (2027)
First Series
(Classic / Legacy)
(First 210, 235, 260, 285, 300, 310, 325, 345, 356, 375, 405, 42s7, 45f5)
STANCHION L610 D22 INT STDG
130401 (Replacing 030481)$43.00

Beneteau part #130401 is the official direct factory replacement for part #030481.

Will it fit the same socket?

Yes. Both the original #030481 and the superseded #130401 share the identical 22 mm (D22 / ~7/8″) base outer diameter and nominal 610 mm (L610 / ~24″) height.

They slide directly into standard Beneteau 22 mm stanchion deck sockets and rail bases (such as base part #129230).

What are the differences?

While functionally and dimensionally interchangeable, the part numbers reflect an engineering supersession and supplier standardization by Groupe Beneteau across production hull transitions:

  1. Lifeline Eyelet / Ferrule Construction:
  • 030481 (Original): Older revisions typically used mechanical pressed-in plastic grommets or basic drilled pass-through holes that could wear, crack, or cause lifeline chafe over extended UV exposure.
  • 130401 (Current): Features an updated smooth, flared/rolled stainless steel ferrule for the intermediate lifeline (INT), improving wire/Dyneema chafe resistance and aligning with current ISO/CE lifeline load and friction guidelines.
  1. Top Cap Integration:
  • Modern 130401 stanchions utilize a fully welded, seamless barrel-head top design rather than older friction-pressed or threaded top caps.
  1. Part Nomenclature & Cataloging:
  • Beneteau standardized its parts catalog system across production models (Oceanis, First, and Sun Odyssey lines). The code STANCHION L610 D22 INT STDG breaks down as:
  • L610: 610 mm (~24 in) overall height.
  • D22: 22 mm outer diameter base.
  • INT: Intermediate lifeline eyelet included.
  • STDG: Standard straight (“standing”) stanchion design (as opposed to angled, braced, or gate stanchions).

Installation Note

While the 22 mm tube will seat into your socket, check how your existing base retains the stanchion:

  • If your socket secures the stanchion via an exterior grub/pinch screw, it drops in with no modification.
  • If your socket relies on a through-bolt / cross-pin, verify the height and orientation of the pre-drilled pin hole. In some production runs, replacement stanchions arrive either pilot-drilled or undrilled at the lower socket stem so you can match the cross-bolt position of your deck base.

Pricing

Beneteau Sailboat Model RangeStanchion Specifications & TypePart Model NumberPrice + Shipping (2026)
First Series (Classic / Legacy)
(First 210, 235, 260, 285, 300, 310, 325, 345, 356, 375, 405, 42s7, 45f5)
610 mm / 24 Tapered Stainless Steel
25 mm Outer Diameter
2 Lifeline Holes

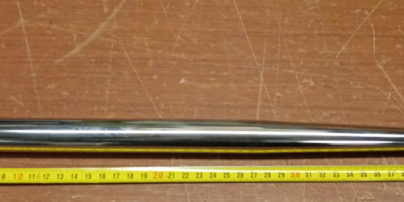

#204100
(Alt: HYE 16612MOD)
Oceanis Series (Legacy / Vintage)
(Oceanis 281, 300, 320, 321, 350, 381, 390, 400, 411, 430, 440, 461, 500)
610 mm / 24 Straight/Tapered S/S
25 Outer Diameter
2 Lifeline Holes
#204100 / #16612MOD
Single Stanchion
710 mm / 28″ Tall S/S
25 mm Outer Diameter
22 mm Inner Diameter
2 Lifeline Holes
178135 $49.00
Stanchion Base for (178135)
STANCHION BASE S S D22X44
178124$27.00
Backing Plate: Under-Deck Threaded Plate for (178124)
80X50X10 M12
180672$23.00
Oceanis Yacht & Sense Series
(Oceanis Yacht 54, 60; Sense 43, 46, 50, 55, 57)
710 mm 750 mm Heavy-Duty S/S
25 mm – 30 mm Outer Diameter
2 or 3 Lifeline Holes + Gate Eyelets
#334700 / #OY-ST710
First Performance & Figaro Series
(First 14, 24, 27, 36, 44, 53; Figaro II, III)
610 mm–700 mm Lightweight S/S or Anodized Alloy
25 mm Outer Diameter
2 Lifeline Holes
#204105 / #FIG-ST610
Cyclades & Charter Series
(Cyclades 39.3, 43.4, 43.5, 50.5, Moorings / Sunsail variants)
610 mm – 700 mm Heavy-Wall S/S
25 mm Outer Diameter
2 Lifeline Holes
#204100 / #334610

Overview of Accessory Components

  • Stanchion Bases:
  • Conical Base (#334650): The primary OEM base used across modern Beneteau/Jeanneau models. Features a flared cone base designed to distribute lateral loads. Beneteau part #334650 is a flared conical stanchion base designed to distribute lateral lifeline loads across a broader deck surface, whereas part #178124 is a cylindrical stanchion base with a compact profile specified for 22 mm inner-diameter stanchion mountings.
    Key Functional Differences:
    Footprint & Mounting: Part #334650 uses an angled, flared cone shape to mitigate deck stress when leverage is applied to the lifeline. Part #178124 uses a straight cylindrical profile intended for tight deck locations or toe-rail mountings where space for a wider cone flange is limited.
    Stanchion Mating: Both support standard 25 mm outer-diameter stanchions with a 22 mm bottom insert, but the interior socket depth and base angle differ to match specific hull and deck bevels.
  • Parallel/Flat Base (#002877): Used primarily on flat deck surfaces and legacy First/Oceanis models.
  • Backing Plates:
  • Part #36-91: S/S backing plate placed underneath the deck gelcoat/fiberglass to prevent stanchion breakout during high loads.
  • Boarding Gate Accessories:
  • Braced Support Legs: Diagonal $25\text{ mm}$ support struts attached to gate stanchions to absorb tension when life-gates are open.
  • Pelican Hooks (#27-886 / #121312): Over-center quick-release latches attached to $3/16\text{“}$ lifeline wire ends for side-boarding access.
FeaturePart #334650Part #178124
Design TypeConical (flared base flange)Straight / Cylindrical socket
DimensionsBase: 9 cm L × 3.8 cm W; Height: 7.5 cmFitting specification: D22 mm × 44 mm
Load DistributionSpreads lateral force over a wider fiberglass footprint to prevent flexConcentrates mounting on a smaller, narrow deck surface
MaterialPolished Marine-Grade Stainless SteelPolished Marine-Grade Stainless Steel (S/S)
Common FitmentStandard OEM base on modern Oceanis, Jeanneau, and Excess modelsSelected specific deck layouts (e.g., Oceanis 34.1 series)
