Sails
| Part No. | Description | Quant. per Boat | Price (2026) |
| Mainsail Furling | 1,000 | ||
| Genoa Furling | 1,000 |
Human Protection

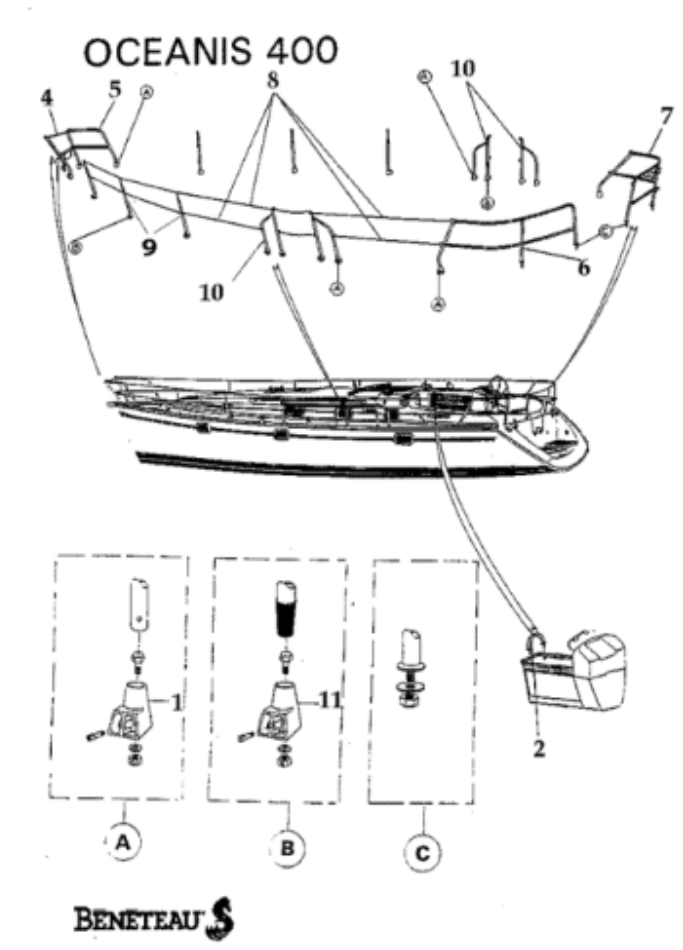

| Poss. | Description | Qty | Part Number |

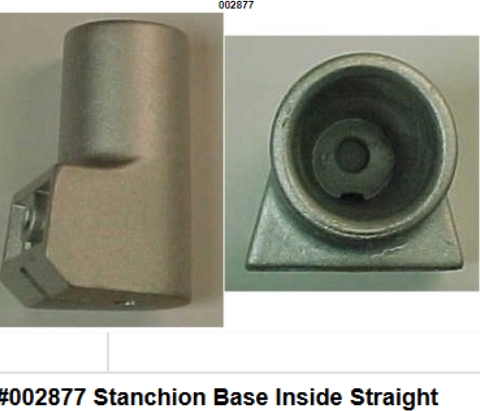

| 1 | Stanchion Base Inside Straight | 10 | 002877 |
| 1 | Stanchion Base Inside Straight | 6 | 002877 |
| 2 | Handrails D25 W/O Light Mount | 1 | 021453 |
| 4 | Bow Rail Lifeline L450 | 1 | 010876 |
| 5 | Bow Rail Swedish O400 | 1 | 082110 |
| 6 | Rail Aft Port 14440 | 1 | 021303 |
| 7 | Stern Rail 14440 STBD | 1 | 021304 |
| 8 | Lifeline 14400 S.Size No Cover (Obsolete Part) | 1 | 022278 |
| 8 | Lifeline 14400 Small Gate Cove (Hull #114 – ) (Obsolete Part) | 1 | 028952 |
| 9 | Stanchion Conical L636 * Replac | 6 | 001673 |
| 9 | Stanchion L610 D22 Int STDG (Hull # 186 – ) (Replacing 030481) | 6 | 130401 |
| 9 | Cylind.+Sphere Stanchion L636 (Hull #157 – ) | 6 | 030820 |
| 10 | Stanchion Gate SS L636 | 4 | 001674 |
| 10 | Obsolete Part (Hull #157 – ) (Replacing 030821) | 4 | Obsolete |
| 10 | Stanchion Double Gate L610-280 (Hull # 186 – ) (Obsolete Part) | 4 | 033036 |
| 11 | Stanchion Base Inside Straight | 10 | 002877 |

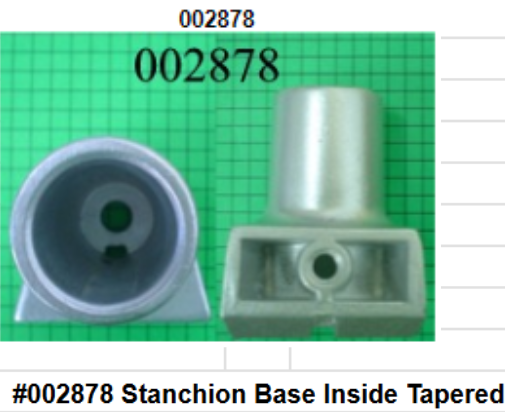

| 11 | Stanchion Base Inside Tapered | 10 | 002878 |
| 11 | Screw M Mach Socket Cap 8×25 A | 10 | 008803 |
| 11 | Base Stancion D25 ***DNO** USE (Hull #186 – ) (Obsolete Parts) | 14 | 027495 |
Shower Parts

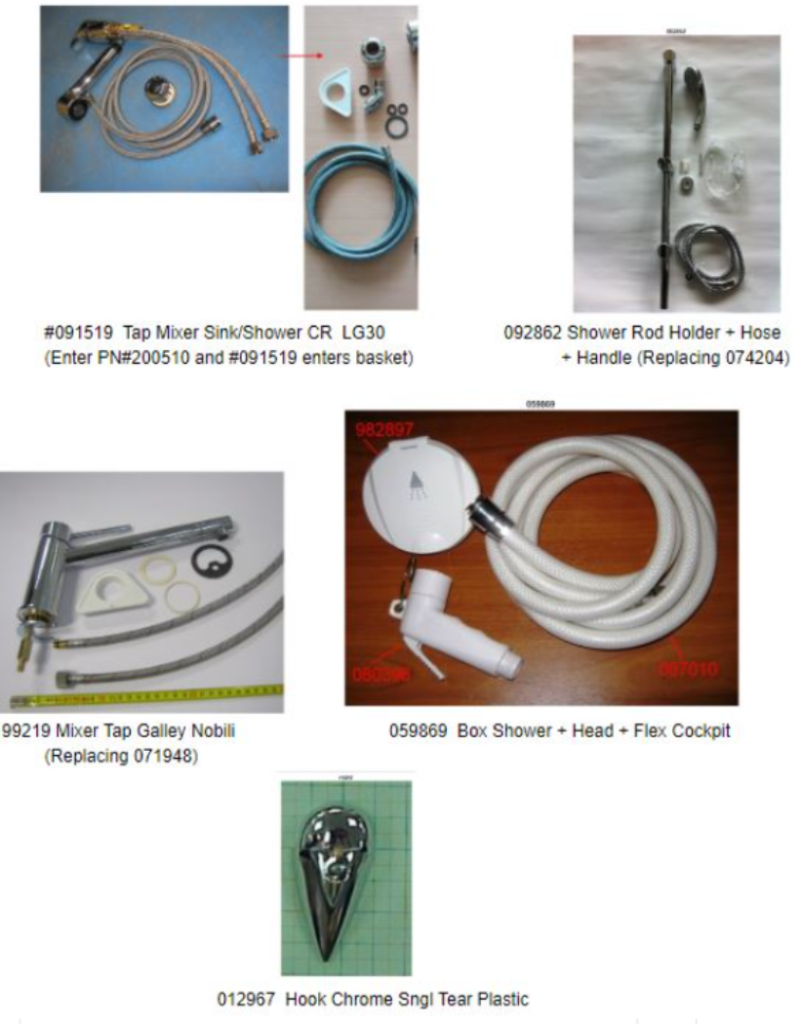

| Tap Mixer Sink/Shower CR LG30 (REplacing 200510) | 1 | 091519 |
| Shower Hose L1500 FF 1 SP-1 2P (REplacing 080340) | 1 | 199165 |
| Mixer Tap Galley Nobili (Replacing 071948) | 1 | 199219 |
| Shower Rod Holder + Hose + Handle (Replacing 074204) | 1 | 092862 |
| Box Shower + Head + Flex Cockpit | 1 | 059869 |
| Hook Chrome SNGL Tear Plast | 1 | 012967 |

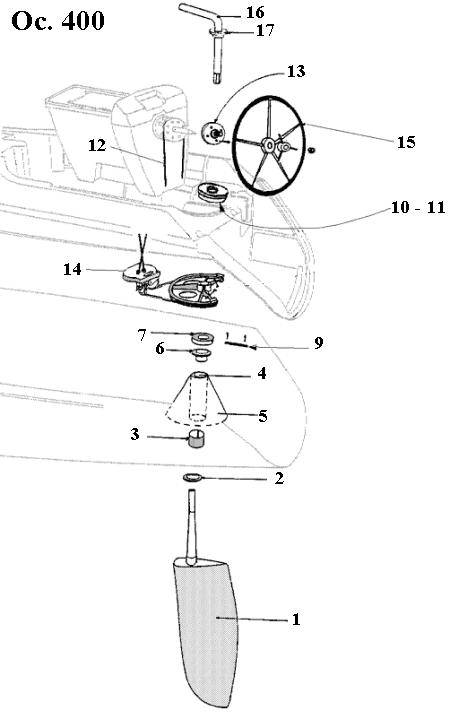

| Poss | Discription | Quantity Per Boat | Part # | Beneteau Price + Shipping 2026 | |
| 2 | SPACER WASHER 140X112X5 DELRIN | 1 | 008154 | 31.51 | |

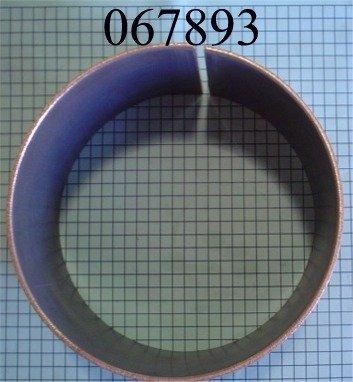

| 3 | RING PYD 110X 60 NM | 1 | 067893 | 180.29 | |

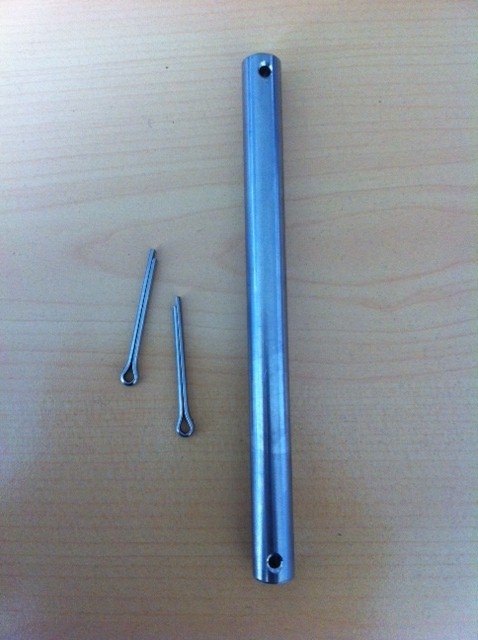

| 9 | PIN D12X150 +2 SPLIT PINS 3X25 | 1 | 465240 | 119.93 | Selden Part $34.70 |
In Beneteau’s technical manuals and parts catalogs, PYD stands for Palier Yacht Direction (French for Yacht Steering Bearing / Collar). It denotes a rudder stock locking collar or thrust ring fitted above the upper rudder bearing to hold the rudder height in place and control thrust loads.
Part Description Breakdown (S S RING PYD 110X60 NM)
- S S: Stainless Steel (Inox)
- RING: Shaft Locking Collar / Retaining Ring (Bague de blocage)
- PYD: Palier Yacht Direction (Steering gear positioning collar/bearing)
- 110 X 60: Dimensions in millimeters (110 mm Outer Diameter × 60 mm Inner Bore Diameter)
- NM: Nouveau Modèle (French for “New Model” / revised revision, as opposed to AM for Ancien Modèle)
Beneteau part 008154 is a 5 mm thick Delrin (acetal) thrust washer/equilibrium ring with a 140 mm outer diameter (OD) and a 112 mm inner diameter (ID), typically used in rudder stock assemblies on Beneteau, Jeanneau, and Lagoon boats.
