Hunter Marine – Hunter 410 — Model Review (1998 – 2003)

The Hunter 410 is a production cruising sailboat designed by the Hunter Design Team and manufactured in Alachua, Florida.

Model Technical Specifications & Specifications Sweep

• Manufacturer: Hunter Marine (Luhrs Marine Group)
• Production Facility: Alachua, Florida, USA
• Production Years: 1998 – 2003
• Production Volume: ~280 hulls built
• Design Team: Hunter Design Team (led by Warren Luhrs and Glenn Henderson)

Dimensions & Displacement:

• LOA: 43′ 5″ (13.23 m)
• LWL: 37′ 10″ (11.53 m)
• Beam: 13′ 10″ (4.22 m)
• Displacement: 20,200 lbs
• Ballast: 7,400 lbs (Lead)

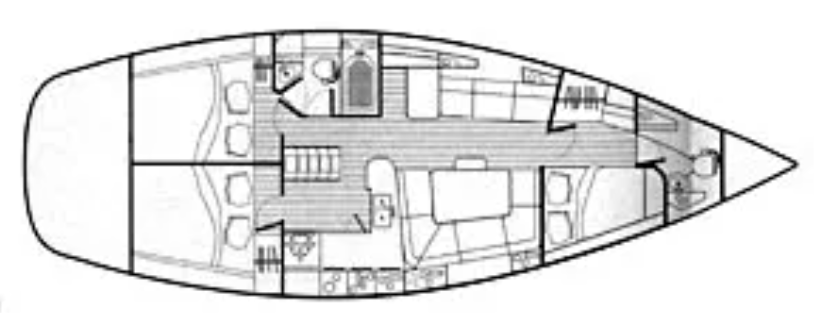

Optional Layout Configurations:

• 2-Cabin / 2-Head (Owner’s Layout): Aft master stateroom with queen berth and ensuite head with separate shower stall; forward guest stateroom with private head.
• 3-Cabin / 2-Head (Family/Tri-Cabin Layout): Twin aft double staterooms, forward guest stateroom, and two heads.

Keel Options & Draft:

• Shoal Draft Wing Keel: 5′ 0″ (1.52 m)
• Deep Fin Keel: 6′ 4″ (1.93 m)

Rigging & Mast Options:

• Rig Type: B&R (Bergstrom & Ridder) fractional rig with swept spreaders and backstayless design.
• Mast Height (Air Draft): 58′ 5″ (17.8 m) (standard mast excl. antenna).
• Sails / Furling Options: In-mast roller furling mainsail (Selden) or standard slab-reefing mainsail with stack pack and lazy jacks.

Engine & Drive Options:

• Engine Options: Yanmar 4JH2E (50 HP) or Yanmar 4JH3E (56 HP) 4-cylinder diesel engines.
• Drive System: Direct shaft drive (1-1/4″ stainless steel shaft, dripless shaft seal/packing gland, P-bracket strut, fixed or folding prop).

• Optional Major Equipment: Northern Lights or Fischer Panda 4–6 kW diesel generator, dual-zone reverse-cycle heat/AC, bow thruster, fiberglass arch with mainsheet traveler, electric winches, solar panels, watermaker.
• Model Evolution: Evolved from the Hunter Legend 40.5 / 430 series. Updated throughout production with engine iterations and cabinetry refinements, before transitioning to the Hunter 41 / 41 Deck Salon (41DS) around 2004.

Market Factors & Common Survey Items

Common Technical Inspection Items:

• B&R Rigging & Swept Spreaders: High rig tension places significant load on chainplates, bulkhead attachments, and standing rigging.
• Structural Grid & Hull-to-Deck Seam: FRP grid pan bonding requires inspection under cabin soles; deck-to-hull joints and large panoramic deck-hatches are prone to sealant breakdown over time.
• Refrigeration & Hatch Hardware: Factory fridge/freezer door gas struts and latch hardware frequently show wear on early models.
• Rudder Bearings: Spade rudder stock play should be evaluated during out-of-water surveys.

Competitive Models Comparison Table

Model	Production Years	LOA	Beam	Draft (Shoal / Deep)	Displacement	Sail Area	Standard Engine
Hunter 410	1998–2003	43′ 5″	13′ 10″	5′ 0″ / 6′ 4″	20,200 lbs	823 sq ft	Yanmar 50–56 HP
Catalina 400 MkII	1995–2009	40′ 6″	13′ 6″	5′ 4″ / 6′ 10″	20,500 lbs	808 sq ft	Westerbeke / Yanmar 54 HP
Beneteau Oceanis 411	1997–2004	41′ 8″	13′ 0″	4′ 9″ / 5′ 7″	18,740 lbs	830 sq ft	Volvo / Yanmar 50–56 HP
Jeanneau Sun Odyssey 40	1999–2004	40′ 0″	12′ 11″	4′ 11″ / 6′ 4″	16,094 lbs	785 sq ft	Yanmar 56 HP
Bavaria 40 Cruiser	2000–2004	40′ 8″	13′ 1″	5′ 1″ / 6′ 5″	17,400 lbs	800 sq ft	Volvo Penta 40–55 HP
