Model Data & Technical Specifications
Manufacturer: Hunter Marine (Alachua, Florida, USA)
Model: Hunter 310
Production Years: 1997 – 2000
Production Volume:
Production Facility: Alachua, Florida, USA
Design Team: Hunter Design Team (Warren Luhrs / Luhrs Marine Group)
Layout Configurations:

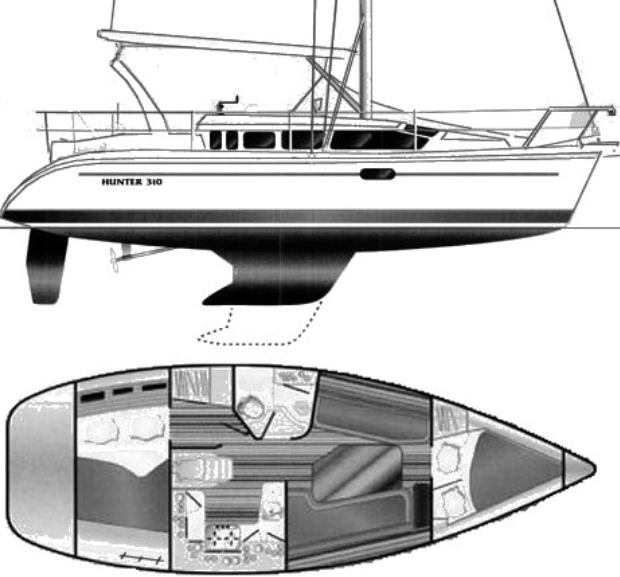

- Single interior floorplan featuring an open-concept main saloon, forward V-berth, aft master berth arranged athwartships, enclosed head with shower, and an L-shaped galley.
Keel Options & Draft:
- Deep Fin Keel: 5 ft 6 in (1.68 m) draft
- Shoal Draft Wing/Bulb Keel: 4 ft 0 in (1.22 m) draft
Mast & Air Draft Options:
- Rig Type: Fractional B&R (Bergstrom & Ridder) rig with swept-back spreaders and no backstay.
- Air Draft (Bridge Clearance): 52 ft 6 in (16.0 m)
Mast/Sailing Handling Options:
- Standard slab/reef mainsail with full battens
- Optional Selden in-mast furling mainsail.
Engine Options:
- Standard: Yanmar 2GM20F 18 HP 2-cylinder marine diesel
- Optional: Yanmar 3GM30F ~27 HP 3-cylinder marine diesel (offered on select hulls)
Engine Drive System: Direct shaft drive through a traditional stuffing box/P-bracket assembly to a 2-blade fixed propeller.
Optional / Major Equipment Offered:
- Integrated stainless steel radar arch with elevated mainsheet traveler and bimini attachment points.
- Molded fiberglass steering pedestal with integrated cockpit table leaves and instrument pods.
- Walk-through transom with hinged helm seat and integrated swim platform shower.
- Electric anchor windlass mounted inside the foredeck anchor locker.
- Marine reverse-cycle air conditioning/heating.
Model Evolution: Produced from 1997 through 2000. In 2000, Hunter Marine updated the deck tooling and interior trim, evolving the hull platform into the Hunter 320.
Factors Influencing Market Value
Chainplate Inspection Points: Chainplates are through-bolted horizontally at the gunwale bulwark. Sealant degradation in these deck penetrations can cause water intrusion if not properly re-bedded.
Hunter 310 / Hunter 320 – Key Differences & Evolution
Hull & Layout Evolution: The Hunter 320 is a direct revision of the Hunter 310. It gained roughly 9 inches in overall hull length, primarily in the transom and stern profile, which improved cockpit seating and boarding ease.
Tankage Upgrade: The most notable practical upgrade in the 320 is tank capacity. Fresh water capacity was substantially increased to 50 gallons (from the 310’s base 20-gallon supply), making the 320 far better suited for multi-day coastal cruising.
Keel & Weight Distribution: The 320 added 200 lbs of ballast to offset its slightly deeper draft options and tweaked rig geometry, offering marginally better righting moment and stability in heavier air.
| Feature / Specification | Hunter 310 | Hunter 320 |
| Production Years | 1997 – 2000 | 2000 – 2002 |
| Length Overall (LOA) | 30 ft 10 in (9.40 m) | 31 ft 7 in (9.63 m) |
| Waterline Length (LWL) | 28 ft 0 in (8.53 m) | 28 ft 4 in (8.63 m) |
| Beam | 10 ft 10 in (3.30 m) | 10 ft 10 in (3.30 m) |
| Standard Draft (Deep) | 5 ft 6 in (1.68 m) | 5 ft 10 in (1.78 m) |
| Shoal Draft | 4 ft 0 in (1.22 m) | 4 ft 4 in (1.32 m) |
| Displacement | 8,500 lbs (3,856 kg) | 8,550 lbs (3,878 kg) |
| Ballast | 3,000 lbs (1,361 kg) | 3,200 lbs (1,451 kg) |
| Total Sail Area | ~464 sq ft (43.1 m²) | ~437 sq ft (40.6 m²) |
| Rigging Type | Fractional B&R Sloop | Fractional B&R Sloop |
| Standard Engine | 18 HP Yanmar Diesel | 18 HP Yanmar Diesel |
| Fuel Capacity | 25 gal (95 L) | 28 gal (106 L) |
| Fresh Water Capacity | 20 gal (76 L standard) | 50 gal (189 L standard) |
| Average PHRF Rating | ~168 | ~168 |
Competitive Models Comparison
| Specification | Hunter 310 | Catalina 310 | Beneteau 311 |
| Production Years | 1997–2000 | 1999–2008 | 1998–2004 |
| Length Overall (LOA) | 30 ft 10 in | 31 ft 0 in | 31 ft 2 in |
| Waterline Length (LWL) | 28 ft 0 in | 26 ft 5 in | 28 ft 10 in |
| Beam | 10 ft 10 in | 11 ft 6 in | 10 ft 7 in |
| Draft (Shoal / Deep) | 4 ft 0 in / 5 ft 6 in | 4 ft 4 in / 5 ft 9 in | 2 ft 7 in (lift) / 4 ft 9 in |
| Displacement | 8,500 lbs | 10,700 lbs | 7,716 lbs |
| Ballast | 3,000 lbs | 4,000 lbs | 2,205 lbs |
| Sail Area | 464 sq ft | 490 sq ft | 484 sq ft |
| Standard Power | Yanmar 18 HP | Universal 25 HP | Yanmar 18 HP |
