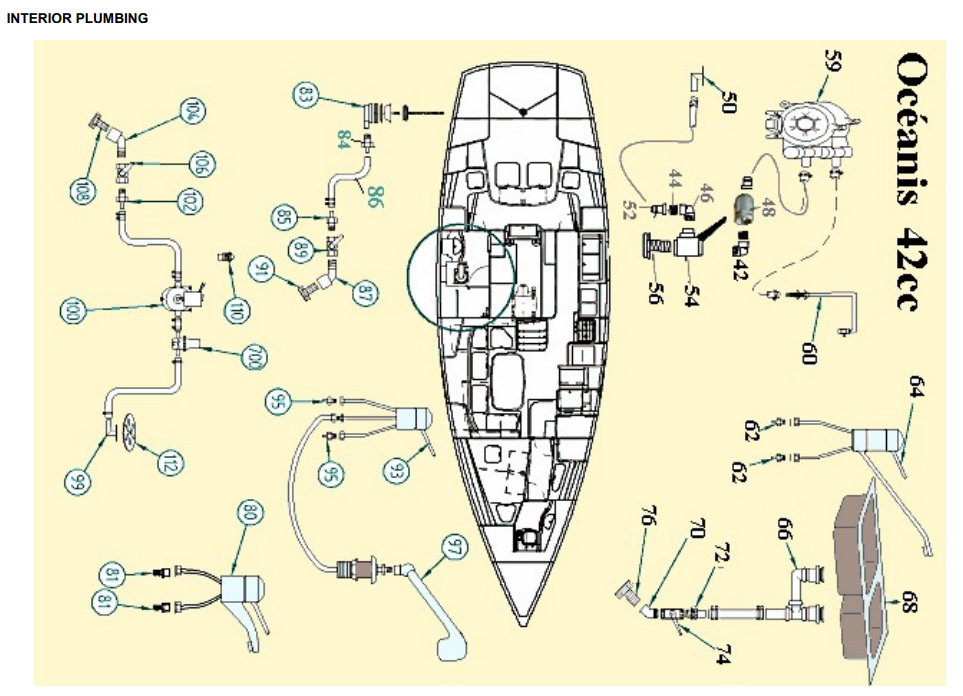

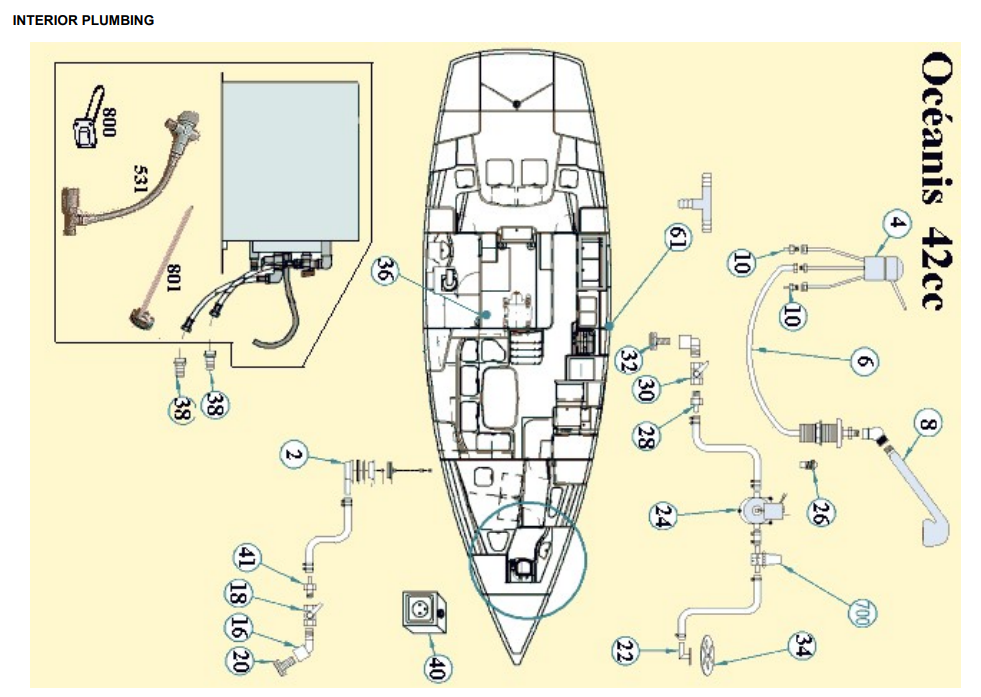

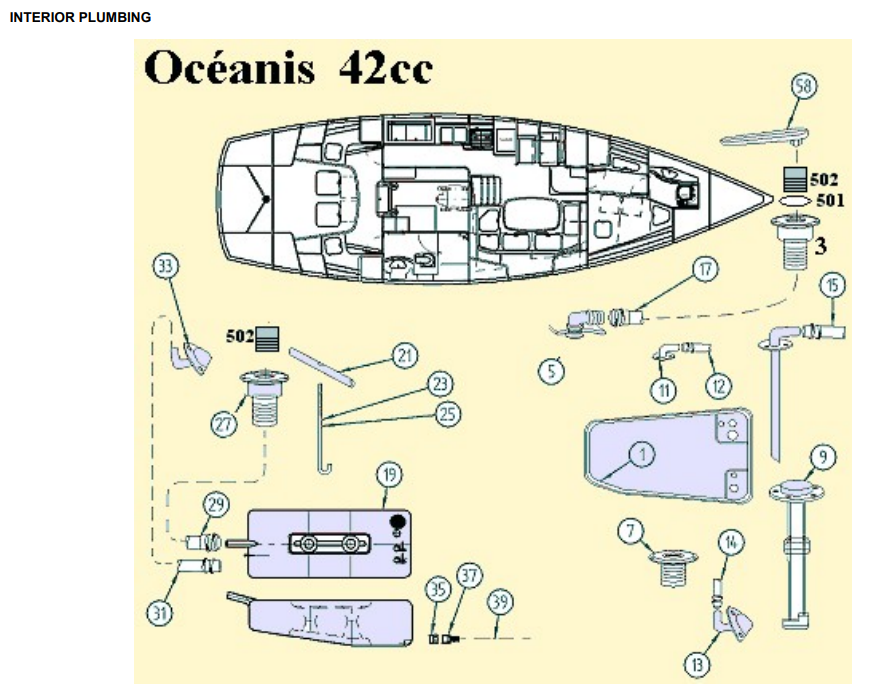

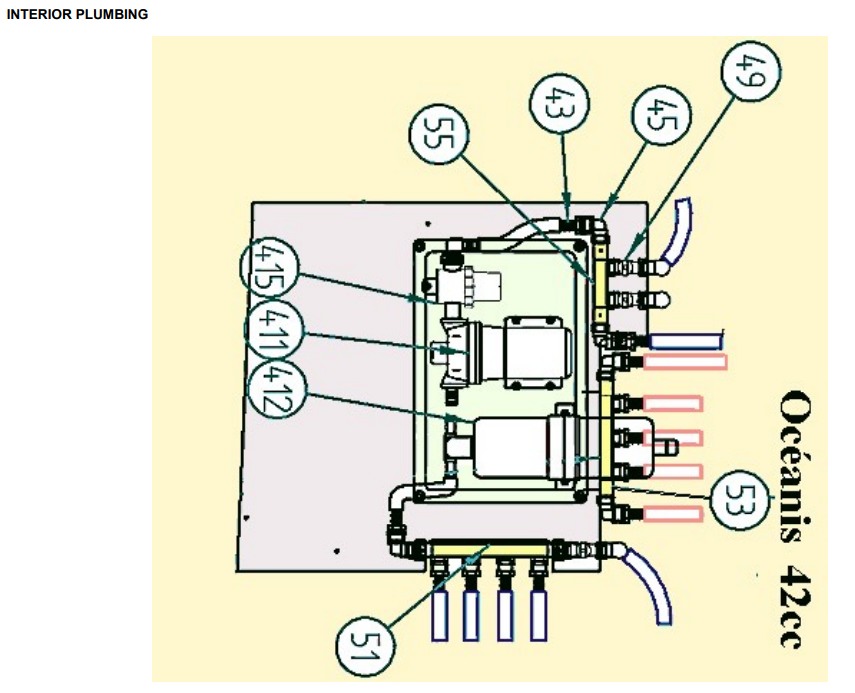

Please identify the parts that you need from the drawings below.

Murray Yacht Sales Team Recommendations – Link to Recommended Items for your Vessel

Cutlass Bearing / Shaft Seal

DescriptionQtyPart Number
037330Cutlass Bearing – 30X40X100+L R1$64.00
718950SSEAL Prop Shaft VOLVO D30 #8281$147.00

Pos.Part No.DescriptionQuant. per boatBeginning hull numberEnding hull numberPrice +shipping (2026)
1055440FWD STBD WATER TANK! NOT AVAILABLE!1,00017
1055440FWD STBD WATER TANK! NOT AVAILABLE!1,00016
2021391PLUG GROOVED D25 WASHBASIN SINK1,000
3065249SS DECK FILLER CAP FOR WATER1,000
4026942MIXING TAP COIFFEUR1,000
5338700PLASTIC GROOV COUPLING 90 ELBOW D35 TANK1,000
6049204WHITE SHOWER HOSE L2000/NOT AVAILABLE1,000
7043110NYLON DECK FILLER CAP FOR WATER TANK1,000
8037272SHOWER POMMEL 2JETS CHROM +FLEX ARTICUL1,000
9049841GAUGE VDO WATER TRANSMITTER WATERPROOF1,000
10027475STRAIGHT BASS CONN BEN M12X17 D122,000
11039241SS BLOW OFF WATER TANK1,000
12071156HOSE SPIRACIER D16X23 GREY D164,000
13005751VENT CHROMED BRASS TANK BENT STBD D161,000
14072477CRISTAL HOSE 12X20 BLUE4,000
15049611ASPIRATION D12 FRESH WATER TANK1,000
16056111BRONZED BRASS COUPLING 45 ELBO271,000
17054508BEN FLEX HOSE D35 L! NOT AVAILABLE!1,000
18026068VALVE BALL 14 T 20X27 BR W SS HANDLE1,000
19054860WATER TANK 243L 1442! NOT AVAILABLE!1,000
19049841GAUGE VDO WATER TRANSMITTER WATERPROOF1,000
20070294THRU HULL BR 20X27 341,000
21977262ALU TUBE D30X4 L500 +HOLE D121,000
22067804SHOWER DRAIN PIPE D20X70 BENT NM1,000
23019110TANK TIE ROD L300 THREADED 140MM1,000
24041563BILGE PUMP 12V 13L MN+FILTER ((CE)1,000
25864300TANK TIE ROD LGTH 380 140MM AM1,000
26530752SWITCH APR WATERPROOF PUSH1,000
27065249SS DECK FILLER CAP FOR WATER1,000
28342700HOSE BARB MALE BRASS 20X27 D191,000
29019238BEN FLEX HOSE D35 L! NOT AVAILABLE!1,000
30026068VALVE BALL 14 T 20X27 BR W SS HANDLE1,000
31071156HOSE SPIRACIER D16X23 GREY D162,000
32070294THRU HULL BR 20X27 341,000
33005751VENT CHROMED BRASS TANK BENT STBD D161,000
34027611SS BUNG GRILL D851,000
35022384NON-RETURN VALVE MF 15X21 BRASS1,000
36062661WATER HEATER 220V 42L QUICK 20031,000
37021142STRAIGHT BRASS CONN M15X21 D121,000
38021142STRAIGHT BRASS CONN M15X21 D122,000
39072477CRISTAL HOSE 12X20 BLUE7,000
40959637PLUG EL 2PL+GRND 230V PLEXO 551,000
41342700HOSE BARB MALE BRASS 20X27 D191,000
42342700HOSE BARB MALE BRASS 20X27 D191,000
43021142STRAIGHT BRASS CONN M15X21 D1213,000
44006267BRASS STR END-PIECE MM 20X27-15X211,000
45073711ELBOW 90 MF 1_2P STDG BRZ AM6,000
46073711ELBOW 90 MF 1_2P STDG BRZ AM1,000
47016142PLUG BRASS MALE 15X212,000
48047417NON-RETURN VALVE FF20X27 BRASS1,00073
49031053VALVE 2WAY 14T MF15X21 BRASS2,000
50038723SHOWER DRAIN PIPE D20 ICE BOX1,000
51060742BRASS MANIFOLD F15X21 5S 1E1,000
52342600BRASS STR GROOVED END-PIECE M15X21 D181,000
53060741BRASS MANIFOLD F15X21 4S 1E1,000
549063503 WAY VALVE 1 4T FFF15X21 (BRASS) L-WAY1,000
55060740BRASS MANIFOLD F15X21 3S 1E1,000
56070293THRU HULL BR 15X21 121,000
58231400TIGHTEN SPANNER WATER TANK DECK FILL CAP1,000
59690450SINK FOOT PUMP MK31,000
60096650SPOUT WITH CHROMED TAP1,000
61990561PLASTIC EE-PIECE 12X12X122,000
62027475STRAIGHT BASS CONN BEN M12X17 D122,000
64062479MIXING TAP SINK CHROMED/NOT AVAILABLE1,000
66041110DOUBLE SINK DRAIN_BONDES L3201,000
68032981SS SINCK 368X608X160 BARKA1,000
70073719ELBOW 45 MF 1P1_4 STDG BRZ AM1,000
72342800BRASS STR GROOVED END-PIECE M33X42 D361,000
749039562 WAY VALVE 1/4 FF 33X42 BRASS S/S JN1,000
76070297THRU HULL BRASS 33X42 1P1 41,000
80048099MIXING TAP WASH BASIN(SAROTECH)1,000
81027475STRAIGHT BASS CONN BEN M12X17 D122,000
83062205SINK DRAIN + PLASTIC PLUG /NOT AVAILABLE1,000122
83021391PLUG GROOVED D25 WASHBASIN SINK1,000121
84056901COUPLING F40X49 1P1 2 PLAST1,000122
85739440BRASS STRAIGHT COUPLING MF 20X27-33X421,000122
85342700HOSE BARB MALE BRASS 20X27 D191,000121
86023258BEN FLEX HOSE D35 L! NOT AVAILABLE!1,000122
87056111BRONZED BRASS COUPLING 45 ELBO271,000
89026068VALVE BALL 14 T 20X27 BR W SS HANDLE1,000
91070294THRU HULL BR 20X27 341,000
93026942MIXING TAP COIFFEUR1,000
95027475STRAIGHT BASS CONN BEN M12X17 D122,000
97055513SHOWER ATTACHMENT + HOSE + SUPPORT1,000
97049204WHITE SHOWER HOSE L2000/NOT AVAILABLE1,000
99067804SHOWER DRAIN PIPE D20X70 BENT NM1,000
100041563BILGE PUMP 12V 13L MN+FILTER ((CE)1,000
102342700HOSE BARB MALE BRASS 20X27 D191,000
104056111BRONZED BRASS COUPLING 45 ELBO271,000
106026068VALVE BALL 14 T 20X27 BR W SS HANDLE1,000
108070294THRU HULL BR 20X27 3 41,000
110530752SWITCH APR WATERPROOF PUSH1,000
112027611SS BUNG GRILL D851,000
411054487WATER PUMP 12V 7A 12 5L MN 2_5B1,000
412058471EXPANSION VESSEL FOR WATER ITT 1L1,000
415049789WATER PUMP FILTER ULTRAMAX1,000
502015203PLUG WATER DECK FILLER/NOT AVAILABLE1,000
531058008MIXING SET WATER HEATER THERMOSTAT1,000
700406000PUMP FILTER1,000
800055461RESISTANCE WATER HEATER 220V QUICK1,000
801057616QUICK WATER HEATER THERMOSTAT 110 220V1,000

Q&A Beneteau 42 CC

Question:

I am trying to replace the aft water tank on my Beneteau 42 center cockpit sailboat, 2003 model. Beneteau part number 054860 – Description: WATER TANK 243L 1442

Answer:

The Water tanks are no longer available from Beneteau.  Read the notes below.  The Murray Yacht Sales Team is a fan of Option 4 – Bladder tanks.

The original OEM manufacturer for Beneteau’s rotationally molded polyethylene water tanks during this era (including the 243L / ~64-gallon aft tank) was Rototec (an Italian rotational molding company that supplied OEM poly tanks across Europe for Beneteau and Jeanneau).

Because exact-fit OEM replacements from Beneteau or Rototec are discontinued, finding a drop-in replacement requires alternate sourcing options:

1. Custom Fabricated HDPE Tank (Most Common Solution)

Most Beneteau owners replacing non-standard or discontinued hull-conforming poly tanks contract a custom marine tank fabricator. They build custom tanks out of 3/8″ or 1/2″ FDA-approved High-Density Polyethylene (HDPE) welded sheets to match your compartment dimensions or the old tank’s exact footprint.

  • Leading Fabricators:
  • Triple M Plastic Products (Maine, US) – Frequently builds replacement tanks specifically for Beneteau models using original dimensions or owner templates.
  • Custom Marine Fuel / Plastic Fabrication companies (e.g., Ronco Plastics custom line, Tank Depot, or local marine plastic welders).

2. Off-the-Shelf Roto-Molded Tanks (Ronco Plastics)

Ronco Plastics produces over 400 standard rotationally molded FDA-approved polyethylene marine tanks. While they may not have the exact complex bevels of the Beneteau hull liner, you can usually find a rectangular or wedge-shaped tank in their catalog (e.g., 50–60 gallon capacity) that fits within the aft locker footprint. You specify where Ronco spin-welds the hose fittings (1.5″ inlet, 1/2″ output, 5/8″ vent) to match your boat’s plumbing.

3. Surplus Marine Suppliers

Check stock with specialized marine liquidators that buy leftover inventory directly from the Beneteau facility in Marion, SC, or French yards:

  • Great Lakes Skipper: Frequently carries original OEM Beneteau/Rototec water tanks.
  • Beneteau Spare Parts / Spare Parts Dealers: Companies like Ward’s Marine or Rigging Shoppe occasionally have old-stock OEM tanks in warehouse inventory.

4. Flexible Water Bladders

If access to get a rigid 243L tank back into the aft berth/locker requires cutting joinery, many owners opt for a high-duty flexible potable water bladder (e.g., Vetus or Plastimo 200L–220L bladders). These conform to the space without structural modification.

Verification

Measure the height, width, depth, and hatch opening dimensions of your aft tank compartment before ordering or requesting quotes.

Tips, Hacks & Murray Yacht Sales Team Recommendations
