Sails
| Vessel Model: BENETEAU 34 Quote ID: 001-5693 Date: 10/21/2026 | Beneteau Oceanis 34 Rig Dimensions: I: 42.25 | J: 13.68 | IC: 42.25 | JC: 13.68P: 39.50 | E: 12.75 |
1. Cruise Package
Mainsail – PBF-Furling (Cross cut Dacron, coastal cruising sails)
Fabric: Challenge 7.38 Fastnet | Area: 264.40 Sq Feet
| Description | Retail Price |
|---|---|
| Cruise Mainsail Total | $2,446.80 |
Headsail (Cross cut Dacron, coastal cruising sails)
Fabric: 6.38 Challenge Atlantic | LP%: 106% | Area: 303.83 Sq Feet
| Component / Option | Retail Price |
|---|---|
| Base Headsail | $2,332.58 |
| U.V. Suncover Stock Color | $239.73 |
| Multi-Track Foam Luff | $165.63 |
| GoreTex Thread on U.V. Cover | $153.68 |
| Cruise Headsail Subtotal | $2,891.62 |
2. Performance Cruising Package
Perf. Cruising Mainsail – PBF-Furling (Tri-Radial constructed, offshore cruising)
Fabric: 8.88 Contender Warp Tech | Area: 264.40 Sq Feet
| Description | Retail Price |
|---|---|
| Performance Cruising Mainsail Total | $3,230.91 |
Perf. Cruising Headsail (Tri-Radial constructed, offshore cruising)
Fabric: 6.88 Contender Warp Tech | LP%: 106% | Area: 303.83 Sq Feet
| Component / Option | Retail Price |
|---|---|
| Base Headsail | $2,947.12 |
| U.V. Suncover Stock Color | $239.73 |
| Multi-Track Foam Luff | $165.63 |
| GoreTex Thread on U.V. Cover | $153.68 |
| Performance Cruising Headsail Subtotal | $3,506.16 |
3. Quote Summary Comparison
| Package / Sail | Retail Price |
|---|---|
| Cruise Mainsail – PBF-Furling | $2,446.80 |
| Cruise Headsail (with options) | $2,891.62 |
| Total Cruise Package | $5,338.42 |
| Performance Cruising Mainsail – PBF-Furling | $3,230.91 |
| Performance Cruising Headsail (with options) | $3,506.16 |
| Total Performance Cruising Package | $6,737.07 |
Notes: Prices subject to applicable taxes and shipping fees where applicable.

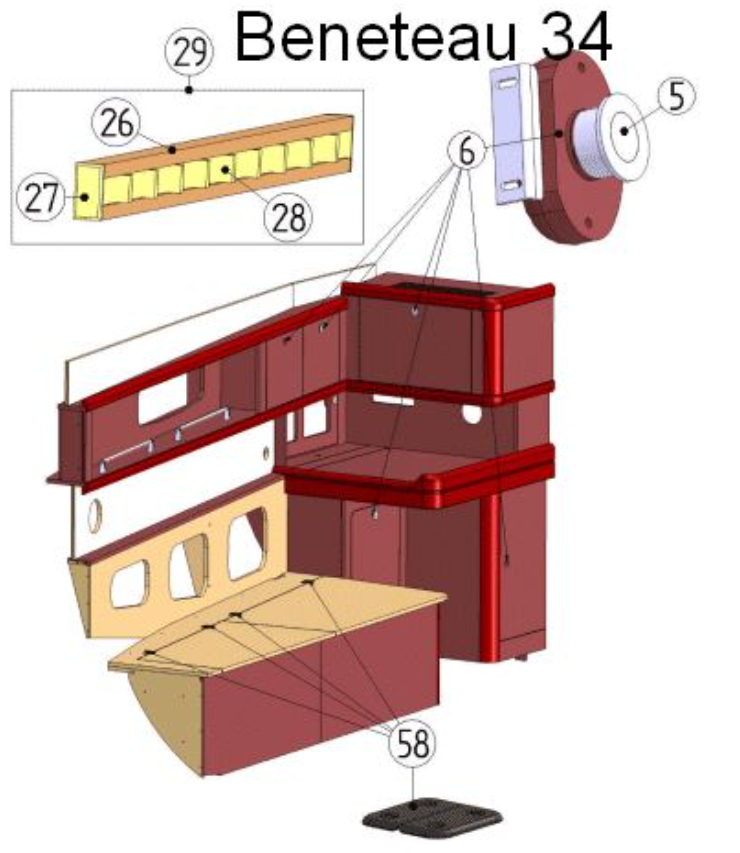

| Description | Qty | Part Number | Retail Price/unit | |
| 5 | Button P. Lock EP15 Round (Replacing 073474) | 15 | 085699 | |
| 6 | Catch Push Lock Mechanism NM (Replacing 073475) | 14 | 125868 | |
| 26 | Curtain Rod Plastic Whilte 5ml D3 | 2 | 048377 | |
| 27 | Curtain Rod End (Replacing 006022) | 2 | 955270 | |
| 28 | Curtain Slider (Replacing 006021) | 23 | 205920 | |
| 29 | Curtain Rod L2390 Equip. | 1 | 081467 | |

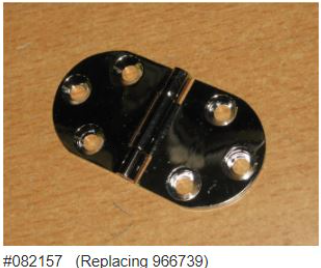

| 58 | Hinge (Replacing 966739) | 4 | 082157 |

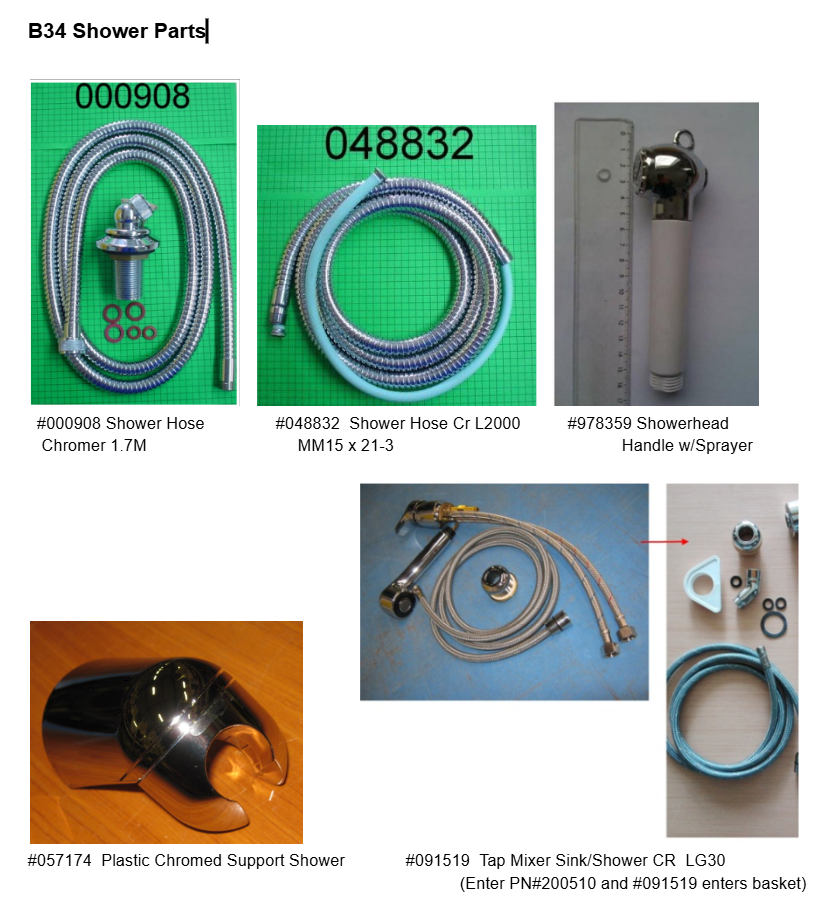

| B34 Shower Parts | |||
| Description | Qty | Part Number | Price + Shipping (2026) |

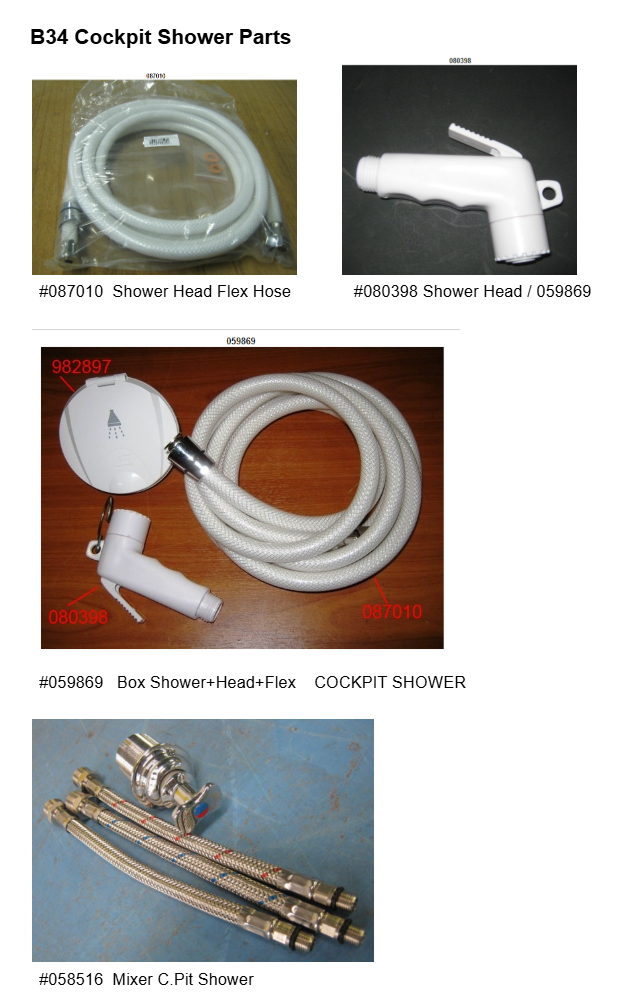

| Shower Head & Flex Hose | 1 | 087010 | |
| Shower Head | 1 | 080398 | |
| Box Shower + Head + Flex Cockpit Shower | 1 | 059869 | |
| Mixer Cockpit Shower | 1 | 058516 | |
| Shower Hose Chromer 1.7M | 1 | 000908 | |
| Shower Hose Cr L2000 MM15x21-3 | 1 | 048832 | |
| Showerhead Handle w/ Handle | 1 | 978359 | |
| Plastic Chromed Support Shower | 1 | 057174 | |
| Tap Mixer Sink/Shower CR LG30 | 1 | 091519 | |
Above Photo: ELECT.PANEL 12V T2B SRE BLK / Beneteau Part # 079726 (OBSOLETE PART)
| Discription | Part Number | Price + Shipping (2026) | |
| ELECT.PANEL 12V T2B SRE BLK | 079726 | OBSOLETE PART | |
The image displays the original Beneteau Oceanis 34 Scheiber-built electrical panel. Ten+ years is a lifetime in the electronics world, and Scheiber no longer produces this part.
2026 Update / Obsolete Part
Part Identification & Breakdown
Because the original Scheiber-built electrical panel (Part #079726, described as EL.PANEL 12V T2B BLACK SRE) is no longer manufactured as a complete drop-in assembly, replacement depends heavily on which part of the panel has actually failed.
This panel is composed of three discrete systems:
- The Scheiber LCD Multimeter / Tank & Battery Monitor (the center display and buttons).
- The 12V DC Switchgear & Thermal Breakers (the round rocker switches and push-button reset breakers).
- The Pre-Cut Aluminum Faceplate.
Depending on your failure point, choose between the following replacement paths:
Option 1: Component-Level Replacement (Most Cost-Effective)
In nearly all cases, the entire metal fascia does not need replacing—only a specific internal sub-assembly does.
- If the LCD screen or tank/battery monitoring failed:
- The center module is a Scheiber Navigraph / Multimeter display unit.
- Marine electrical specialists (such as Marinebeam or Deep Blue Marine) supply individual replacement modules, replacement PCBs (e.g., Scheiber Navigraph PCB), or refurbished display heads that bolt directly into that rectangular cutout.
- If switches or breakers failed:
- The switches are standard marine 12V round rocker switches (snap-in, SPST/SPDT depending on the circuit).
- The circuit protection uses standard push-to-reset thermal breakers (ETA / Carling style). Both are commodity parts available from marine supply stores (Defender, West Marine, Marinebeam).
Option 2: Sourcing the OEM Successor Part Number
Beneteau replaced several older obsolete sub-assemblies under new consolidated group inventory codes:
- Beneteau Group Part #999900 is cataloged under the exact same spec line: EL.PANEL 12V T2B BLACK SRE.
- Contact an authorized Beneteau dealer or parts distributor with your boat’s Hull Identification Number (HIN) to verify if #999900 or an updated Scheiber equivalent (such as the Scheiber 41.65762 family) is available as an assembled unit.
Above Photo: ELECT.PANEL 12V T2B SRE BLK / Beneteau Part # 999900 (Note Differences)
| Discription | Part Number | Price + Shipping (2026) | |
| ELECT.PANEL 12V T2B SRE BLK | 999900 | $2,360.00 | |
Option 3: Full Custom Modernization (Drop-In Retrofit)
If you want to eliminate the aging Scheiber system entirely:
- Custom CNC / Acrylic Retrofit Panel:
- Companies like Front Panel Express, New Wire Marine, or Paneltronics can mill a black anodized aluminum or textured marine acrylic plate matching the exact outer dimensions and mounting screw hole pattern of the Oceanis 34 opening.
- Modular Components:
- DC Distribution: Standard Blue Sea Systems circuit breakers or Contura rockers.
- Tank & Battery Monitor: A standalone modern NMEA 2000 or self-contained smart monitor (e.g., Victron BMV-712 / Cerbo GX with touchscreen, or KUS / Wema gauges) installed in place of the Scheiber screen. This provides significantly better accuracy and readily available spare parts going forward.

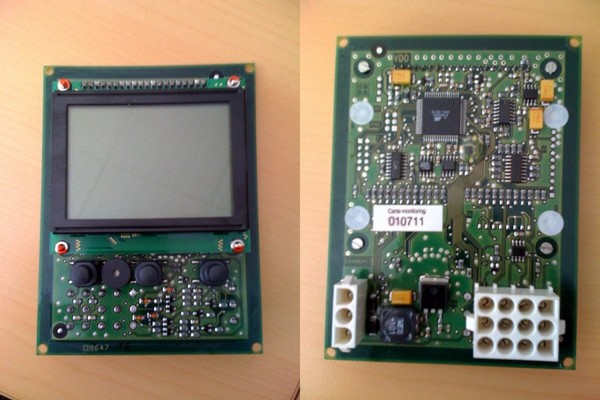

Above Photo: VDO CONTROL PANEL H20-FUEL-ELE / Beneteau Part # 081667 (Obsolete Part)
The image displays the front and back circuit board assembly for a marine tank monitoring display control unit, identified as VDO Control Panel H2O-Fuel-Elec (Part #081667). Ten+ years is a lifetime in the electronics world, and VDO no longer produces this part.
2026 Update / Obsolete Part
Part Identification & Breakdown
- Part Name: VDO Monitoring Control Panel / Board (Water / Fuel / Electrical / Battery Monitoring)
- OEM Part Number: 081667 (Printed Sticker / System Ref: 010711)
- Manufacturer: VDO (Continental Automotive Group / Marine Instrumentation)
- Status: Obsolete / Discontinued
Component Overview
- Front View (Left):
- Monochrome LCD Screen: Graphical display used to report tank levels (freshwater, blackwater, greywater, fuel) and battery voltage levels.
- Control Interface: Integrated push-buttons for cycling through menus and acknowledging alarms or warnings.
- Piezo Buzzer: Audio alert for high/low tank levels or low voltage thresholds.
- Rear View (Right):
- Main Microcontroller: Microchip IC handling signal processing from resistive/voltage tank senders and voltage sensors.
- Power & Signal Connectors:
- 3-pin Terminal Block: Primary DC power supply/ground line input.
- 10-pin (2×5) Molex/Pin Header Connector: Multi-pin connector interfacing with tank sensors, battery monitoring leads, and external alarms.
- Label Sticker: Reads Carte monitoring 010711 (French/European VDO internal board assembly designation).
Recommended Replacement & Service Options
Since Part #081667 is obsolete, options for repair or replacement include:
- Board Repair / Refurbishment:
- Common failures on these units include degraded capacitors, failed LCD backlight elements, or cracked solder joints around the power and Molex pin connectors. Specialist marine electronics repair shops can often re-solder or replace individual SMD components.
- Direct Retrofit / Modern Alternatives:
- VDO AcquaLink / OceanLink Series: Modern VDO digital gauges designed with NMEA 2000 support.
- KUS / Wema Multi-Tank Monitors: Standalone digital tank/voltage display systems compatible with standard 10–180 Ω or 240–33 Ω resistive senders.
- Victron Energy Cerbo GX + GX Touch: If converting to a modern NMEA 2000 / CAN-bus network, Victron systems integrate fluid level inputs and battery monitoring onto a single touchscreen.
