Please identify the parts that you need from the drawings below.
Beneteau 473 General Parts

| Location | Description | Qty | Part Number | Price (not inc shipping) |

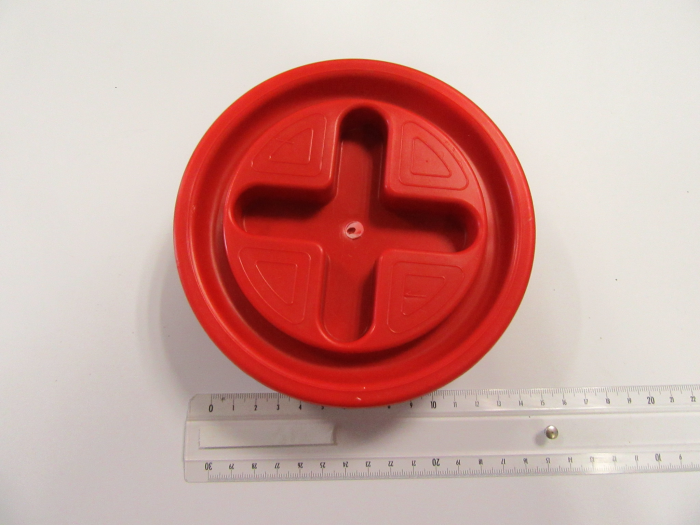

| Water Tank Cap | 056802 | $40.00 | ||

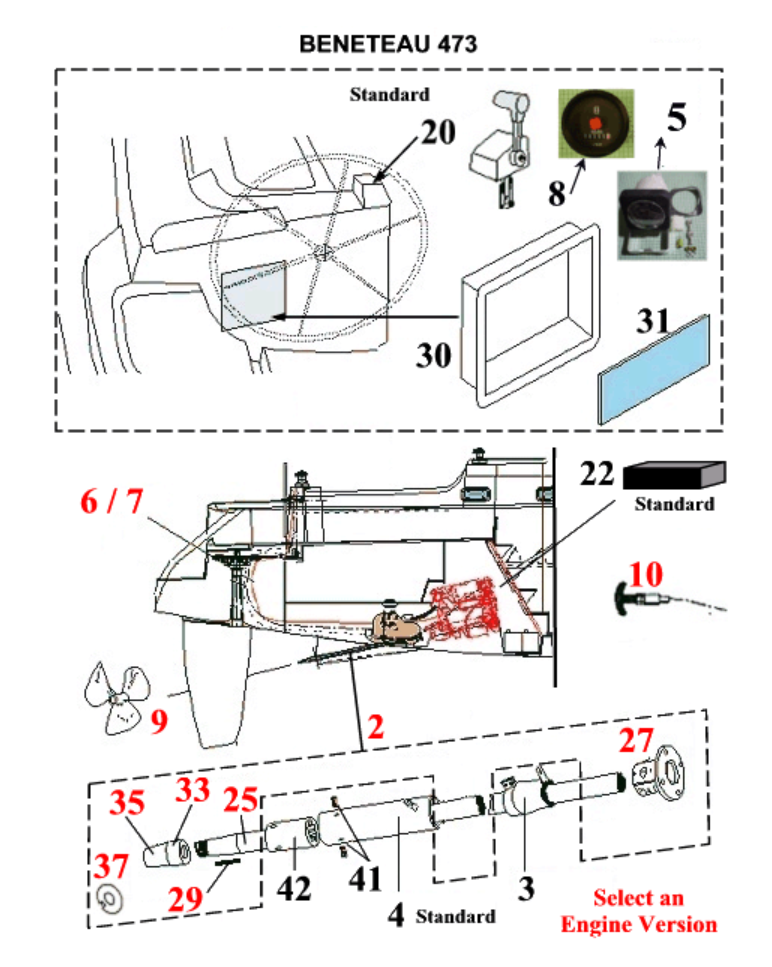

PROPULSION SOUNDPROOFING


| Location | Description | Qty Per Boat | Part Number | Price (not inc shipping) |

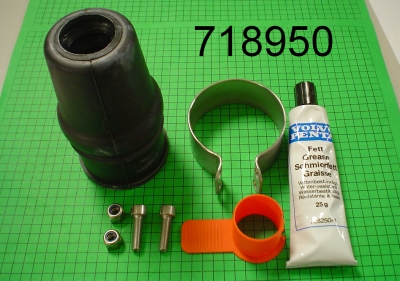

| 3 | SEAL PROP SHAFT VOLVO D30 #828 | 1 | 718950 | $147.00 |
| 41 | SCREW M MACH NYLON 6 X 8 | 2 | 937200 | $2.82 (each) |
| 42 | CUTLASS BEARING 30X40X100+L R | 1 | 037330 | $64.00 |
The Beneteau part number 937200 corresponds to a standard M6 x 8mm nylon machine screw (commonly documented in Beneteau parts manuals as “SCREW M MACH NYLON 6 X 8”). On many Beneteau sailboats, these are used as nylon set screws for cutlass bearings where standard steel could cause galvanic corrosion or damage threads.
- Thread Size: M6 (Metric 6mm)
- Length: 8mm
- Material: Nylon (Polyamide), which prevents corrosion in marine environments
- Drive/Head Type: Commonly found as slotted pan head (DIN 85) or standard set screw configurations.
Beneteau part number 937200 is not currently in stock in the US (9/2026) and can be found at many local hardware or fastener stores.






| Stanchion L610 D22 INT STDG – 130401 (Replacing 049702) | Stanchion Base D22 Wood Rail – 1129230 (Replacing 049044) |



SCREW M MACH SOCKET CAP 6X16 – 927450
| Pelican Hook ABI 1554 – 299935 | SCREW M MACH SOCKET CAP 6X16 – 927450 |
| Location | Description | Qty Per Boat | Part Number | Price +shipping (2026) |
| 1 | Bow Rail | 1 | 052828 | $2,376.00 |
| 7 | Stern Rail 14463 PORT | 1 | 052169 | $2,175.00 |
| 9 | Stern Rail 14463 STBD | 1 | 052170 | $2,175.00 |
| 13 | Stanchion L610 D22 INT STDG | 8 | 130401 (Replacing 049702) | $43.00 |
| 17 | Stanchion Base D22 Wood Rail | 16 | 1129230 (Replacing 049044) | $30.00 |
| 19 | Stanchion DBL.Gate L610-280N°3 | 130398 (Replacing 043159) | $76.00 | |
| 21 | LOCK-NUT SS M14 NYLON INSERT | 956369 (Replacing 455864) | $2.00 | |
| 23 | PLATE ALU 70X70X5 D15 FOR Stanchion | 046897 | recomend sourcing locally | |
| 25 | Hook Pelican ABI 1554 | 299935 | $47.00 | |
| 27 | Screw M Mach Scck Cap 6X25 | 27 | 927510 | $0.50 |
Beneteau parts descriptions combine French/English marine terminology and metric dimensions.
Breakdown of “Stanchion L610 D22 INT STDG“
- Stanchion: The vertical lifeline post / upright.
- L610: Length / Height = 610 mm (approx. 24 inches), measured from the base to the top of the post.
- D22: Diameter = 22 mm outer diameter (OD) tubing (standard for older metric Beneteau bases and railings, approx. 7/8″).
- INT: Intermediate / Intermédiaire. Indicates that the stanchion is equipped with an intermediate lifeline hole/ferrule (for a double-lifeline setup with both an upper and a lower/mid wire).
- STDG: Standard / Standard Gage (or Standard Grade). Beneteau catalog shorthand to differentiate base/standard production fittings from heavy-duty, angled, or special custom/gate variations.
Associated Beneteau Part Numbers
- Part # 130401 (often replaces older part # 030481).

| Price +shipping (2026) | ||||
| 17 | SHROUD ROLLER D45 L1830 | 113115 | $88.00 |


| Location | Description | Qty Per Boat | Part Number | Price +shipping (2026) |
| 1 | Diesel Deck Fill | see Q&A below | ||
| 1 | PLASTIC SS DECK FILLER Diesel | Replacement for original part 208465 | $40.00 | |
| 20 | TANK FUEL ROTO 237L STBD 18470 | Optional Starboard Fuel Tank | 048942 | $1,948.00 |
| 23 | TANK FUEL ROTO 237L PORT 18470 | 1 | 048941 | $1,622.00 |
Beneteau 473 Q & A
Question:
I need a replacement Diesel Deck Fill for my 2005 Beneteau 473; please help me identify the part I need.
Answer:
Your 2005 Beneteau 473 original equipment deck fills were manufactured in France by Amiot (now owned by Goiot). Note: Over the past 20+ years, a previous owner may have replaced this part with different specifications.
Factory OEM Replacement Option
If you want a drop-in replacement using the original mounting holes:
- Original Manufacturer: Amiot / Goiot
- OEM Material: Clear Anodized Cast Aluminum or Black Composite (Amiot)
- Standard Hose Diameter: 2″ (55mm) ID Hose or 1-1/2″ (37mm) ID Hose (Note: Beneteau used 50mm / ~2″ hose on most large 40ft+ diesel fills of that era, but double-check your existing hose inner diameter before ordering).
- Sourcing OEM Parts: We are not aware of a direct-replacement Amiot deck fill.
Standard Aftermarket Replacement Options
Beneteau replacement Part #208465, 8-point star socket in the center, designed to be turned using a standard winch handle or deck filler star key. The red ribbed body indicates it connects to a diesel fuel fill line, with an attached black splash-guard / anti-lost grid (lanyard retainer) designed to sit inside the fill pipe; This deck filler assembly uses a combination of marine-grade materials built for UV, corrosion, and chemical resistance:
Anti-Lost Lanyard Retainer (Grid): Black plastic / composite polymer mesh designed to sit inside the fill pipe.see photo below:
Outer Ring/Flange (Top Rim): Polished 316L Stainless Steel (Inox) for maximum marine corrosion resistance and flush-mount aesthetics.
Inner Cap Insert & Threaded Body: Glass-reinforced polyamide (nylon) / heavy-duty polymer resin, molded in black and red for chemical resistance against diesel fuel.

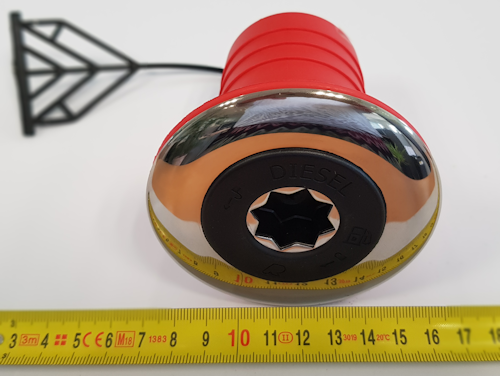

Photo Below: Part #208465

If you prefer upgrading to 316 Stainless Steel (which won’t oxidize like cast aluminum or fade like plastic/composite):
- Sea-Dog / Perko / Whitecap 316 Stainless Steel Deck Fill
- Size needed: Matches your existing hose diameter (typically 1-1/2″ or 2″ ID).
- Flange Size: Standard 3-1/2″ overall diameter with 3 countersunk mounting holes.
- Installation Tip: Aftermarket fittings often have a slightly different screw-hole circle pattern compared to European Amiot patterns. You will likely need to plug the existing screw holes with epoxy and re-drill new pilot holes.
Key Verification Steps Before Ordering
- Hose Inside Diameter (ID): Measure the interior diameter of your existing diesel fuel hose attached beneath the deck (either 1-1/2″ or 2″).
- Cap Key Type: The factory Amiot diesel cap uses a standard winch handle (11/16″ square/octagonal) or winch handle key to open. If your cap opens using a 2-prong spanner key instead, a previous owner may have already swapped it out.
- Flange Bolt Pattern: Measure center-to-center distance between screw holes to confirm if an OEM Amiot unit will align without modification.
