2028 Hargrave 125' (38.10 m) Anemos Signature
Fort Lauderdale, Florida, United States

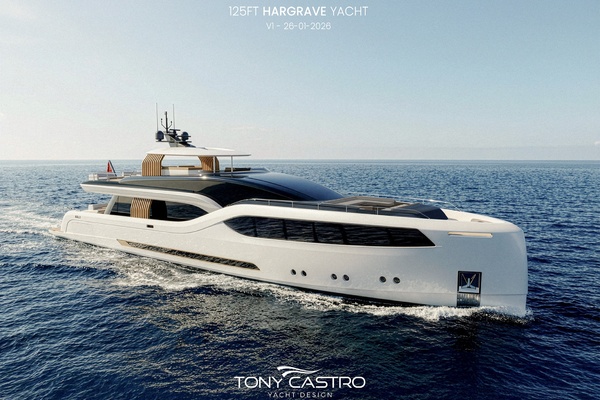

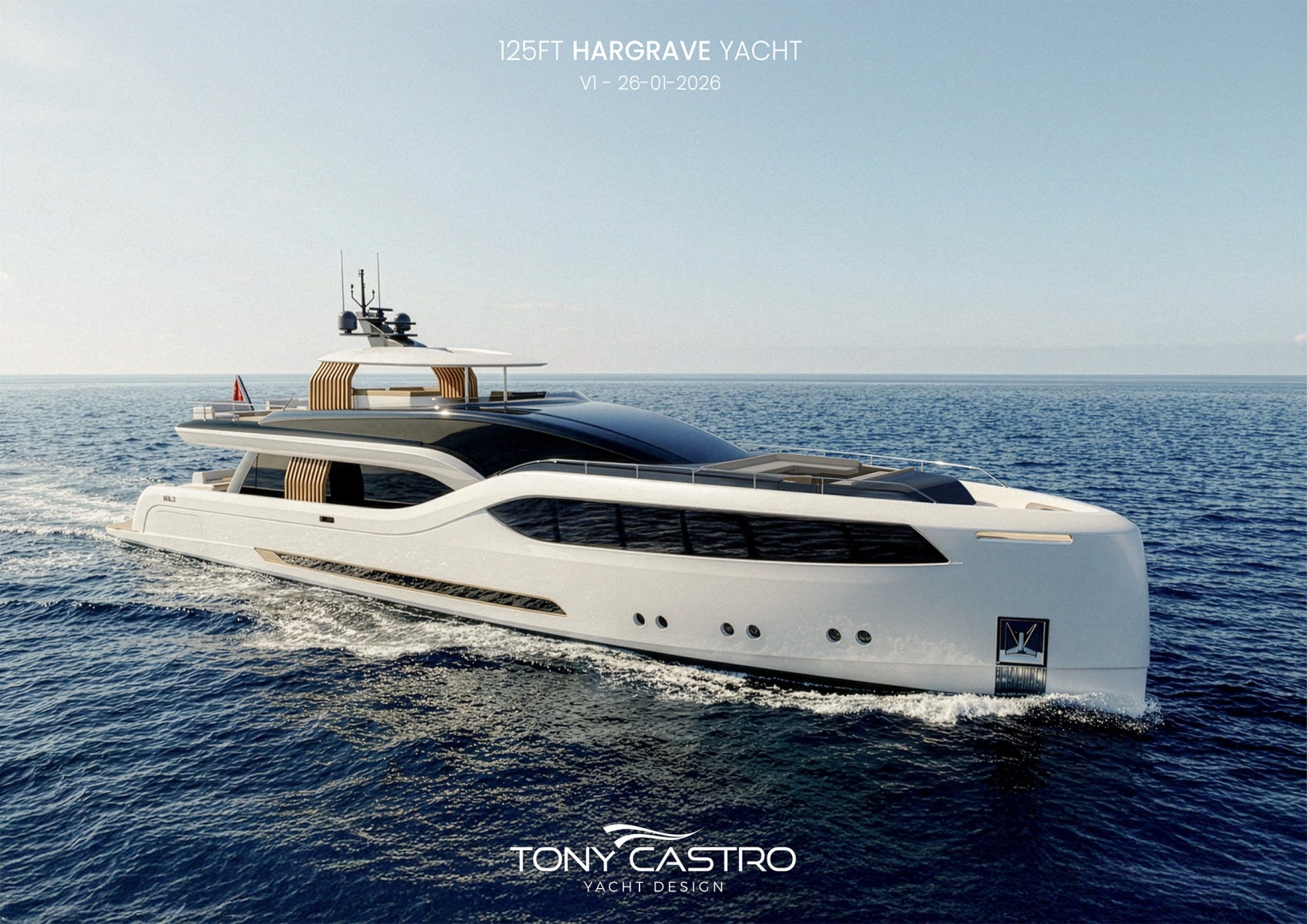

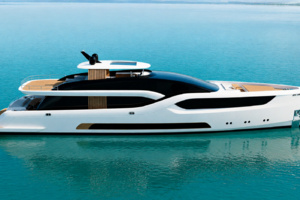

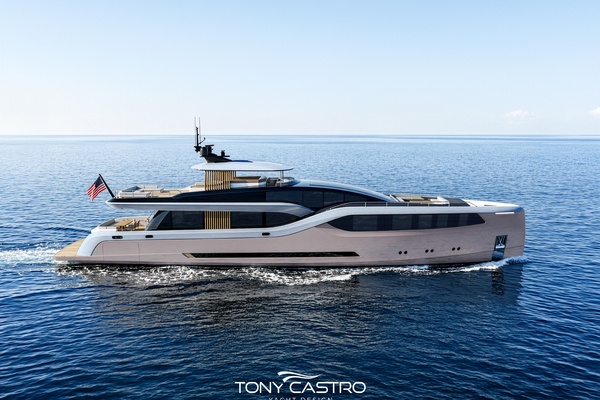

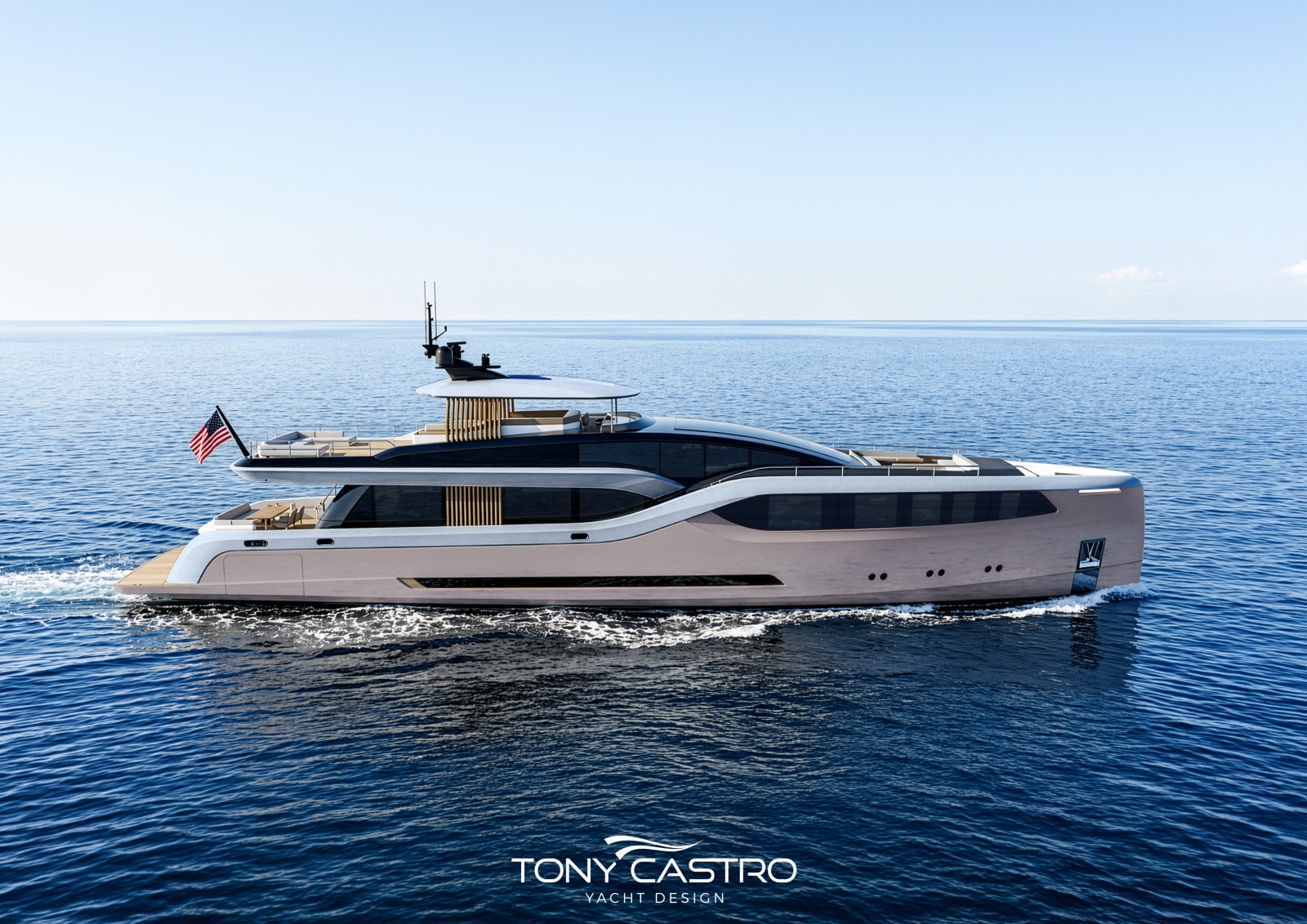

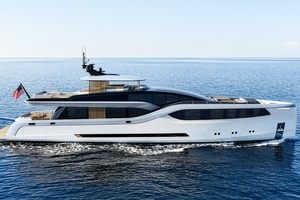

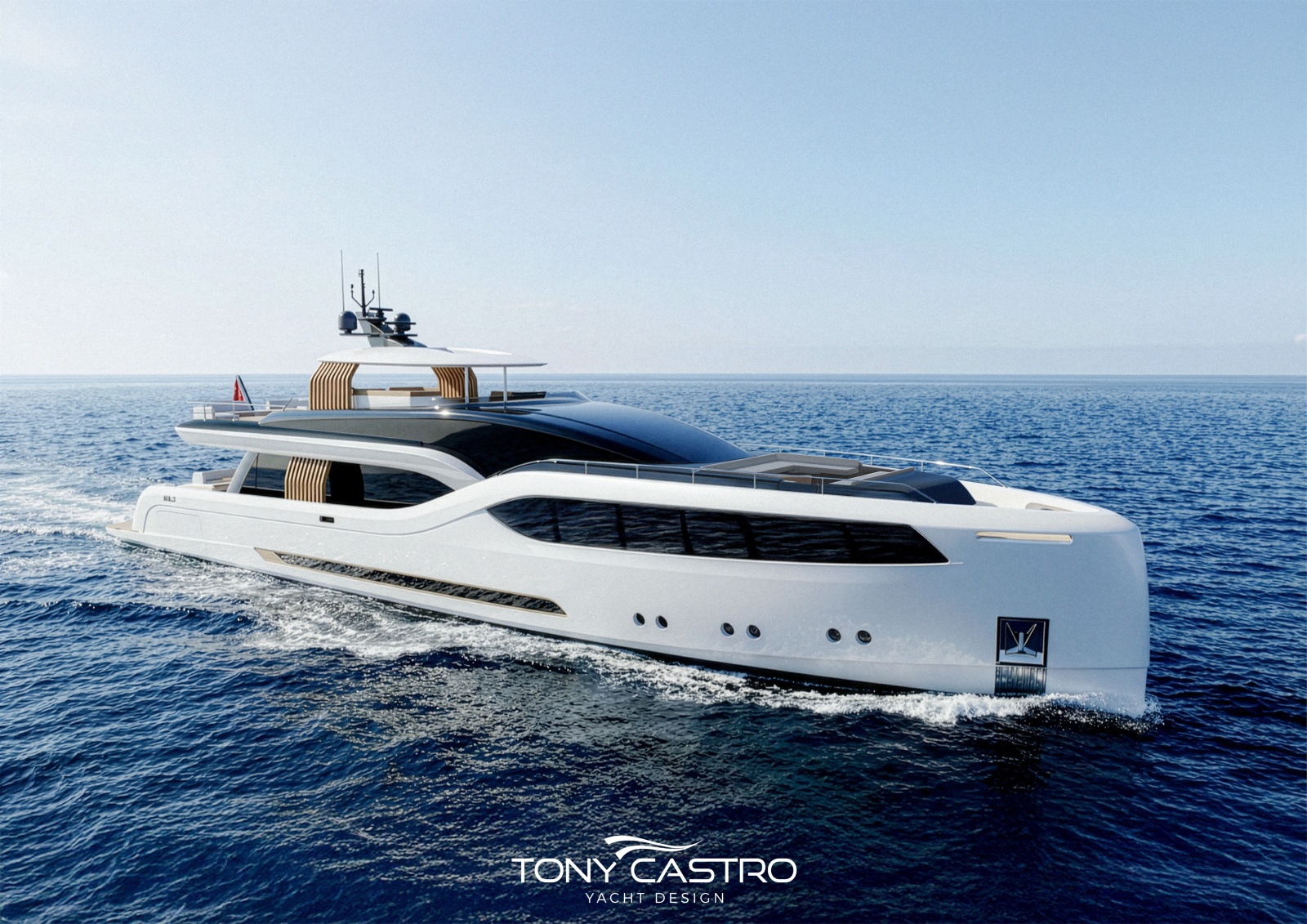

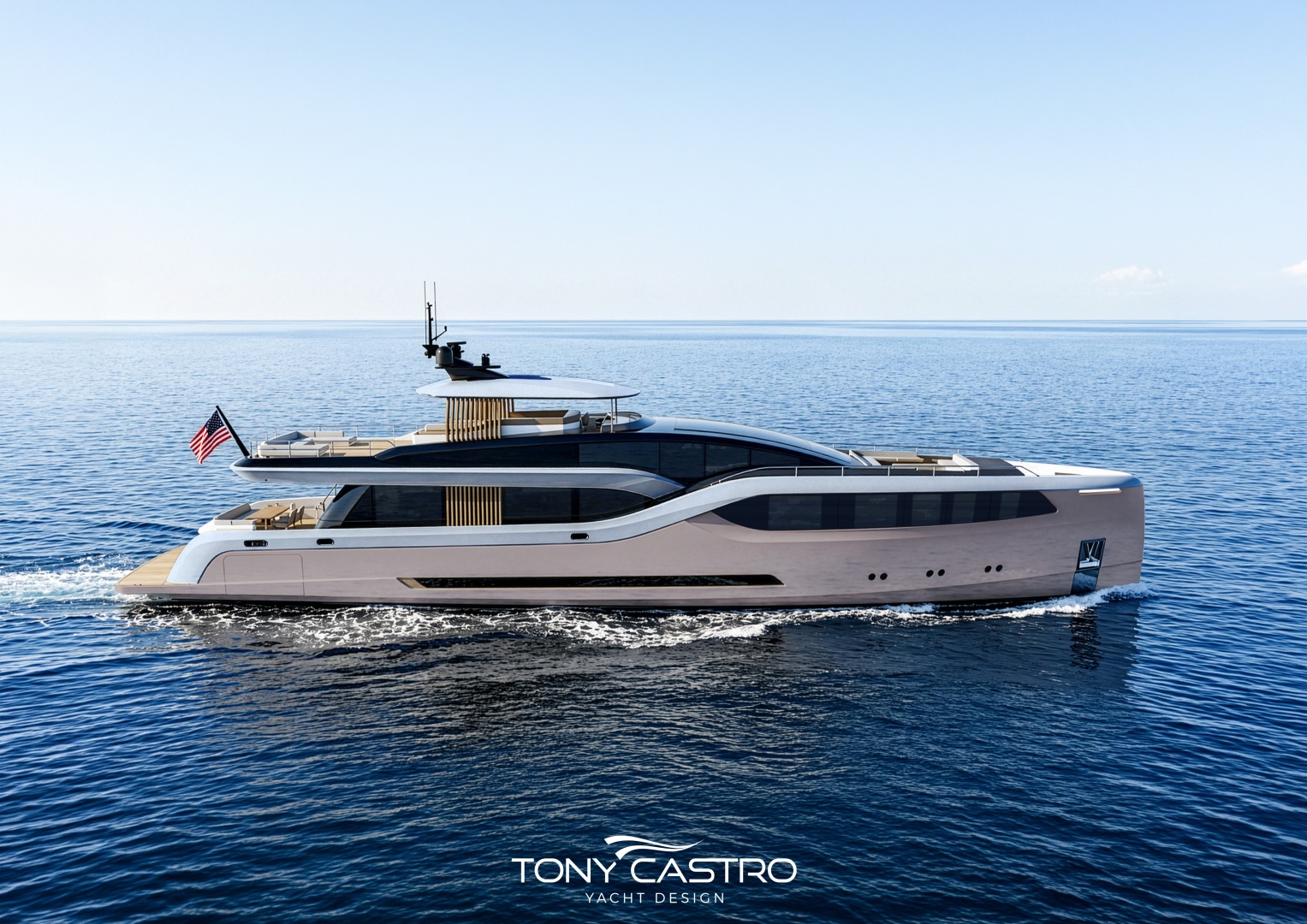

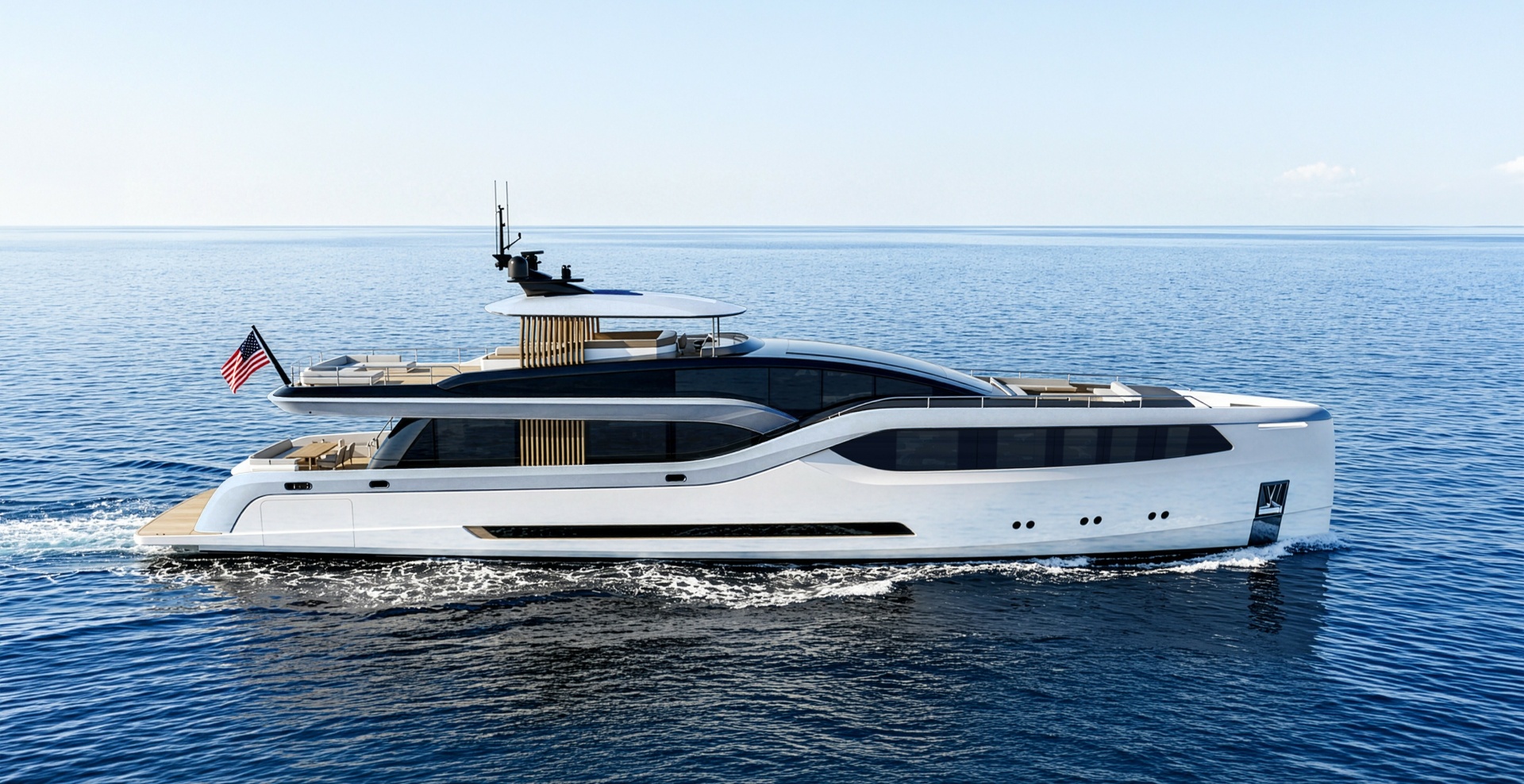

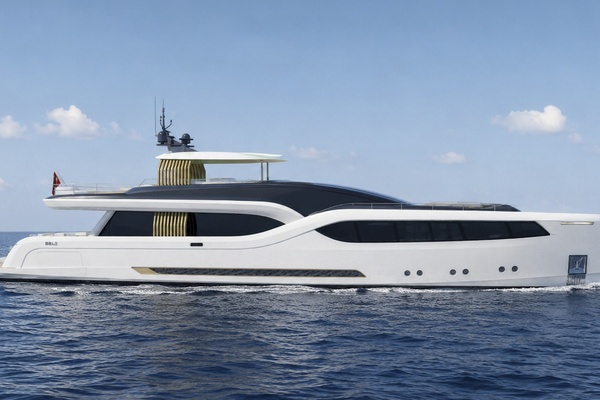

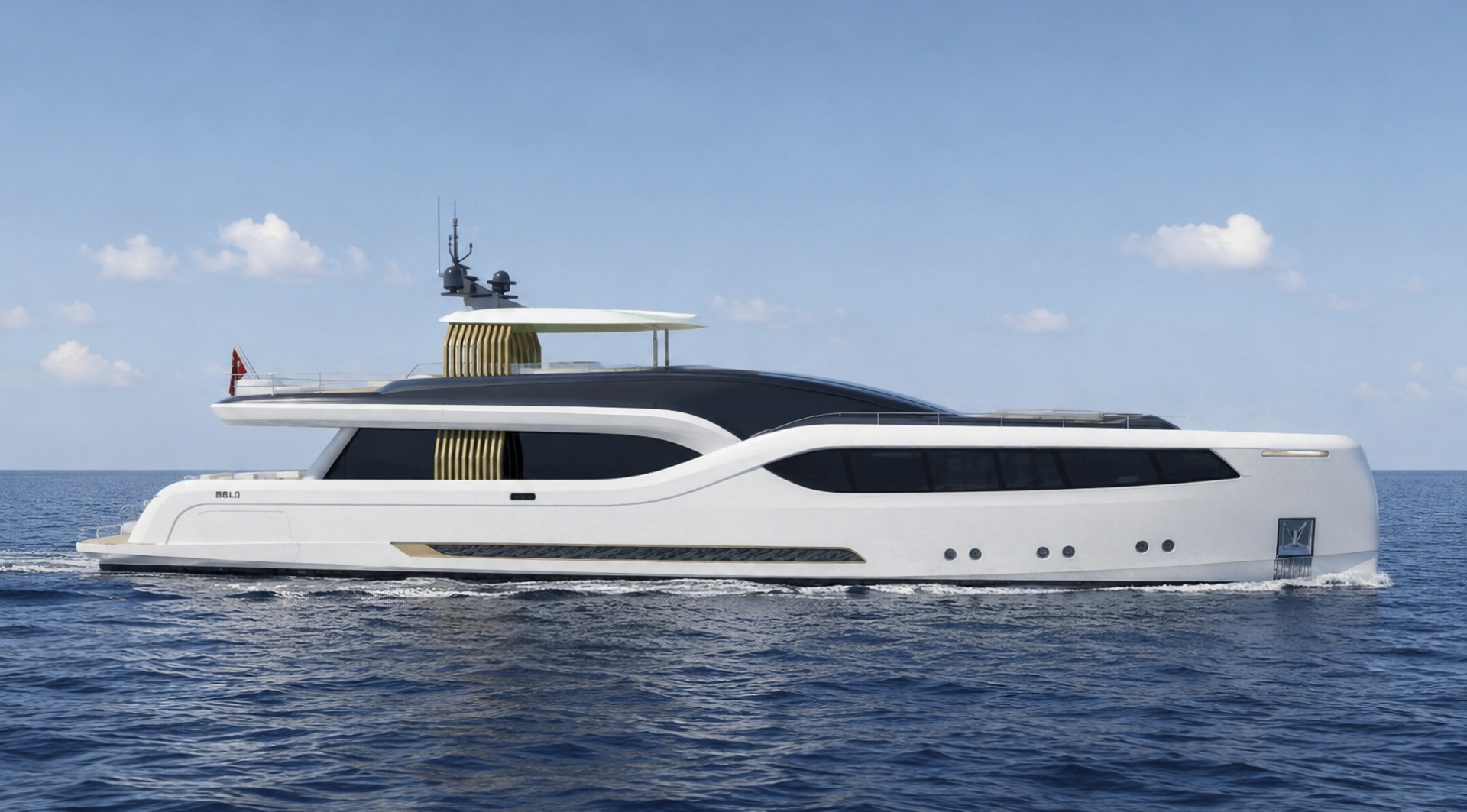

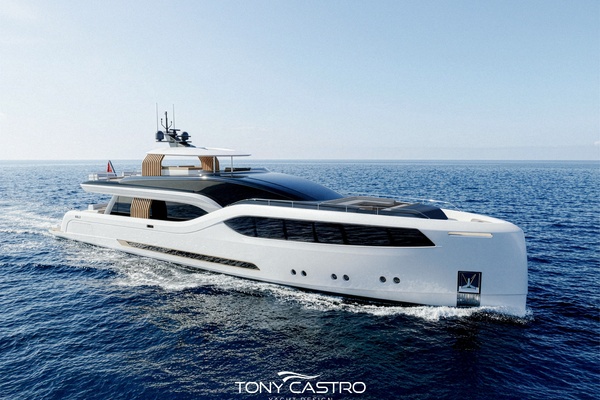

Anemos Signature RPH by Tony Castro Design UK
Anemos Signature shares the same DNA as Hargrave’s E-Series Tri-Deck yachts. Hargrave has collaborated with four independent design studios to develop exterior and interior designs. SIZE RANGE 100ft(30m) -115(35m) -122 Ft (37m)
- Motor Yachts
- Power
- New
- Diesel
- Fiberglass Hull
- HIN/IMO: hsy123456789
| FEATURES: |
|---|
| Side Garage for Tender and Jetski | Bow Garage for 1 Jetski |
| Choose between 16 Exterior and Interior Combinations |
| Bow and Stern Thruster |
| Speeds up to 25kts |
| Successful E Series Hull and Engineering |
| Notable Upgrades: |
| Toys: Tender and 2 Jetskis |
Description
Anemos Signature shares the same DNA as Hargrave’s E-Series Tri-Deck yachts, built on the same proven hulls that account for more than 30 E-Series yachts already delivered and in service. The hull form and core engineering below the tank deck are common across both configurations and developed for long-range use.
The general arrangement has been developed in-house by Hargrave Superyachts, establishing clear spatial standards from the outset. Minimum seven-foot ceiling heights, generous cabin volumes, practical circulation, and layouts intended for extended stays onboard are built into the platform before any exterior or interior styling is applied.
Hargrave has collaborated with four independent design studios to develop exterior and interior designs for the Anemos Signature Yachts:
Satura Studio Rome | Tony Castro Yacht Design UK | Edoardo Ridoli Design Milan | Facheris Design Studio Miami
Potential owners may proceed with a complete exterior and interior design from a single studio, select one studio for the exterior and another for the interior, or develop an entirely different styling direction by appointing their own designer. In all cases, the design process remains anchored to Hargrave’s established platform standards and general arrangement logic, ensuring continuity, balance, and buildability regardless of the chosen design path.
Murray Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Hargrave Custom Yachts. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Specifications
HIN/IMO: hsy123456789
LOA: 125' (38.10 Meters)
Type: Power- New
Year: 2028
Beam: 26'
LWL: 123'
Draft Max: 6' 6''
Draft Min: 5' 6''
Cabins: 5
Sleeps: 12
King Berths: 3
Full Beam Master: Yes
On Deck Master: Yes
Heads: 8
Head Room: 7'
Convertibles: 2
Crew Cabins: 4
Captain's Quarters: Yes
Crew Sleeps: 7
Crew Mess: 1
Maximum Speed: 25 Knots
Cruise Speed: 22 Knots
Fuel Type: Diesel
Super Structure Material: Carbon Reinforced fiberglass
Hull Material: Fiberglass
Hull Finish: Alwcraft 2000
Hull Shape: Semi Displacement
Hull Warranty: 10 years
Special Offer: Yes
Concept Boat: Yes
Air Conditioning: Yes
Tower: No
Stabilizers: Zero Speed
Stabilizers Brand: Sleipner / CMC / Naiad
Bow Thruster: Yes
Stern Thruster: Yes
Fuel Tank: 5500 Gallons (20819.76 Liters)
Fresh Water: 1000 Gallons (3785.41 Liters)
Holding Tank: 500 Gallons (1892.71 Liters)
Gross Tonnage: 299
Displacement: 190 tonnes
Dry Weight: 330000
Classification: RINA or ABS
MCA Certified: Yes
Designer: Tony Castro
Interior Designer: Tony Castro
Builder: Hargrave Superyachts
Seating Capacity: 30
Max Passengers: 12
Photos click to view all
Engines
Engine 1
- Engine Make: Caterpillar
- Engine Model: C32
- Engine Type: Inboard
- Drive Type: Direct
- Power HP: 2200.00
- Power KW: 1640.54
- Fuel Type: Diesel
- Engine Location: Port
Engine 2
- Engine Make: Caterpillar
- Engine Model: C32
- Engine Type: Inboard
- Drive Type: Direct
- Power HP: 2200.00
- Power KW: 1640.54
- Fuel Type: Diesel
- Engine Location: Starboard
Generators
Generator 1
- Generator Make: Caterpillar
- Generator Model: C 4.4
- Generator KW: 65.00
- Generator RPM: 1500.00
Generator 2
- Generator Make: Caterpillar
- Generator Model: C 4.4
- Generator KW: 65.00
- Generator RPM: 1500.00
Full Details
Main Specifications
MAIN CHARACTERISTICS
BUILDER: HARGRAVE SUPERYACHTS DIVISION
ACCOMODATION: 10 GUESTS + 7 CREW
CLASSIFICATION: Rina or ABS Pleasure Yachts or Commercial Yachts Compliant
LENGTH OVER ALL: 125 ft/ 38 meters
LENGTH WATERLINE: 123ft / 37 meters
BEAM: 26ft / 7.92 meters
DRAFT: 6.5ft / 1.98 meters
DISPLACEMENT (Light Ship): 150 Tonnes
DISPLACEMENT (Fully loaded): 190 Tonnes
GROSS TONNAGE: 299 GT (Approx.)
SPEED: 25 Knots
PROPULSION
MAIN ENGINES 2 x CAT C32 2200HP @ 2300 Rpm
GEARBOX: ZF3050 SERIES 2,98:1
ENGINE CONTROL: GLENDINING ( 1 main + 2 remote station)
GENERATORS: 2X CAT C4.4 65 KW
SHAFT PROPELLER: CJR (UK) 4,5” MARINEMET 25 Shaft / 5 Blades Class S Propellers
ELECTRIC SYSTEM: 120 / 208 VAC 3P 60Hz Main Service / 24VDC Service and Engine Start System/
ASEA 65 kVA Shore Power Converter/ 2x Glendinning CM9 Cable Master
TANK CAPACITY
Diesel Oil : 20800 Lt / 5.500 Gallons
Fresh Water: 4.000 Lt / 1.000 Gallons
Black Water : 2.000 Lt / 500 Gallons
GreyWater : 2.700 Lt / 700 Gallons
BUILD / CONSTRUCTION
HULL / SUPERSTRUCTURE: CARBON RAINFORCED E-GLASS - EPOXY COMPOSITE SANDWICH
OPEN DECK : HANDLAID BURMESE / MYANMAR TEAK OR NON SKID PAINT
PAINT SYSTEM: AWLGRIP
MASTER EQUIPMENT LIST
Airhorn: Kahlenberg
Anchor winch and Capstans: (x2 )Maxwell VWC6000 Hyd. Windlass, VC4000 Electric Capstans
Windscreen Wipers: (x4) Speich
Alarm & Monitoring system: Wago / Advantech
Anchor and Chain: (x2) 200kg 316L S.S. Pool Anchor, (x2) 110m (360 ft) 14mm Grade 3 Studlink Chain
Audio / Video :RTI
Batteries and chargers: Victron /
Service : 10x 220Ah Gel + 2x 24/100A Charger
Emergency : 4x 220Ah Gel + 1x 24/80A Charger
Radio : 2x 130Ah Gel + 1x 24/30A Charger
ME and Genset: 8x 240Ah AGM + 2x 24/40A Charger
Emergency Fire Pumps : 4x 220Ah Gel + 1x 24/80A Charger
ER Ventilation: Delta T System
Bow thrusters: Sleipner Bow thruster
Stabilizer: Sleipner at Rest Stabilizer with Power Pack
Fuel oil filters: Racor
HVAC: TECHNICOLD
Chiller assembly (x4) 60,000 BTU or 2 x 120,000 BTU
Steering System :Wills Ridley Hydraulic Steering
Insulation: Unifrax B15 Engine room and B0 Galley insulation Rockwool Thermal cabin insulation
Navigation and communication equipment: GARMIN and FURUNO
Pumps: Head Hunter and FEIT
Sewage treatment: Headhunter
Toilet system: Headhunter
Water heaters: TORRID 2x 50 Gallons 6kW
DECK EQUIPMENT
SWIM LADDER: 316L Stainles Steel
CRANE: Hydraulic Deck Crane 1000
PASARELLA: OPACMARE or EQUAL 15ft Hydraulic Gangway
HANDRAILS: 316L S.Steel
PANTOGRAPH DOORS: (x2) Pantograph Door
SLIDING DOORS: Electric Operated main saloon door
WATERTIGHT DOORS AND DECK HATCHES: Watertight Deck Hatches and Engine room WT Fire Doors
AFT BEACH SHELL DOOR: Hydraulic Actuator Operated Carbon Reiforced Composite Watertight Door
SIDE GARAGE SHELL DOOR: Hydraulic Actuator Operated Carbon Reiforced Composite Watertight Door
SAFETY EQUIPMENT
LIFE RAFTS: 2 x 12 Persons
FIRE PROTECTION: FM200 Engine Room Fire Protection
FIRE & GENERAL ALARM SYSTEM: HAES UK
Tony Castro Yacht Design UK

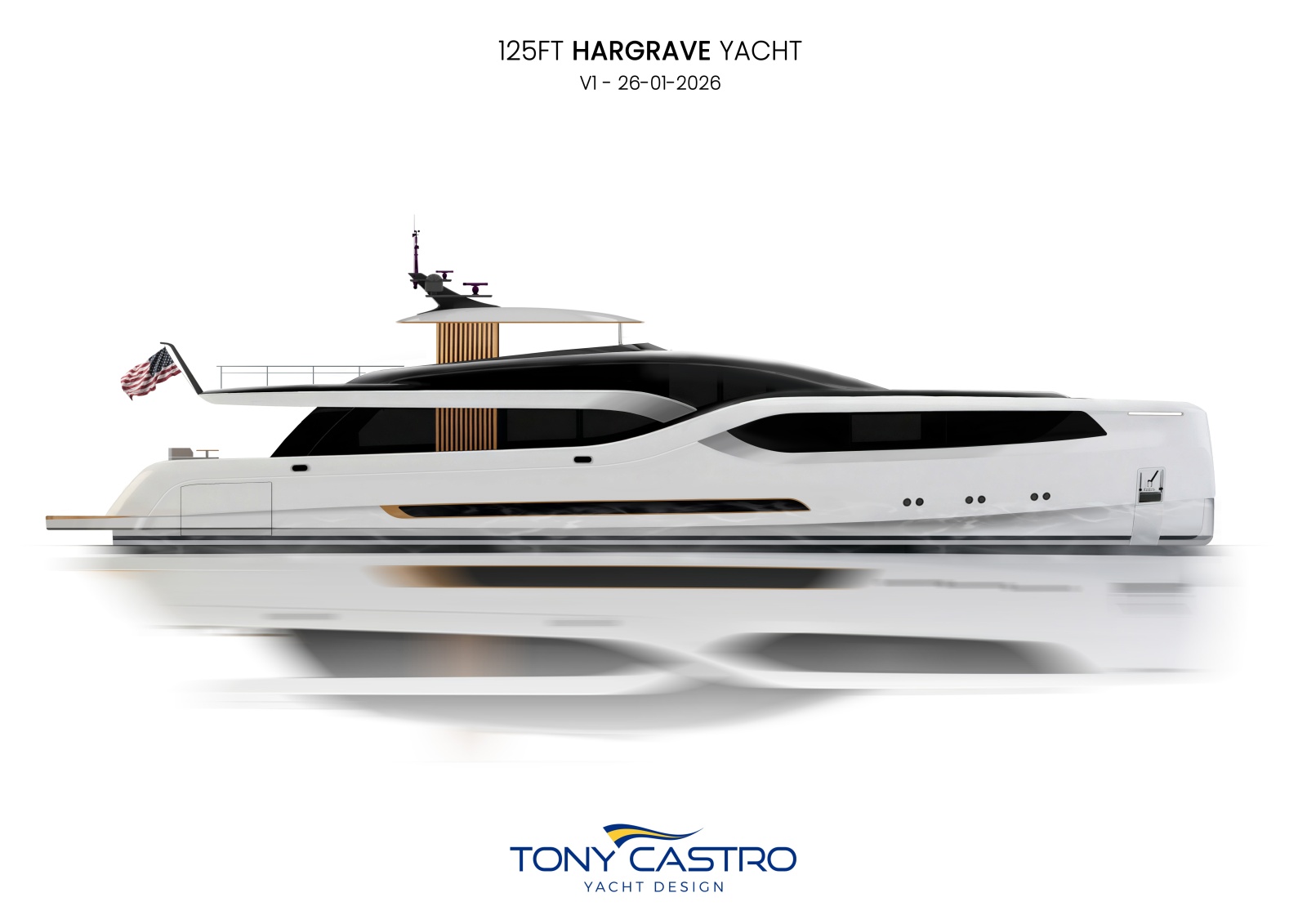

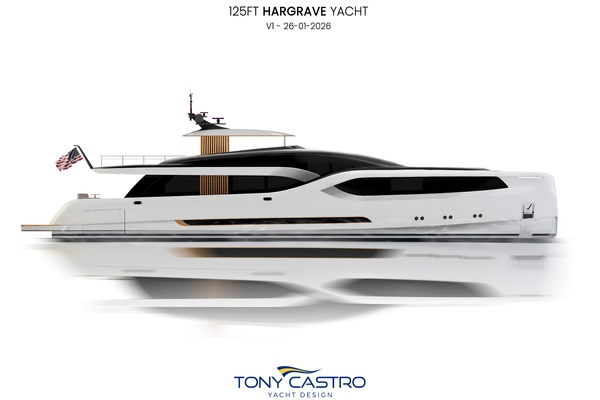

Tony Castro founded his studio in Hamble in the early 1980s after completing his BSc in Naval Architecture at Strathclyde and his MSc in Aero/Hydrodynamics at Glasgow. Over 45 years and more than 500 designs, the studio has earned five World Championships and partnerships with Royal Huisman, Oceanco, and Jongert. Today, more than 13,500 yachts built to Castro's designs are sailing the world — from the SB20 sportsboat to 60-metre-plus superyachts built at Lurssen. In 1984 he designed one of the first vessels to carry the superyacht designation — a detail that places the studio at the origin of the industry as we know it today. When the Anemos platform program was presented to Tony Castro Yacht Design, the studio took the brief in one direction - away from convention. X-style window lines on the profile, and a light, airy interior with brass accents and natural wood where the market expects dark and heavy.
