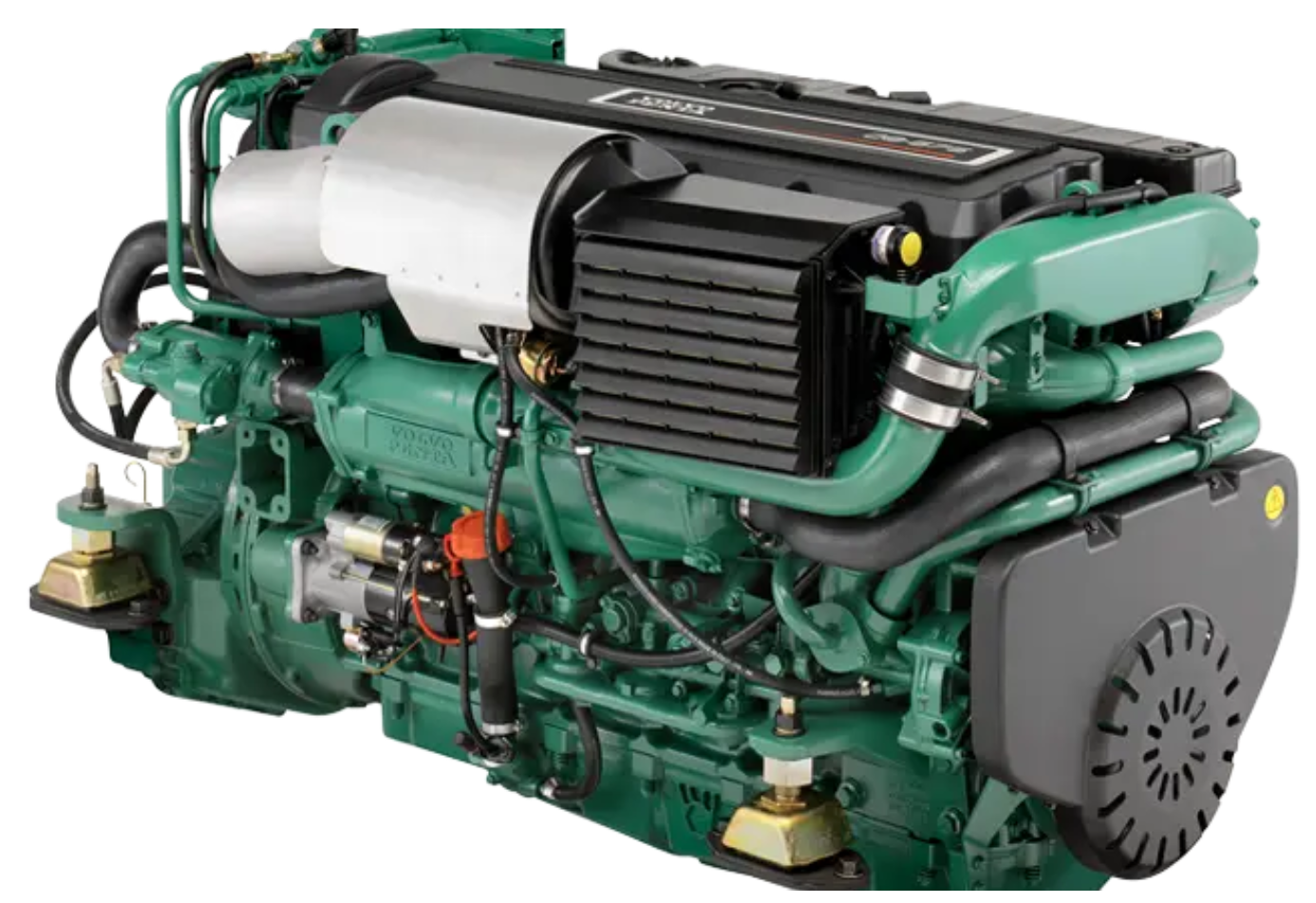

Overview: Volvo Penta D9 Marine Diesel
The Volvo Penta D9 is an in-line 6-cylinder, 9.4-liter heavy-duty marine diesel engine designed for performance motor yachts, sportfishers, and commercial craft. Utilizing unit injectors, four valves per cylinder, a twin-entry turbocharger, and Volvo’s Electronic Vessel Control (EVC) system, the D9 delivers high low-end torque, clean combustion, and smooth acceleration across its power band (typically rated between 425 hp and 575 hp).
Engine Architecture: In-line 6-Cylinder, 4-Stroke
Displacement: 9.4 Liters (574 cu. in.)
Aspiration: Turbocharged with Aftercooler (Compressor on select models)
Fuel System: Electronically controlled unit injectors
Dry Weight: ~2,360 lbs (1,070 kg)
Engine Model Decoding Guide
Understanding marine engine designations makes identifying power output, series, and service configurations straightforward.
Volvo Penta D Series Decoding (e.g., D9-575)
- D: Diesel engine.
- 9: Engine displacement rounded to liters (9.4L).
- 575: Metric crankshaft horsepower rating (e.g., 425, 500, or 575 hp).
Common Maintenance Parts & Cross-Reference Table
To keep your Volvo Penta D9 operating at peak performance, adhere to standard 100-hour or annual service intervals. Below is a cross-reference guide for routine replacement items:
| Service Item | Volvo Penta OEM Part # | Sierra Part # | Industry Cross-Reference |
| Engine Oil Filter | 21707133 | 18-7901 | Baldwin B7299 / Donaldson P550425 |
| Secondary Fuel Filter (Spin-On) | 21707132 | 18-7902 | Baldwin BF7922 / Fleetguard FF5507 |
| Primary Fuel Filter Element (Racor) | 3825133 | 18-7919 | Racor 2010TM-OR (10 Micron) |
| Raw Water Impeller Kit | 21951360 / 3841697 | 18-3061 | Jabsco 17937-0001-P |
| Air Filter Element | 3818541 | 18-9310 | Donaldson P608543 |
| Serpentine Drive Belt | 3809886 | N/A | Gates K080550HD |
| Engine Zinc Anode | 3858399 | 18-6000 | Tecnoseal 01103 |
| Coolant (VCS Yellow Ready Mix) | 22567314 (5L) | N/A | OAT Technology Equivalent |
Specialist Insight & Recommendations
EVC Diagnostics: Keep electrical connections clean and greased with dielectric compound. Sensor faults in the EVC harness are the most frequent cause of false alarm codes.
Cooling Loop: Inspect the raw water heat exchanger bundle every 2–3 years or 500 hours. Marine growth and scale build-up significantly reduce cooling efficiency under heavy loads.
Oil Specs: Always use VDS-3 or VDS-4 rated 15W-40 heavy-duty diesel oil to protect the unit injectors and overhead camshaft assemblies.
