Please identify the parts that you need from the drawings below.
Murray Yacht Sales Team Recommendations – Link to Recommended Items for your Vessel

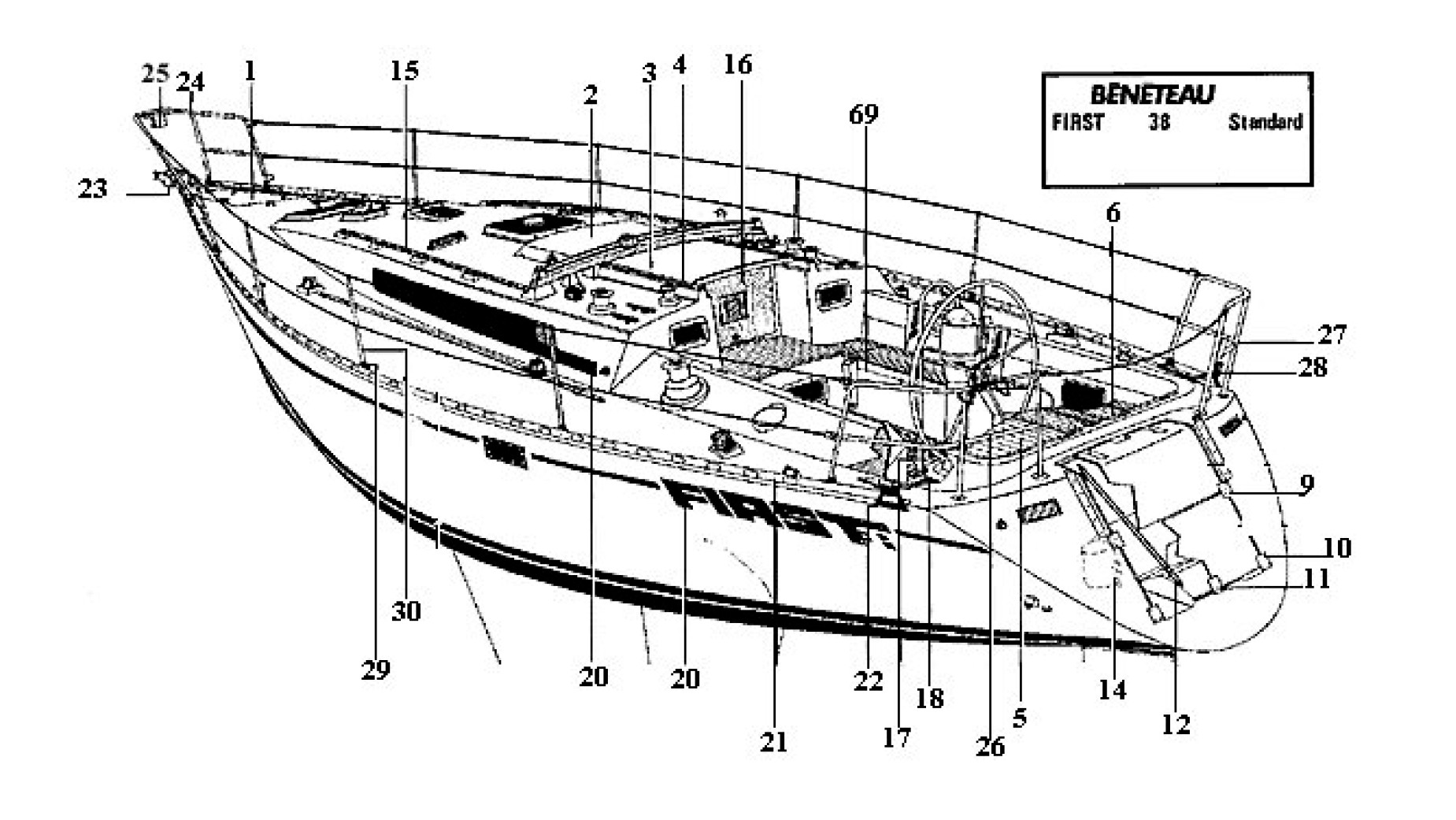

Hull & Deck Part Drawing

First 38 (Moorings 38) Q&Q
Question:

Please identfiy this halyard exit (or halyard exit plate/sheave box liner) for my Moorings 38
Answer:
This part is an Isomat Snap-in Halyard Exit Plate (also used on Sparcraft spars and booms).
It installs into a pre-cut oblong slot on the mast or boom to guide internal lines (halyards, reef lines, pole lifts) through the spar wall while preventing chafe and edge damage.
Identifying Details & Dimensions
Isomat produced these molded black plastic snap-in exit plates in two primary sizes:
- Isomat NG2 Snap-in Exit Plate (Part # NG2-7):
- Visible dimensions: 412in1516in (115mm34mm)
- Mast cutout size: 414in1in (112mm26mm)
- Line capacity: Fits rope up to 58in (16mm) diameter
- (This larger version is the standard fit for 35–40 ft production boats like the Beneteau Moorings 38 / First series).
- Isomat NG1 Snap-in Exit Plate (Part # NG1-7):
- Visible dimensions: 312in1in (87mm25mm)
- Mast cutout size: 278in1316in (74mm20mm)
- Line capacity: Fits rope up to 716in (12mm) diameter
Sourcing & Replacement Notes
- Material Fatigue: In the second photo, the bottom retaining tab/tine is cracked and flexing outward. Because these parts are subjected to UV breakdown and salt exposure, snapping an old plate back in usually snaps the tabs off completely.
- Replacements: Original molded plastic replacements are stocked by spar suppliers specializing in archival French rigging (such as Rig-Rite under part number NG2-7 or NG1-7).
- Stainless Upgrade: If you want a permanent replacement that will not degrade in the sun, Isomat/Sparcraft also manufactures formed stainless steel exit plates (such as NG2-8S or NG2-8SF) that fasten into the same general slot using a blind rivet or screws.
