Please identify the parts that you need from the drawings below.

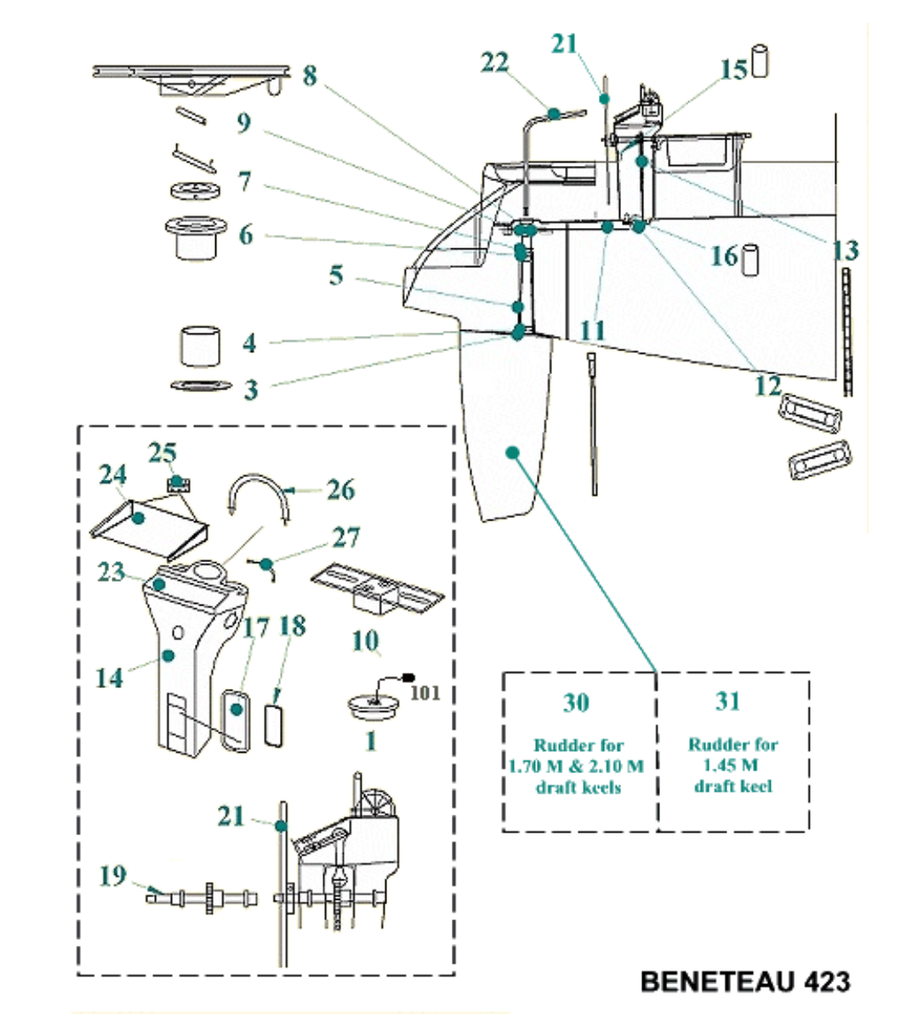

| Description | Qty | Part Number | Price + Shipping (2026) |
| | | | |
| 14 | PEDESTAL O311/361 LOWER PART | 1 | 043865 (OBSOLETE PART) | |

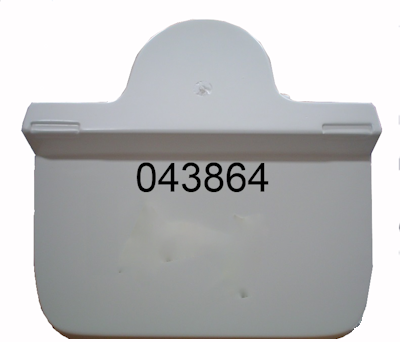

| 23 | PEDESTAL O311/361 UPPER PART | 1 | 043864 | $524.00 |
| 24 | | 1 | | |
| 25 | | 1 | | |
| 26 | HANDRAIL D25 W/O LIGHT MOUNT | 1 | 021453 (Replacing 111284) | $422.00 |

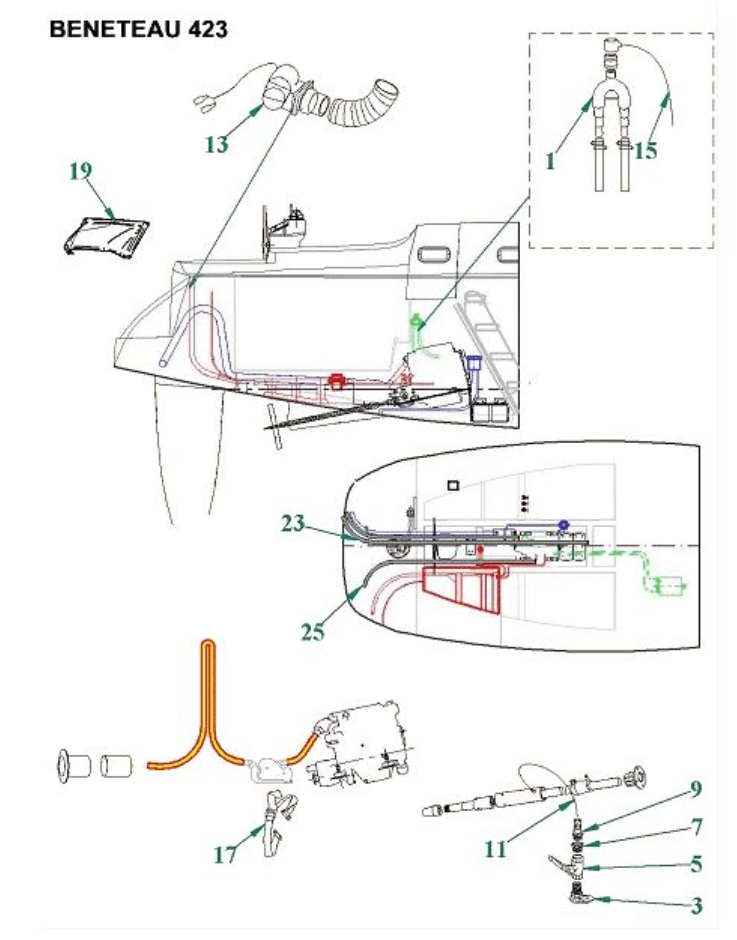

| Description | Qty | Part Number | Price + Shipping (2026) |
| | | | |
| 1 | Valve Antisyphon Vetus Airvent | 1 | 026541 | |
| 3 | Thru Hull with Strainer 1/2″ (replacing 640000) | 1 | 070466 | |
| 5 | Valve 2W 1/4T FF1/2 Brass NM (Replacing 026067) | 1 | 146720 | |
| 7 | Bushing Brass 1/2 MBSPX3/8FBSP | 1 | 739950 | |
| 9 | Brass STR.Grooved End Piece M1 | 1 | 048358 | |
| 11 | Hose RW 3/8″ | 1 | 112071 | |
| 13 | Blower 12v 135CFM D75 2.9A | 1 | 113227 | |
| 15 | Hose FW 3/8 CLR Reinf | 1 | 112074 | |
| 17 | Strap L1000 Black Complete NM (Replacing 062178) | 1 | 076364 | |
| 19 | Vent Cover Kit Thermo 430X200 | 1 | 064175 | |
| 23 | Hose Vent 3″ Eng. Room | 1 | 112049 | |
| 25 | Hose Vent 3″ Eng. Room | 1 | 112049 | |
| Description | Qty | Part Number |

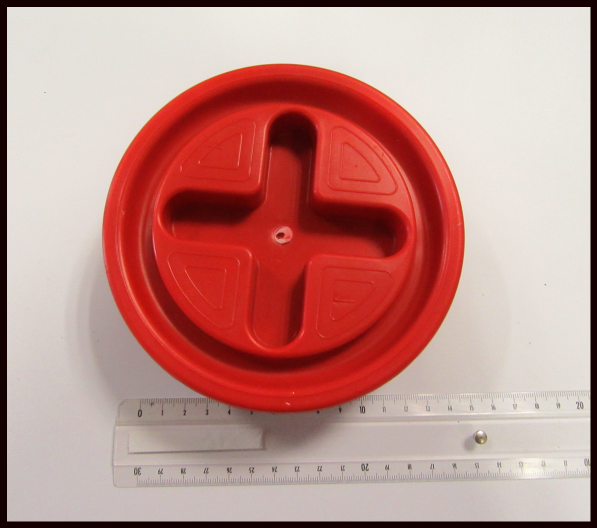

| Water Tank Cap / Red / | 2 per boat | 056802 |
| | |
