Please identify the parts that you need from the drawings below.
The Murray Yacht Sales Team has been an award-winning Beneteau dealer for over 30 years. We know the Beneteau models well and are happy to assist you or direct you to the solution.
In 2022, Beneteau increased the number of spare parts stocked in the United States and ready for immediate delivery.

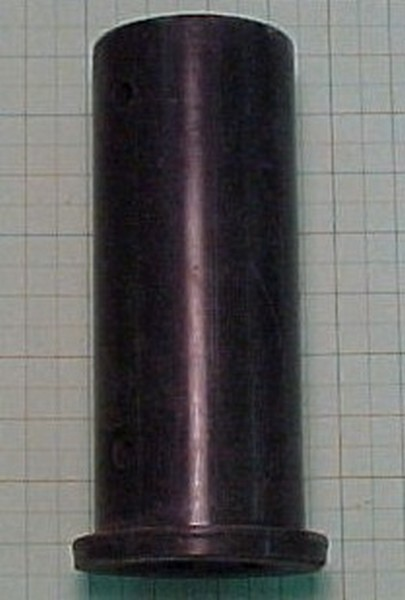

Cutlass Bearing
| Description | Qty | Part Number | |
| Cutlass Bearing 24x40x100+ L R | 1 | 059320 | |
| Screw M Mach Nylon 6×8 | 1 | 937200 |

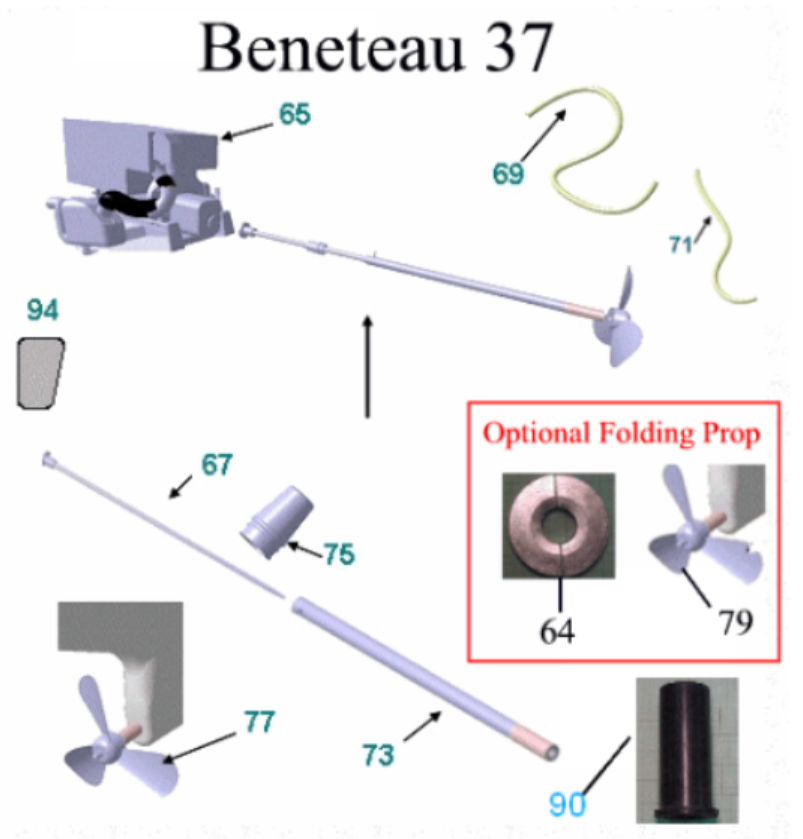

| B37 Propulsion Soundproofing Drawing 1 of 2 | ||||
| Description | Qty | Part Number | Version | |
| 64 | Anode Zinc Donut D25 Shaft | 1 | 042500 | Standard Version |
| 65 | Engine Yan. 3YM30 KM2P 80A | 1 | 460483 | YE Yanmar 3YM30 21KW(29HP) |
| 67 | Prop Shaft Assy D25 L1425 Con | 1 | 043580 | YE Yanmar 3YM30 21KW(29HP) |
| 69 | Cable Control 18Ft Glendinning (Hull 1 -47) | 1 | 112657 | YE Yanmar 3YM30 21KW(29HP) |
| 69 | Cable Control 18Ft Glendinning (Hull 47 – ) | 1 | 112657 | YE Yanmar 3YM30 21KW(29HP) |
| 71 | Cable Control 20 Ft Glendinning (Hull 1 – 47) | 1 | 112658 | YE Yanmar 3YM30 21KW(29HP) |
| 71 | Cable Control 20 Ft Glendinning (Hull 48 – ) | 1 | 112658 | YE Yanmar 3YM30 21KW(29HP) |
| 73 | Stern tube Expoxy 25×43 L1000+P | 1 | 067900 | YE Yanmar 3YM30 21KW(29HP) |
| 75 | Seal Prop Shaft Volvo D25 #828 | 1 | 718940 | YE Yanmar 3YM30 21KW(29HP) |
| 77 | Prop 3 BL 17×12 RH25 51% ZF | 1 | 080166 | Standard Version |
| 79 | Prop 3 BL FOLD 16×12 RH25 FOF | 1 | 067827 | Standard Version |
| 90 | Cutlass Bearing 25x40x100+L /r (Hull 1 – 5) | 1 | 059320 | Standard Version |
| 90 | Screw M Mach Nylon 6×8 (Hull 1 – 5) | 1 | 937200 | Standard Version |
