The Caterpillar 3406 marine diesel engine series has powered commercial workboats, offshore sportfishing yachts, and long-range cruising vessels for decades. Built on a 14.6-liter inline six-cylinder platform, the 3406 earned a reputation for durability, torque, and long service life in continuous-duty applications.
The later 3406E variant introduced electronic fuel management and higher horsepower ratings, marking a significant evolution from the earlier mechanically injected 3406 models. Together, these engines represent one of the most respected high-horsepower inline six-cylinder marine diesels ever built.

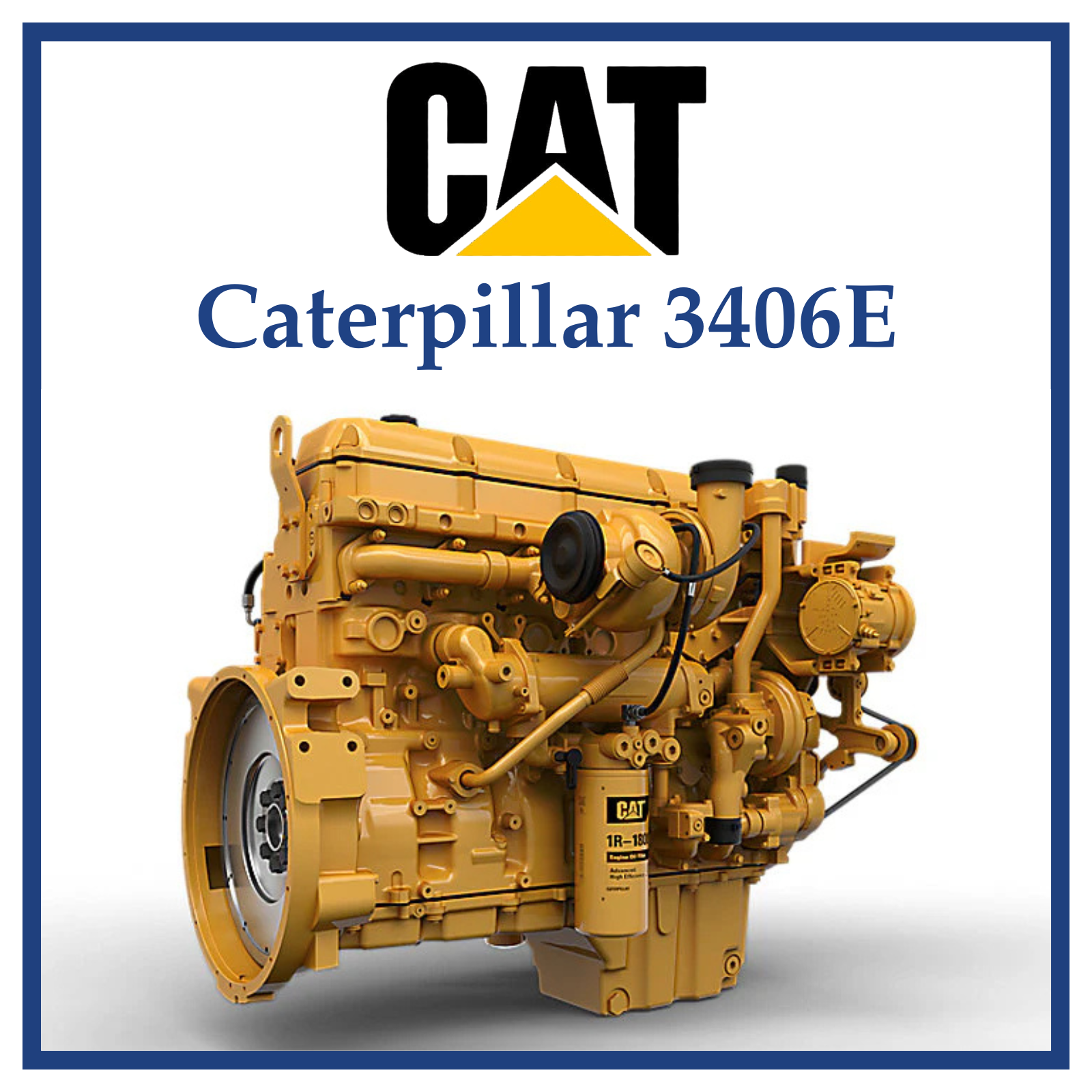

Key Facts & Specifications: Caterpillar 3406E
General Specifications (typical):
- Engine Type: Inline 6-cylinder, 4-stroke marine diesel
- Aspiration: Turbocharged
- Fuel System: Mechanical Direct Injection on 3406 and Electronic Unit Injection on 3406E
- Rated Power: 800 HP
- RPM at Rated Power: 2,300 RPM
- Displacement: 14.6 liters
- Rotation: Counterclockwise
- Construction: Heavy-duty cast iron block and head
- Camshaft: Often fitted with specific 800HP cam profiles for enhanced airflow and fuel delivery
The addition of the ECM and EUI system marked a major leap forward from earlier mechanical 3406 models. Electronic fuel delivery allows for more precise timing, improved throttle response, cleaner combustion, and better overall fuel efficiency, while still maintaining the rugged DNA that made the 3406 series famous.
Transmissions
Frequently paired with twin disc MG models 515, 516, 517, 521, and 522, depending on usage. The 3406 often requires high-ratio gears (3.5:1 to 6:1) in marine applications to maximize torque for heavy loads.
Cooling System
The 3406 engine uses a hybrid cooling system with fresh water and seawater in a closed-loop system. A mixture of antifreeze and fresh water is circulated through the engine block, cylinder heads, and heat exchangers to maintain the engine at a stable operating temperature. A dedicated raw water pump draws in seawater to pass through the heat exchanger, where it cools the closed-loop freshwater system without ever entering the engine block itself. Designed for warm-water operation, like what we see here on the Gulf Coast.
Vessels Commonly Powered by the Caterpillar 3406E
The 3406E 800HP sits at the top of the 3406 performance range, offering substantial horsepower in a relatively compact inline-six footprint. That balance of power and simplicity has made it a go-to engine in multiple marine sectors, such as:
- Hatteras – Often in 50-60 ft sportfish models
- Viking – Select mid-size offshore convertibles
- Bertram Yachts – Repowers and late-model sportfish
- Cabo Yachts – Revered models from the early 2000’s such as the 45
- Ocean Yachts – Performance-oriented convertibles
In commercial applications, the engine is particularly valued for continuous-duty cycles at high load, something many lighter-duty marine diesels struggle to maintain over time.
Reliability & Longevity
Few engines have earned the reputation of the 3406 platform. The 3406E continues that legacy with improved electronics layered onto an extremely robust bottom end.
Why it’s respected:
- Massive crankshaft and block construction
- Proven long-stroke inline-six architecture
- Strong torque curve at mid-range RPM
- Designed for sustained high-load operation
- ECM diagnostics improve troubleshooting and fault detection
It is not uncommon to see properly maintained 3406E marine engines exceed 10,000+ hours in commercial service.
Because of this durability, the 3406E remains a popular option for repower projects, and rebuilt or remanufactured units are still widely traded in the marine market.
Maintenance and Support
One of the advantages of the 3406E over earlier mechanical 3406 variants is its diagnostic capability. The ECM allows technicians to retrieve fault codes, monitor performance data, and fine-tune calibration more precisely than older engines.
Routine maintenance typically includes:
- Scheduled oil and filter changes
- Fuel system service and injector inspections
- Aftercooler cleaning and pressure testing
- Valve adjustments at recommended intervals
- Cooling system service (heat exchanger & raw water pump)
Parts availability remains strong due to the engine’s widespread commercial use and the continued global footprint of Caterpillar Inc. dealer networks. Many marine service yards are highly familiar with the 3406 platform, making long-term ownership manageable even decades after original production.
Conclusion
The Caterpillar 3406E 800HP represents the pinnacle of the 3406 lineage, combining old-school mechanical strength with modern electronic fuel management. It delivers serious torque, dependable performance, and the kind of longevity that commercial operators demand.
For boat owners considering a repower, or evaluating a used vessel equipped with these engines, the 3406E stands as one of the most proven high-horsepower inline-six marine diesels ever installed in offshore sportfish and workboat platforms.
