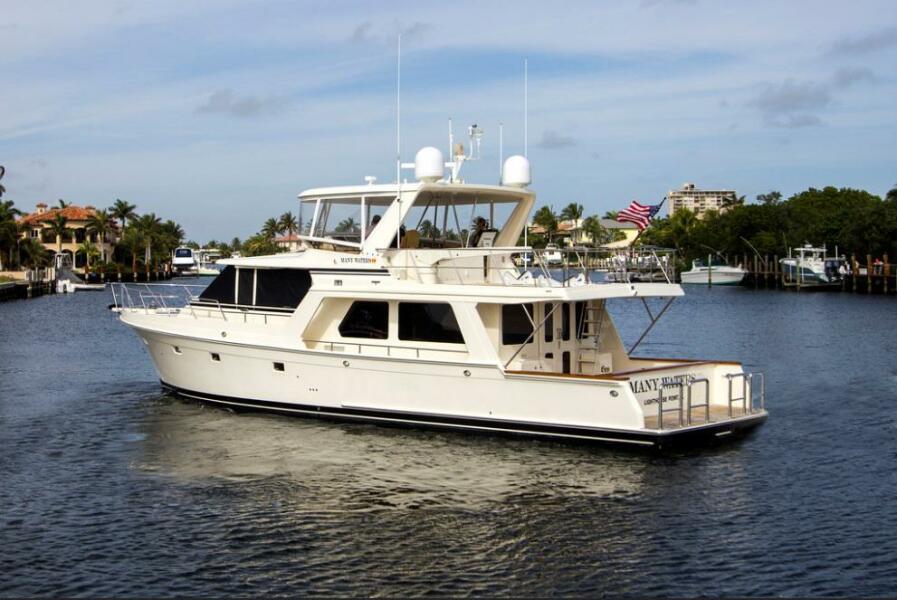

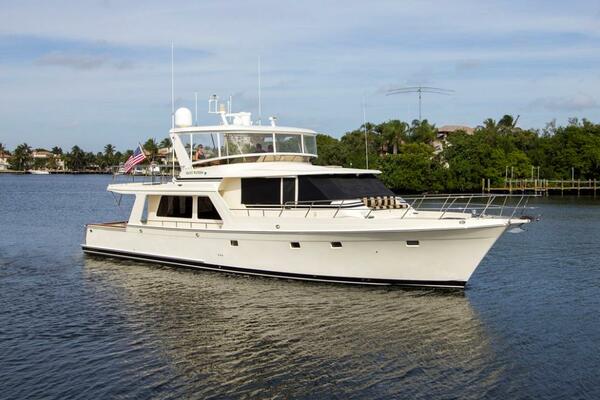

2013 Offshore Yachts 62' _{(18.90 m)} Pilothouse

Design Features

DESIGN FEATURES

Deep and finely veed forefoot, with flared bow sections and radiused spray rails.

Fully covered walkaround sidedecks with deep bulwarks.

Both upper and lower rub rails (lower capped with solid stainless steel trim) Low silhouette and center of gravity.

Port & Starboard flush pilothouse doors

Large, low profile windows for excellent sit down visibility from within the vessel.

All exterior stainless steel is grade 316 and there is no exterior aluminum used on the vessel.

INTERIOR FINISH

Hand rubbed, satin finished light teak interior wall surfaces, cabinetry, and bulkheads.

Custom teak and ebony soles in heads, galley, and pilot house areas.

Removable padded vinyl overheads throughout. LED lighting with dimmer switches.

Tempered bronze tinted window glass.

Gloss finished painted bilges.

Custom, pull out liquor storage drawer and twin storage cabinets to starboard of galley.

Large storage across from galley and shower below.

Baldwin 5106 black door hardware throughout plus Kohler brushed chrome Coralais Series plumbing fixtures.

ACCOMMODATIONS (3 Staterooms / 2 Heads)

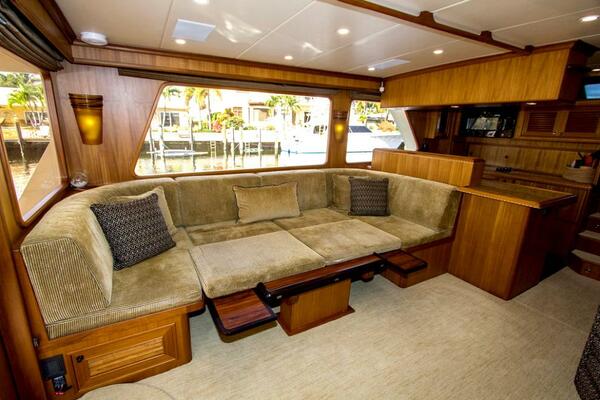

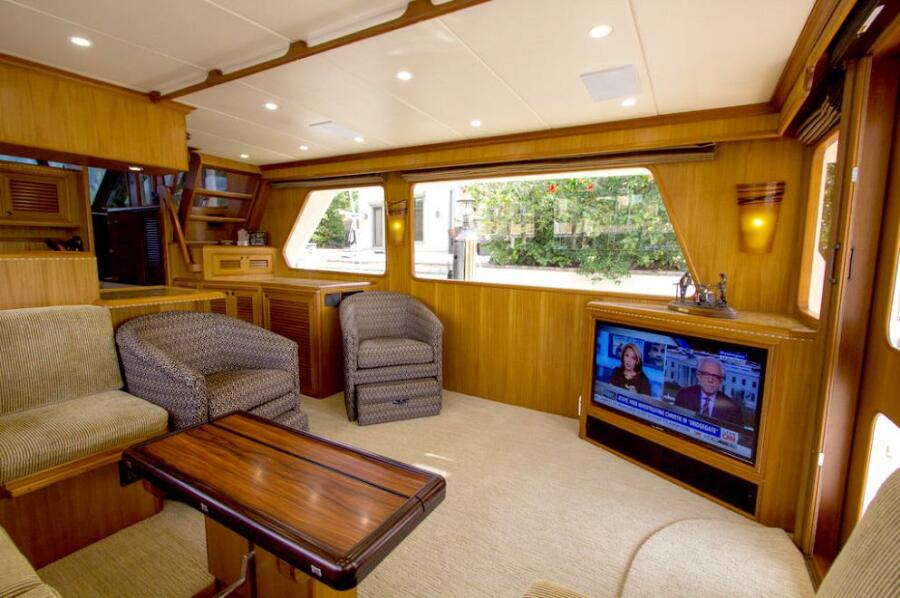

MAIN SALON:

Double aft salon sliding doors with full glass windows.

Engine room access hatch from forward in salon.

TV/Entertainment center aft to starboard.

Large L shaped settee to port with hand cranked Hi/Low table with extra leaves for dining which converts to bed with 2 extra cushions.

To starboard 2 barrel chairs.

Custom, enlarged storage lockers and liquor locker forward to starboard of the galley.

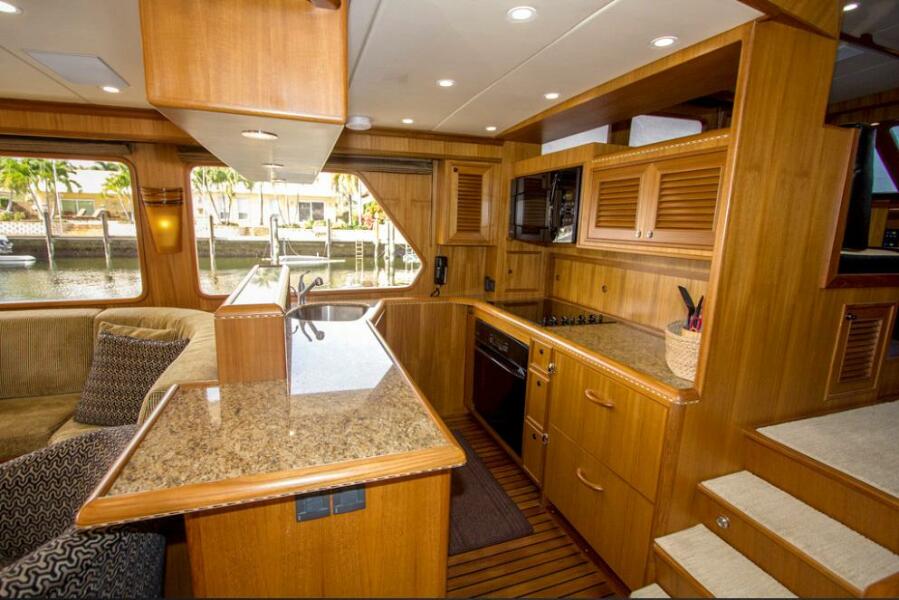

GALLEY

Italian granite tops, Baldwin door and drawer hardware, and drawer and cabinet white Formica interior surfaces.

Three Sub Zero 3-(2drawer units) (two in galley & one in pilothouse) with ice maker.

GE 30" profile cooktop and oven.

Microwave/Convection oven.

Instant hot water.

Disposal in stainless steel sink.

Pull-out storage cabinet.

5 slide out storage shelves throughout. 12 V galley exhaust blower.

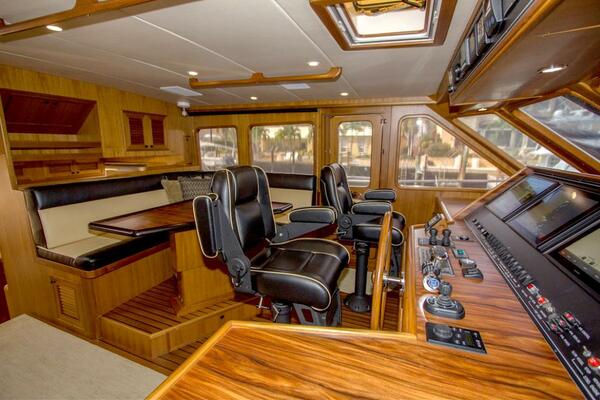

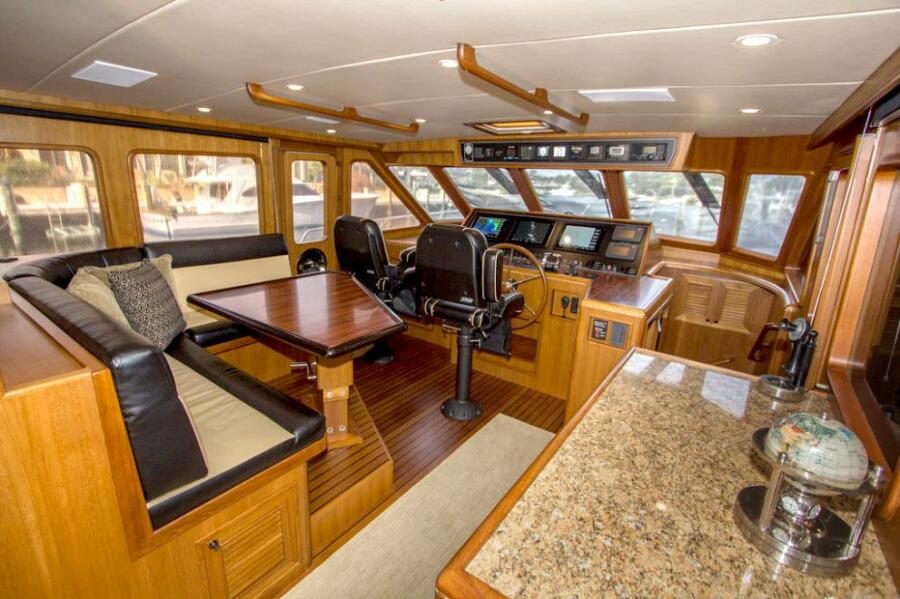

PILOTHOUSE

Teak and Ebony flooring.

Large, L shaped seating area to port, with high/low table plus extension leaf for dining.

Stidd Platinum Series helm chairs.

Interior stairway to fly bridge with stainless tinted Plexiglass Manship door.

Sub Zero drawer refrigerator, and wine storage cooler.

Complete engine and electronics instrumentation at dash and overhead panels.

Chart storage under PH table compartment with large lift top to port of helm storage area.

Port & starboard pilothouse exit doors.

MASTER STATEROOM (Midship)

Full size walk around king size bed.

Counter tops covered in custom Italian marble.

Custom book shelves, storage lockers, and deep storage drawers.

Plasma satellite HD TV.

Fusion entertainment system with APP control (can use apple - droid, etc.) throughout the vessel. (Marantz & Samsung components) Intercom.

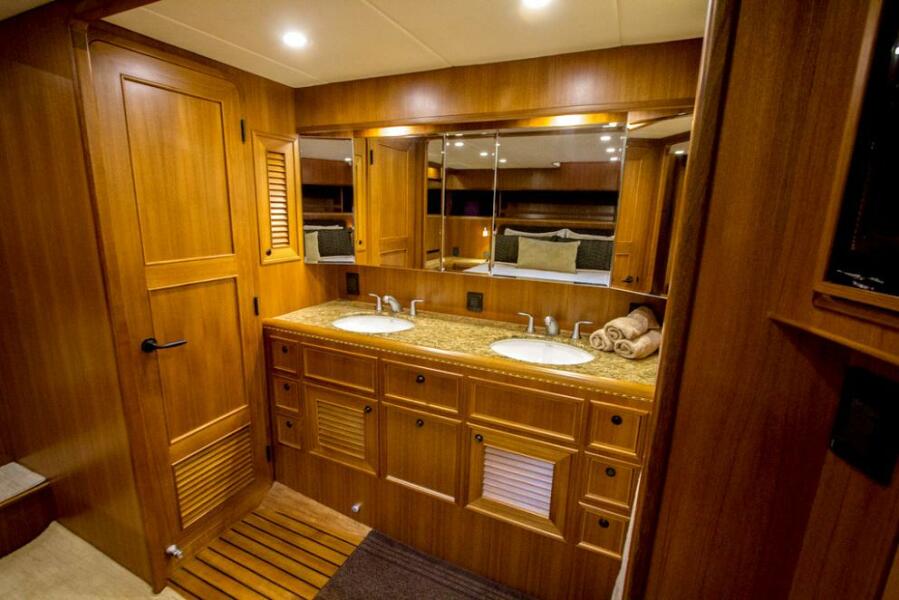

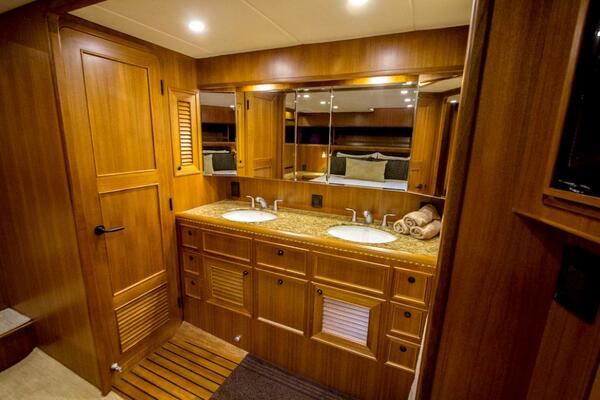

Oversized head (Tecma silent flush), dual sinks

36" oversized shower with frosted glass door.

Two cedar lined hanging lockers.

Oversize 3' x 5' mirror on forward bulkhead.

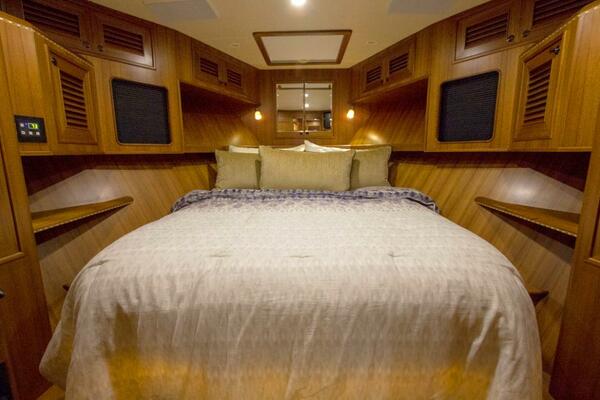

VIP/FORWARD STATEROOM

Island queen hinged bed with vast storage underneath.

4 drawers, 2 cedar lined hanging lockers, and large overhead hatch with Oceanair screen/ sunshade.

2 opening stainless steel ports with screens.

LCD satellite HD TV, entertainment system, and intercom.

GUEST STATEROOM PORT

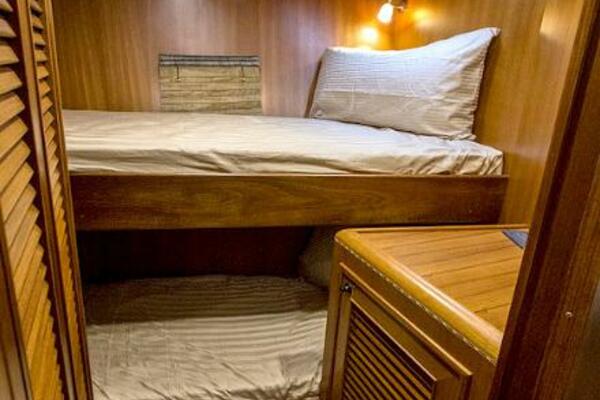

Two full length over and under bunks. Full cedar lined hanging locker.

Overhead stainless hatch and opening port.

Whirlpool over and under washer and dryer.

HEADS

Tecma Silence Plus heads.

Granite top counters and teak and ebony soles. Stainless port lights with screens.

Kohler plumbing fixtures and black Baldwin hardware throughout. Coralais brushed chrome towel bars.

SPECIFICATIONS

ELECTRICAL SYSTEM

Northern Lights 16KW and 12 KW generators (12 KW standard). Hours: Port= 3090/Starboard = 3090 (as of 09/2025)

3000 Watt Xantrex inverter with remote panel and auto start generator panel.

Upgraded house batteries from standard 180 AH to 300 AH Lifeline Glassmat 6 Volt each. (12 batteries)

4 - 8D 24 V Lifeline Glassmat starting batteries. LifeIine glassmat 12 Volt generator start battery.

2 Each Charles ISO Boost 50 Amp units (Flybridge)

LED lighting throughout with Vimar, black switches throughout.

(12) 24 volt battery converter.

Ocean LED underwater 24 volt lights.

Hella LED navigation lights. Engine battery paralleling system.

AC/DC backlit breaker/distribution panel at lower station.

Newmar 24 Volt battery charger for engine start.

Newmar 12 Volt 40 amp charger for house system back up.

Alternators: 2/24 Volt 130 Amp for start banks and 1/12 Volt 130 Amp for house banks. Fiberglass boxes and ventilation blowers for all battery banks.

Phone/TV/Intercom/sound system wired throughout the boat.

2- 50 Amp shore power connectors, (port bow & starboard cockpit). 4-12 Volt carbon dioxide detectors.

Zinc savers

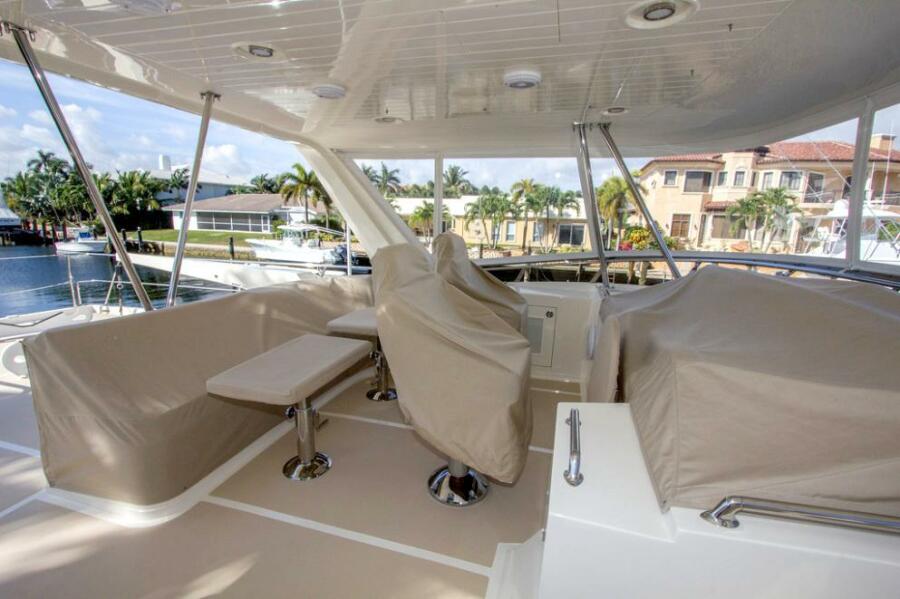

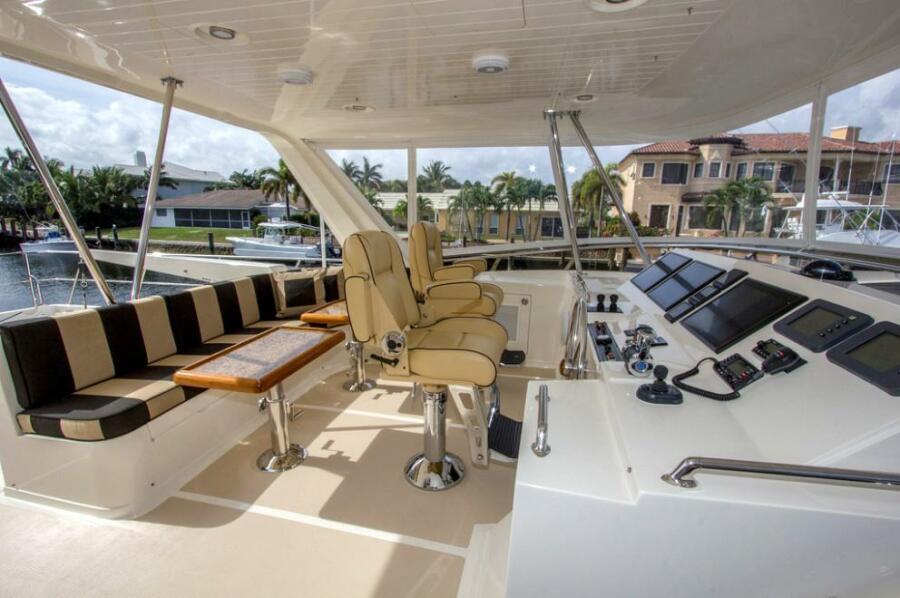

FLYBRIDGE AND BOAT DECK

Walker Bay 400 tender with Yamaha 50 hp outboard + Garmin chart plotter

Fiberglass hard top with Ez2cy window enclosure system and complete exterior canvas cover package.

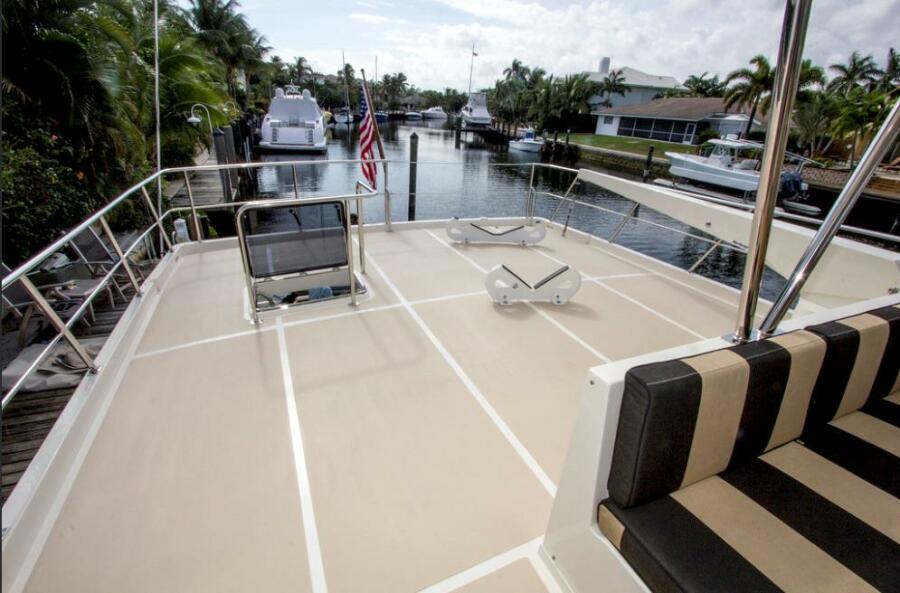

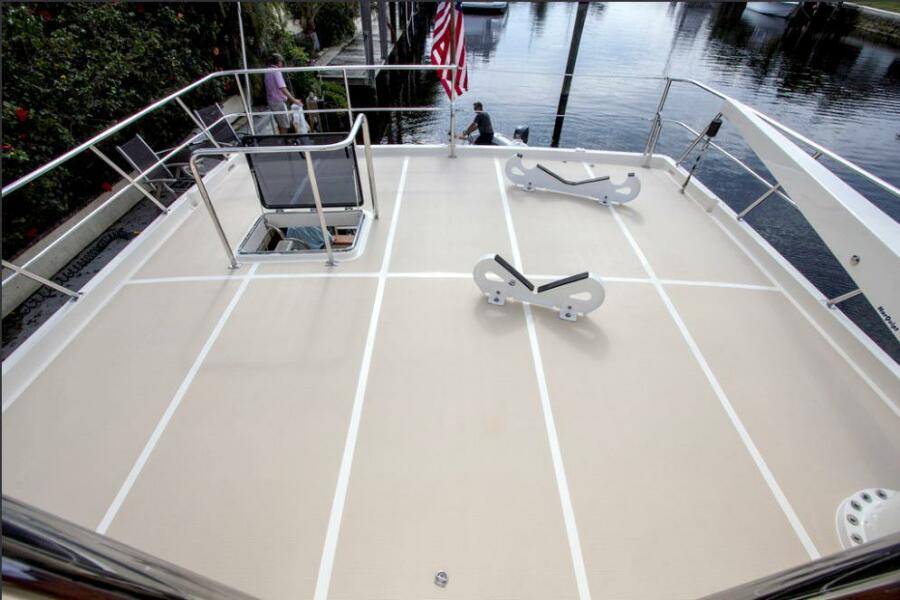

Three foot boat deck extension with stiffening beam and boat deck hatch/ ladder to cockpit.

Marquipt 1500 lb full rotation davit with remote control.

2 Stidd Platinum series helm chairs. Isotherm refrigerator and icemaker.

Complete engine instrumentation and electronics repeater package.

Stainless wheel, air horn, and freshwater wash down for upper deck.

L shaped seating with storage underneath.

Sun pad with recliner lift to starboard.

Chest Freezer.

COCKPIT

(2) JMS joysticks and remote controls for aft steering/docking both port and starboard with lift top covers.

Stainless ladder and hatch to upper boat deck.

Engine room access hatches with hydraulic lazarette hatch lift.

Second hydraulic power steering pump.

Cockpit shower and quick disconnect washdowns.

Storage cabinet.

Deck storage bins with drains.

2-12 Volt cockpit flood lights.

Transom door to swim platform with stainless swim ladder.

Freshwater and saltwater washdowns.

Dockside fresh water connector/regulator.

Downriggers.

Fish Rod Holders.

Fish cleaning table.

BBQ.

DECKS/EXTERIOR DETAILS

Tan contrasting, molded in, non skid surfaces throughout.

1 1/4 "stainless handrails with upgraded oval top tube additions.

Anchor platform with dual rollers and split anchor lockers.

Chain storage forward of keel area for low center of gravity.

Freshwater and saltwater washdowns.

Maxwell/Nillson 3-station, 3500 LB. hand held remote control windlass with dual direction and overload protective, and Maxwell chain counter.

350 Ft. 3/8" High-Test G-2 chain (new in 2024).

75 lb. plow anchor with two bow chocks and deck cleats.

Polished stainless Manship deck hatches throughout. 10 Manship stainless 14' portlights.

Hella LED upgraded navigation lights. 8-12 volt exterior deck dome lights.

Molded foredeck seating with cushions and storage underneath.

ENGINE ROOM DETAILS

Dual Caterpillar Cl2 Acert 715 H.P engines with ZF360A gears with dual hydraulic pumps on each engine.

Northern Lights 16KW and 12 KW generators.

ABT Trac 260/6.0' hydraulic stabilizers with PTO. ABT 25 HP bow thruster with PTO.

ABT 25 HP stern thruster with PTO.

4 station JMS electronic controls for engine, transmissions, and steering controls. Overhead decks, bulkheads, and floor insulated with high density foam and sound shield (Soundown)

Aluminum fuel tanks epoxy coated and insulated with aluminum clad hardboard.

Remote engine/generator stop/start panels.

Easy clean out/inspection of all tanks.

Stainless Steel water tanks in lazarette.

Hart tank tender system for all tanks.

5 Rule 2000 bilge pumps with switches set in bilge wells.

6 bilge water alarms with Sealand monitor panel.

Aquaflow mufflers and underwater exhaust system.

Delta-T air intake system and 24 volt engine room blowers.

2- 110 Volt and 4 12 Volt engine room lights.

65,000 BTU air conditioning/reverse cycle heating.

Fire Boy system with automatic engine shut down.

12" X 54" Bennett trim tabs with 2 station controls.

Tides prop shaft and rudder seals.

"Faster" manganese bronze 4-blade propellers.

NAVIGATION

Garmin GPSMAP 8215 Navigation system with 3 each displays at the pilothouse and fly bridge locations.

Garmin GKR604XHD Radar system with 4ft. open array antenna.

Garmin GHP 20 autopilot with second station on fly bridge.

"I Anchor" Dynamic Positioning System.

Icom M604A DSC VHF/hailer radio at pilothouse with 9db Shakespeare Big Stick antenna.

Standard Horizon Explorer GXl 700 VHF/hailer at flybridge with 9db Shakespeare antenna.

FLIR K625L Night/Daylight camera monitoring system with 3 station flir (PH - FB - MSR) control station and video recorder.

Cisco 24 port network switch. (combines WIFI, stereo, TV's, camera system, and direct TV reception).

3 each Cisco AlR computers for vessels access point.

Eaton 9130 UPS system for data backup.

CCTV DVR VMAX receiver.

Gast complete vessel multi- location alarm and security system.

Ocean LED underwater camera.

Fusion entertainment system with app control feature

Fusion remote stereo for f lybridge.

Marantz 250 watt salon entertainment system.

Numerous HD upgraded speakers and amplifiers throughout the exterior and interior of vessel.

ACR RCL-lOOD spotlight with second control.

Digital Marine direct connect cell phone+ antenna booster.

Dual anchor/radar alarm system.

Garmin Wi-Fi system throughout the boat.

Garmin GXK51 XM Weather/Audio Navways System.

Garmin GSD 24 Depth sounder with 600 W inducer.

Garmin AIS 600 AIS System

Garmin GMI 20 remote displays, 2 ea. in pilothouse, 2 ea. on fly bridge.

Custom Seaview antenna mounting system on hardtop for antennas and radar array.

Maretron Ultrasonic wind/weather instruments mounted on 12 degree Tilt Smart antenna mount.

2 each Caterpillar engine gateway monitoring panels.

SAFETY PACKAGE

Horn

6-Type 1 life jackets, 6-Type 11 jackets

3-Handheld fire extinguishers (1 type 1 and 2 type II)

Automatic Fire Boy System in engine room with engine shut down

Flare gun kit

EXCLUSIONS

Owners personal items, with Iist of detaiIs to be furnished prior to survey of vessel.
