2005 Jeanneau 54' _{(16.46 m)} SUN ODYSSEY 54 DA Rear Cockpit

HULL ARRANGEMENT

• Vessel: aft cockpit sloop rigged sailboat
• Hull Design Type: fill displacement with fin keel and spade rudder
• Exterior Finish: black paint in excellent condition, with white boot-stripe and gold pin

accent stripe.

• Transom/swim platform: “sugar scoop” transom
• Boarding Swim Ladder: folding stainless steel boarding ladder installed at the swim

platform

• Bulkheads: athwartships reinforcement enhanced by bulkheads
• Keel: Ballast Keel (reportedly 11,023 lbs) bolted onto hull
• Bilge: 2 Bilges are gel coated
• Chain Locker Holes: overboard at bow.

Recent Upgrades

Upgrades

 Hard stainless-steel raining in aft with teak

 New non-skid deck

 New glass in all hatches

 Refinished all flooring in entire boat

 Removeable solar panels

 Starlink

 Newly refinished cockpit table

 Additional top access fridge/freezer

 LED lights

 New boat thruster

Deck Arrangment

DECK ARRANGEMENT

• Deck overlay: teak cockpit and deck overlays
• Deck Material- non-skid on outside deck
• Toe-rails: stainless steel compression striker rub-rails

Exterior Equipment

EXTERIOR EQUIPMENT

• Exterior Seating: aft cockpit bench seating port and starboard with lazarette locker
• Soft goods: cushions in very good condition
• General Hardware Condition: no significant corrosion
• Exterior Lighting: mast deck lights
• Exterior Washdown/shower: freshwater washdown located in port outboard transom

locker

• Cabin Ventilation: hatches, portholes, dorados and the companionway doors
• Deck Hatches and portholes: no signs of leakage
• Exterior Doors: acrylic drop in companionway door stored under companionway stairs.
• Hinged starboard and aluminum doors with acrylic windows and sliding hood. Windows

has 3 interchangeable window types.

• Windows: tinted and tempered fixed windows
• Deck Railings: stainless steel stanchions with cable-lines and boarding gates
• Bow Railing: stainless steel wrap around welding bow pulpit with four feet well mounted

to vessel.

• Handrails/Grab Rails: stainless steel Davits with block and tackle at transom.
• Deck Drainage: self-bailing deck at the port and starboard aft cockpit corners.
• Cleats: cleats throughout the vessel were stainless steel horn type.
• Anchor Platform: Stainless steel fairleads with double anchor roller chutes. The port

chute has been converted into a tack point for a code zero sail.

• Exterior Storage/hatches: various exterior lockers and storage areas in excellent

condition

• Exterior Covers: black sunbrella wheel/helm, table, and winch covers
• Fenders: 8 included
• Mooring Lines: included

Interior Cabin

INTERIOR CABIN

• Salon: cream leather covered sectional sofa with expandable dinette to starboard with

two barrel chairs, dual sofa’s to port. Navigation station starboard aft and galley port aft

• Main Cabin: walk around queen v-berth converts into two separate spaces with ensuite

heads using wooden fitted partitions. Large aft master cabin with walk around bed, a

vanity, hanging lockers, cabinet storage and ensuite heads.

• Galley: Located in port aft of the salon. Includes 2 refrigerator/freezers, double sink,

dishwasher, outlet for washer/dryer combo located in bottom cabinet, fully stocked

storage cabinets including dishes, glasses, utensils, pots, pans, and other kitchen items.

4 burner gas stove with hood, and separate induction hotplate. Built-in Microwave.

• Head Arrangement: Four total to vessel, two manual Jabsco heads and two 12 volt

electric Jabsco heads.

• Shower Arrangement: Four total showers
• Interior Cabinetry and Trim: Satin finished teak cabinetry and trim including doors.
• Flooring: Teak and Holly Cabin sole throughout vessel.

Interior Systems

INTERIOR SYSTEMS

• Lighting: 12-volt DC and 110 AC lighting
• HVAC/AIR CONDITIONING: four cruisair Marine Air units. One 16,000 BTU and three

10,000 BTU with digital controls.

• HEATING SYSTEM: marine air units were reverse cycle for heat
• Television: 2 flat screen TV’s in main salon and aft berth
• Internet: STARLINK INSTALLED

GALLEY EQUIPMENT

• Refrigeration: Frigoboat firgomatic fridge/freezer
• Ice machine: located in salon lounge area
• Oven: Eno stainless steel LPG oven
• Stove: Eno four burner stainless steel LPG stove
• Exhaust hood: stainless steel over stove
• Microwave Oven: Tappan stainless steel oven
• Dishwasher: Tappan dishwasher located under sink
• Sink: stainless steel with separate basins.
• Washer/dryer: cabinet and outlet located in galley

Engine Power

ENGINE

• Model: Yanmar Diesel 4JH3-THE, 1.995 LITRE, turbocharged and intercooled

Horsepower: 90 HP at 3700 RPM continuous

• Cylinders: Four in-line configuration
• Engine Hours:
• Transmission: direct drive type
• Fuel System Type: Diesel
• Number of Fuel Tanks:
• Fuel tank Capacity: 190 gallons

Generator

GENERATOR

• Model: Nor Pro Navigator Series, Model No. XC10KW000N, with Yanmar engine model

3TNE74.

• Fuel Type: Diesel
• Cylinders: three
• Generator Kilowatt Rating: 9.0 KW
• RPM: 1,800 RPM
• Voltage rating: 120 volts AC @ 60 hz

Electrical Systems

ELECTRICAL SYSTEMS

• DC voltage: 24/12 volt systems
• Batteries: 12 volt flooded lead acid batteries. 24 volt bow thruster has four batteries in

parallel with voltage converters located under v-berth. House batteries under cabin sole

at navigation station consist of four group 31 in parallel. Other 24 volt bank located

under galley cabin sole are two group 31 in series.

• Battery switches: three coupe’ battery switches
• Main DC Breaker: located on main panel
• DC voltage Converters: two Cristec 12-24 volt DC voltage converters
• DC power Outlets: 12 volt outlets located throughout vessel.

• AC ELECTRICAL SYSTEMS
• AC shore power: 120 volt @ 60 hz, single phase
• AC shore power inlets: 50 amp 120/240 volt shore power inlet
• AC Power cord: 50 Amp. Included
• AC Breaker: located on main panel

Water Systems

WATER SYSTEMS

• Number of Fresh Water Tanks: three
• Water tank capacity: 246 gallons total
• Location: port and starboard amidships under salon sole and under starboard salon

settee.

• Water fill location: starboard and port hull sides
• Filtration: Jabsco Pumpgard Model 46400-00000 and everpure filter

Hot water systems

HOT WATER SYSTEM

• Water Heater: Raritan Engineering Marine hot water heater
• Type: Marine Grade 120 volt
• Capacity: 12 gallons

Steering Systems

STEERING SYSTEMS

• Type: chain, cable and pulley type mechanical steering
• Steering system: Edson components
• Number of Steering stations: two steering stations, port and starboard aft cockpit
• Thrusters: max power 24-volt bow thruster

Anchors

ANCHORS

• Bruce/claw 30kg, stainless steel anchor installed at bow. Large Fortress FX-37
• Danforth style with rope rode; ½ “galvanized chain
• Anchor Windlass: Lofrans Albatros 24 volt/1500-watt windlass.

ELECTRONICS AND NAVIGATION EQUIPMENT

ELECTRONICS AND NAVIGATION EQUIPMENT

• VHF Radios: Icom IC-M504 Radio
• Single Sideband radio: Icom IC-M802 singel side band radio
• Compasses: two Ritchie 5” compasses
• Navigation Display: Raymarine E-120, 12” display with GPS chartplotter and SDM-300

network Sonar

• AIS: interfaced with navigation
• Autopilot: Raymarine ST 6001+ autopilot
• Marine Radar: Raytheon R41 Marine Radar
• GPS Chart plotter: Raymarine e127
• Depth Display: Raymarine ST60 Digital Depth Display
• Satellite Telephone: Qualcomm Globalstar

Sails

SAILS

• Mainsail: one boom furling Dacron Mainsail Headsail: roller furling headsail 150% tri-radial dacron with brown sunbrella sun cover

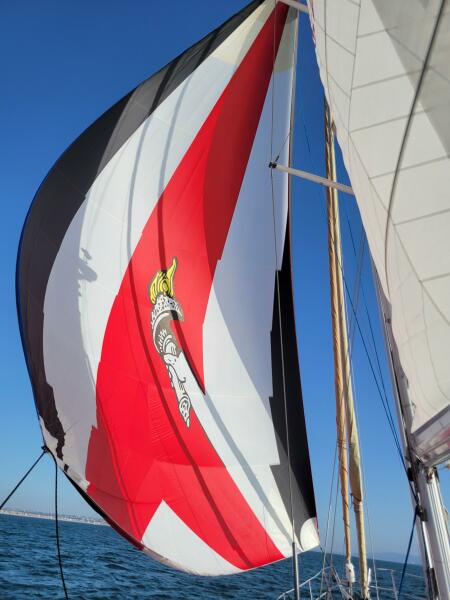

• A-Symmetric: Two A symmetric sails in the forward crew quarters.
• Sail Covers and Sail Boots: Tan sunbrella type fabric

Walk Through

Jeanneau 54 DS Aft Cockpit Walkthrough

MAIN CABIN

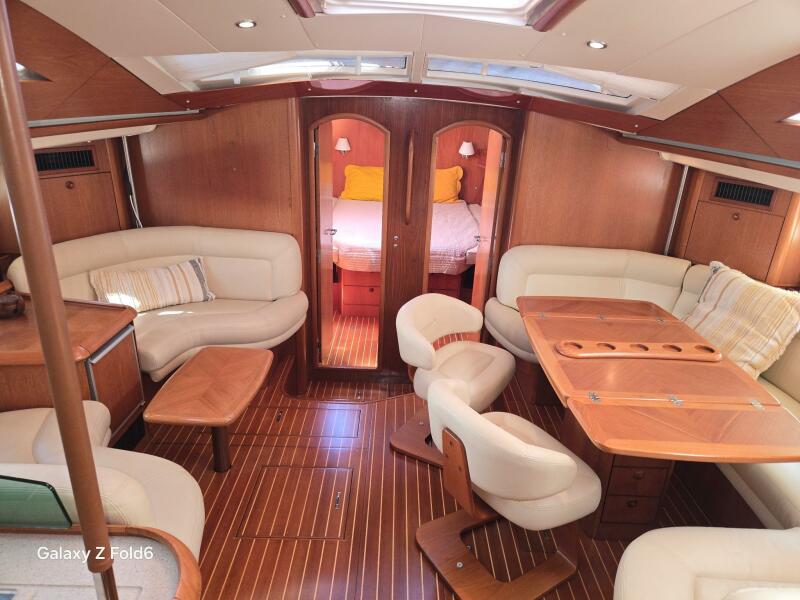

The main cabin, as well as the rest of the yacht's interior, features a mahogany and holly sole and

wonderful mahogany paneling, joinery, and appointments. LED lighting is found throughout the yacht

along with ample ventilation from overhead hatches and opening ports throughout the yacht.

Entering from the cockpit a large cabin opens with the nav station to the starboard and the galley to

the port. Forward, the salon features port and starboard settees separated by a fixed teak table with

dual folding leaves. Half circle and barrel chair seating covered in supple beige leather, across from

split seating covered with beige leather divided by the salon ice maker and removable coffee table.

NAV STATION

A traditional nav table with full-size bench with storage underneath is found at the nav station along

with instrumentation, the electrical panels, a stereo, a VHF marine radio, fuel gauge, and battery

monitors. Nav desk lifts containing storage, along with storage on both sides of the nav station along

with 3 drawers.

GALLEY

The galley is located opposite the nav station on the port side and offers generous counter space

and storage lockers. A double stainless-steel sink is found with the dishwasher located underneath.

The Galley also contains a 4-gas burner stove with stainless steel hood, front-facing fridge, as well

as a top-down freezer. Upper cabinets are stocked with kitchen supplies such as nautical dishes,

glasses, (drinking, coffee, wine, and hi-ball), utensils, full cookware sets, pots/pans, bakeware,

crockpot, portable air-fryer/mini oven, portable induction burner. The galley also has a built-in

microwave.

FORWARD CABIN/HEADS

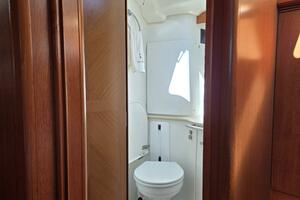

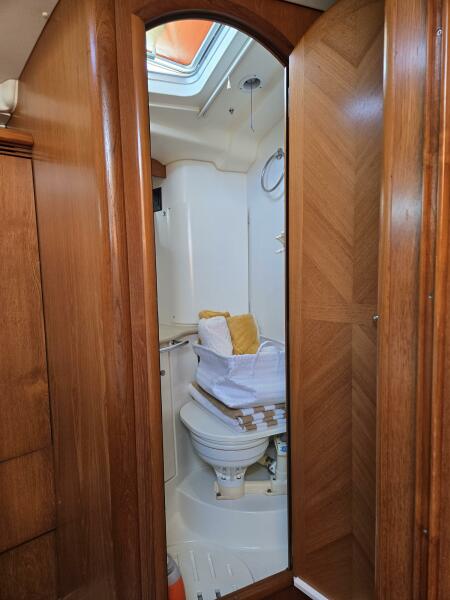

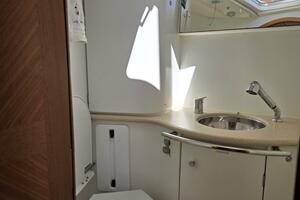

The 2 forward heads can be accessed through the cabin and have separate access doors. The

forward heads consist of a combo head, shower, sink, with storage mirror cabinets. The Forward

cabin can be split into separate bedrooms with individual closets, or the wood divide wall can be

removed to create an extra-large king-size master suite with dual closets and heads.

AFT CABIN/HEAD

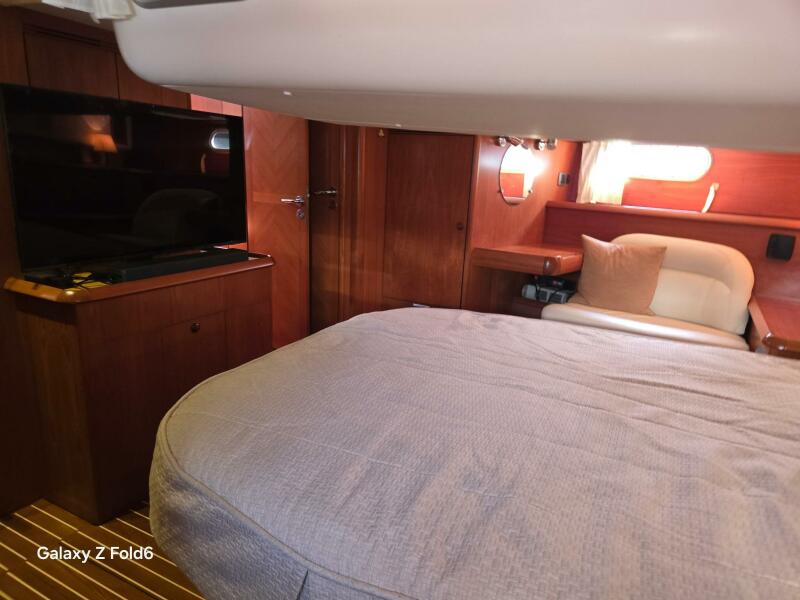

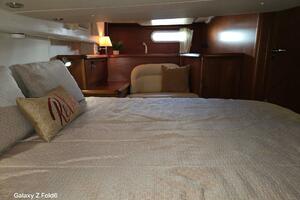

The large aft cabin accommodates two with a queen berth. Shelving, cabinetry, cream leather

seating extends along the port and starboard sides of the cabin. The starboard side of the master

suite consists of a seated vanity, closet, and head with mirror/storage. The port side of the suite

contains a deep closet shelving, and the full-size shower with storage cabinets in the shower area.

There is also additional storage in front of the bed, under the leather seating, and on both sides of

the bed. I Kenmore music system/speakers is located on the portside for the Master ensuite only.

ENGINE ROOM

The engine is located under the cockpit/companionway stairs to the cabin. Forward-folding stairs

offer easy access. The generator is housed under the floor between the galley and Nav station.

COCKPIT

The spacious aft cockpit, inlayed with teak, offers 270- degree cushioned seating for 5 to 7 around

the helm and a folding wood table with drink holders and storage compartment inside the table.

The helm features two wheels, two magnetic Richie compasses, Raymarine depth, speed, and wind

instrument cluster, and chart plotter. 4 winches (3 electrical and 1 manual)

A Kenmore Stereo system located in the main cabin has speakers mounted forward port and

starboard. The cockpit is protected from the sun and sea by a full enclosure with zippered windows

and 2 overhead observation windows.

Helm seating has DEEP storage compartments (easy access and room to sit and work inside each

compartment, along with ample storage under the port and starboard seating areas. The aft cockpit

also contains a freshwater shower hose, swim ladder, and area for a BBQ grill. All life vests, lifeboat

and emergency gear are located in the floor near the rear of the aft/cockpit area for easy access if

needed.

FOREDECK



Moving forward the deck is protected by stainless steel and bow rails connected by dual lifelines

running the length of the deck port and starboard gates are found at the port and starboard sides.

The aft contains custom stainless steel/teak rails running along the aft/cockpit area.

Five hatches are found on the deck. New non-skid deck flooring along the front, port and starboard

deck area.

Inner and outer foresail tracks run along the port and starboard sides. Cleats are found at the bow

midships and stern.

The roller mounted anchor is serviced by an electric windless.

Tender

TENDER



AB Inflatable Dinghy

Mercury Engine 1.5 hp

Inflator/vacuum manual pump

Accessories Included in the Yacht

ACCESSORIES/INVENTORY INCLUDED WITH YACHT

 Full set Jeanneau-style dishes/salad plates/bowls

 Glasses- drinking/coffee/wine/hi-ball

 Jeanneau design utensils

 Custom beading

 Mini fans

 coasters

 Dish towels

 Crock pot

 Pot/pans

 Fry cookware

 All Cooking utensils

 Refrigerator storage containers

 Hotplate/grill for gas stove

 Boat cleaning products (wood oil, stainless steel cleaner, etc.)

 JEANNEAU SPARE PARTS

 Life Jackets

 Spare anchor

 All extra lines

 Flags

 Starlink equipment

 Gas emergency pump

 Beanbags

 Mosquito netting for hatches

 Fenders

Contact Information

Lady Liberty is the personal Sailing Vessel owned By a Florida Licensed Yacht Broker, For Full Information and Showings Contact:

Eyal Email : eyal1964ezra@gmail.com

Phone Number :  818-968-8555 California Time

The Vessel s Located :

Esprit Marina

Address: 13900 Marquesas Way, Marina Del Rey, CA 90292

https://www.espritmdr.com/anchorage?&utm_source=gbp&utm_medium=organic

Listing MLS by Yachtr.com
