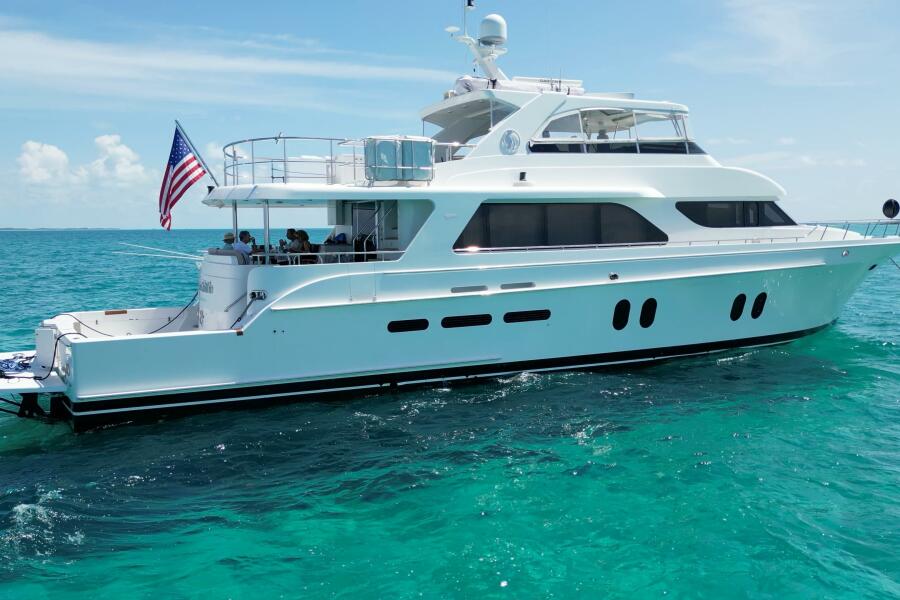

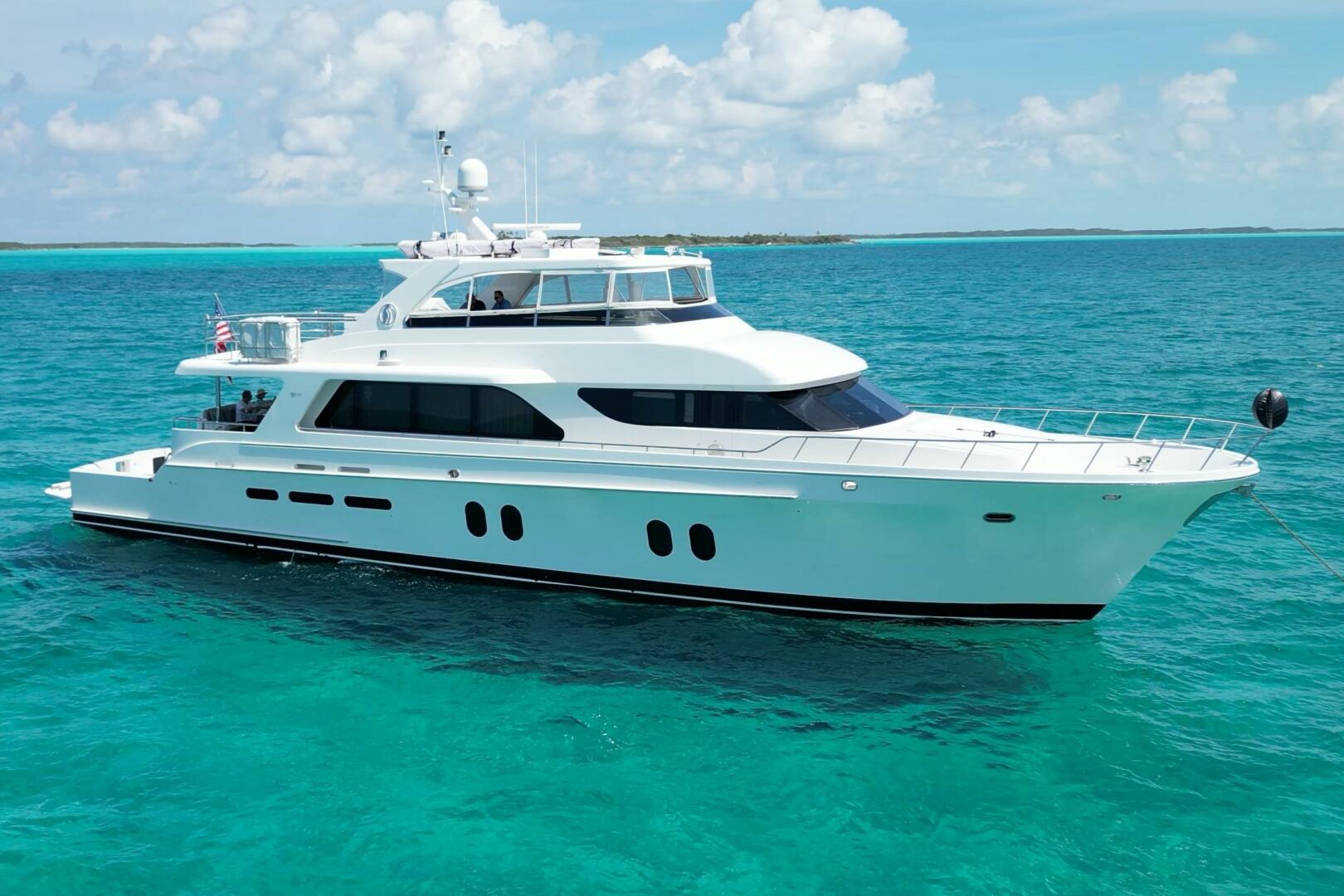

2012 Cheoy Lee 84' _{(25.60 m)}

Walkthrough

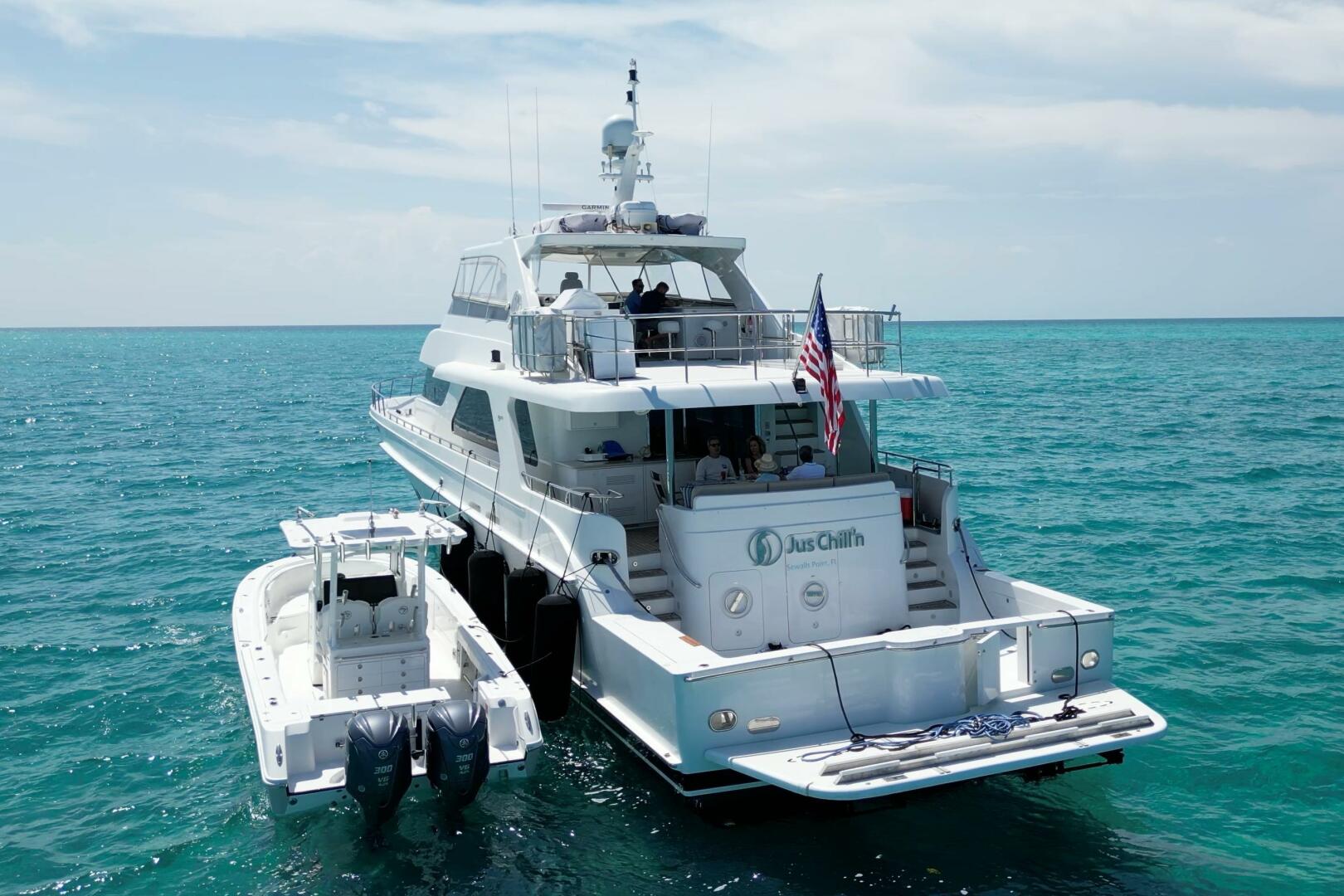

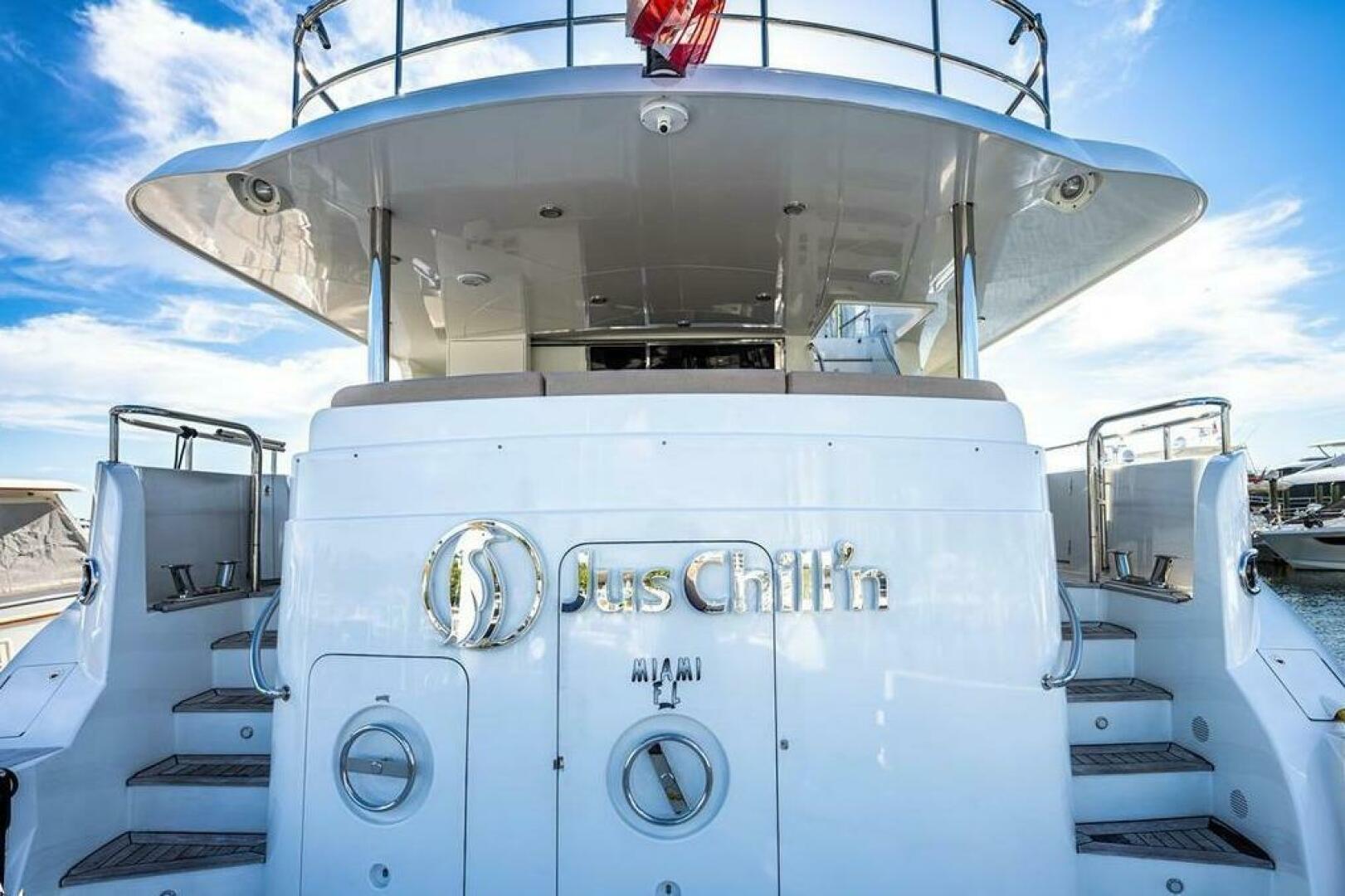

Starting aft on the transom you'll find the TNT lift which holds a 15' ZAR tender with 90HP outboard. The spacious factory built cockpit has an aquarium style livewell, chilled storage, and a prep station. This area can be shaded by adding a canopy and really compliment this space and close to the water for swimming and boating activities .

Forward up molded stairs (port and starboard) is the aft deck with one of the three dining spaces with a teak table, built in seating aft, and folding teak chairs. To port, there is a walk-up bar with refrigerator and stairs to the flybridge to starboard.

A sliding glass and stainless aft deck door leads to the main salon with plenty of comfortable and a large LED TV starboard. Forward in the salon is a round dining table to port and a full-service bar to starboard. Further forward on the main deck is a full galley with stainless appliances to port, a day head, and a spiral staircase down to the master stateroom and king guest stateroom. All the way forward on the main deck is a staircase down to the VIP queen stateroom.

The flybridge can be accessed from either the staircase at the aft deck or a spiral staircase forward in the main salon. The flybridge features an air-conditioned helm, three-sided EZC2Y enclosure, two helm chairs, settee with table to port and a bar with three stools to starboard. Aft is a gas BBQ grill and a large open deck for setting up chairs and entertaining.

The crew quarters and engine room are accessed via a center-line transom door in the cockpit. From there, you first enter the crew area with one stateroom to port (2 berths) and another to stbd (full berth). Further forward is the engine room maintained to A-1 yacht quality standards and featuring twin Caterpillar C-32 Acert engines, twin 32kw Kohler generators and many more "big yacht" options.

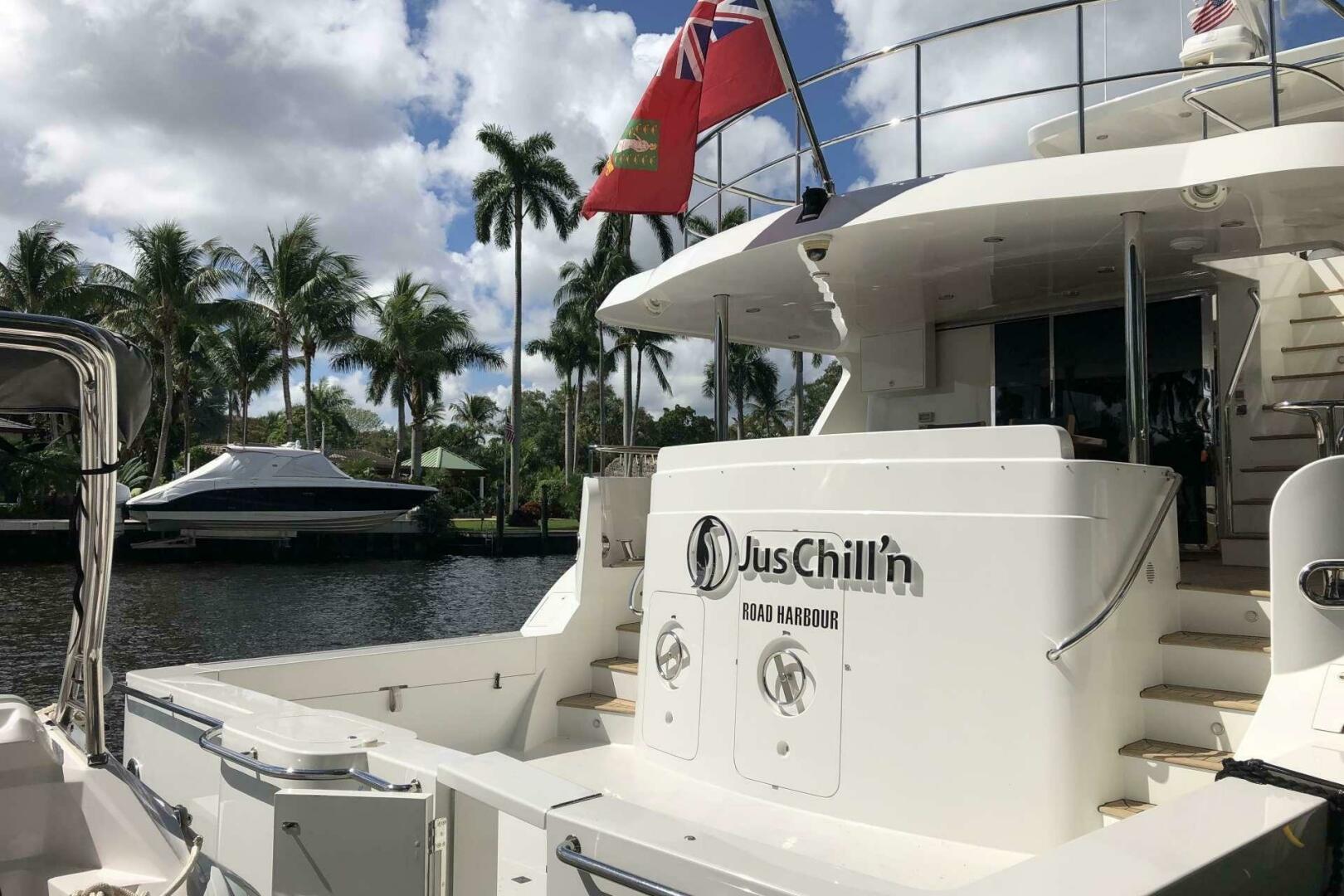

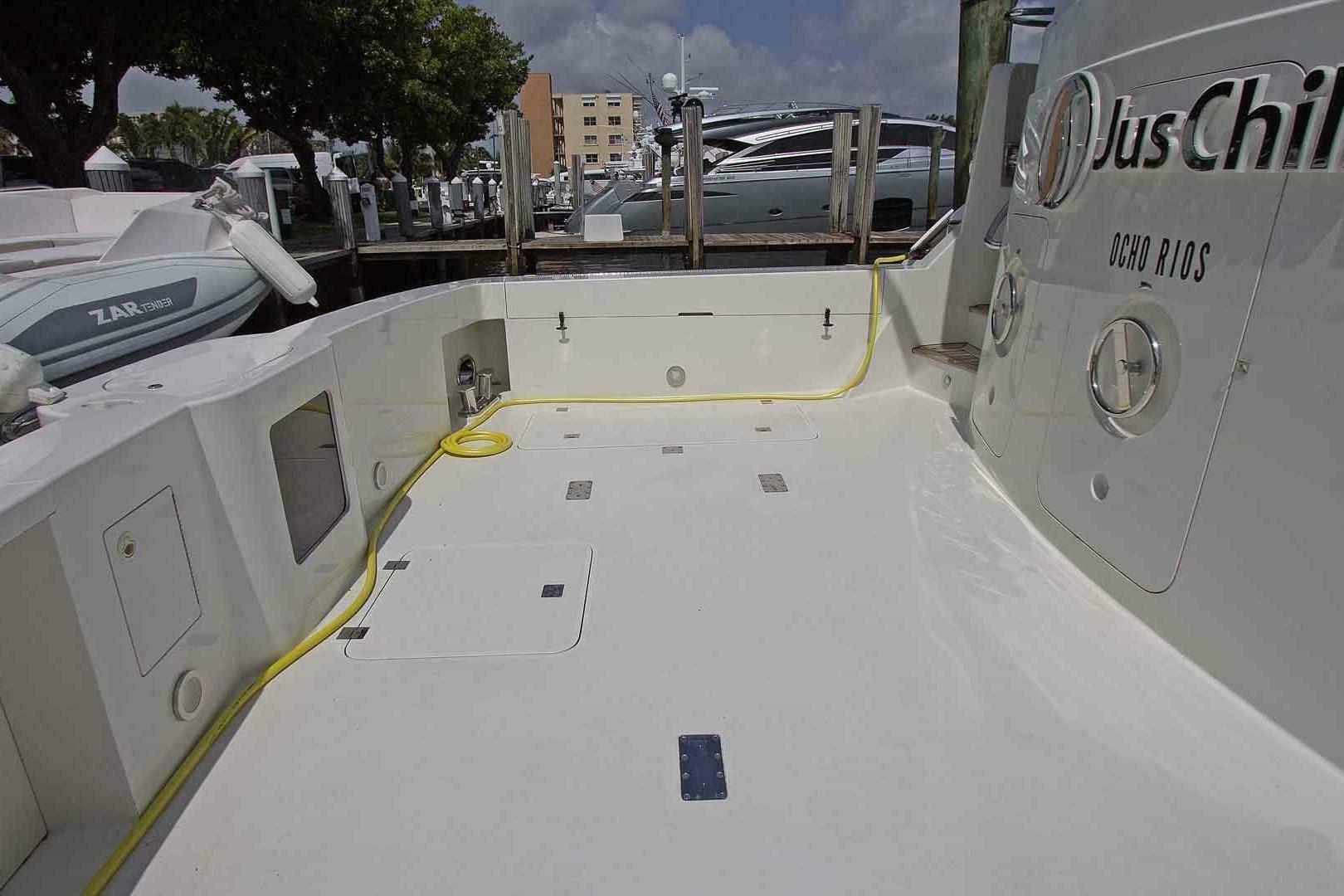

Cockpit and Aft Deck

Cockpit Equipment:

• TNT Lift on Transom
• 2019 ZAR 15' Tender with 90HP Outboard, GPS, Arch,
• Live Bait Well
• Transom Door to Starboard
• 1200 Lb Davit in Cockpit Enclosed with Hinged Coaming Lid
• Molded Fiberglass Swim Platform

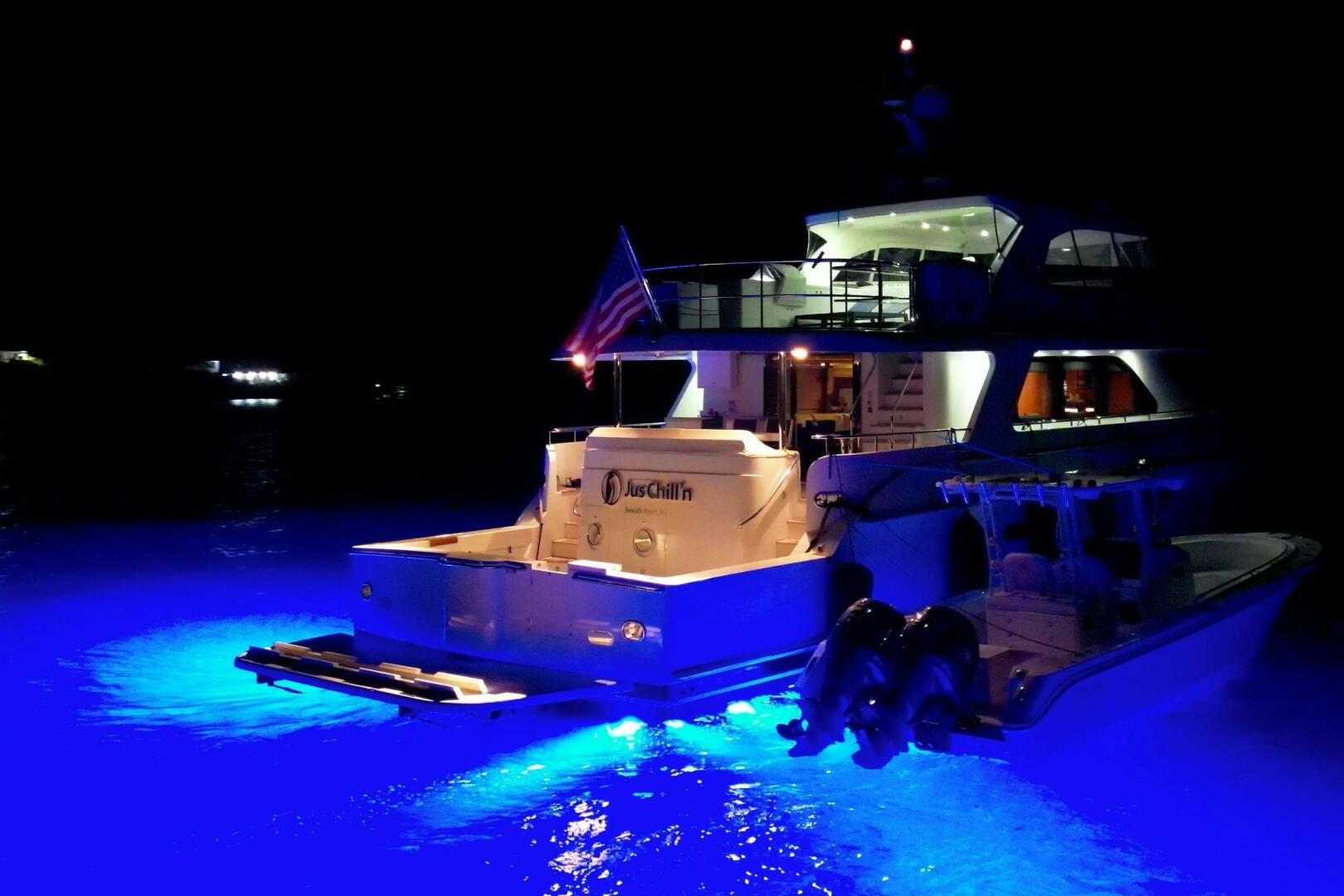

• (10) Ocean LED Underwater Lights
• (2) Fish Boxes (Removable)
• Support for Fighting Chair

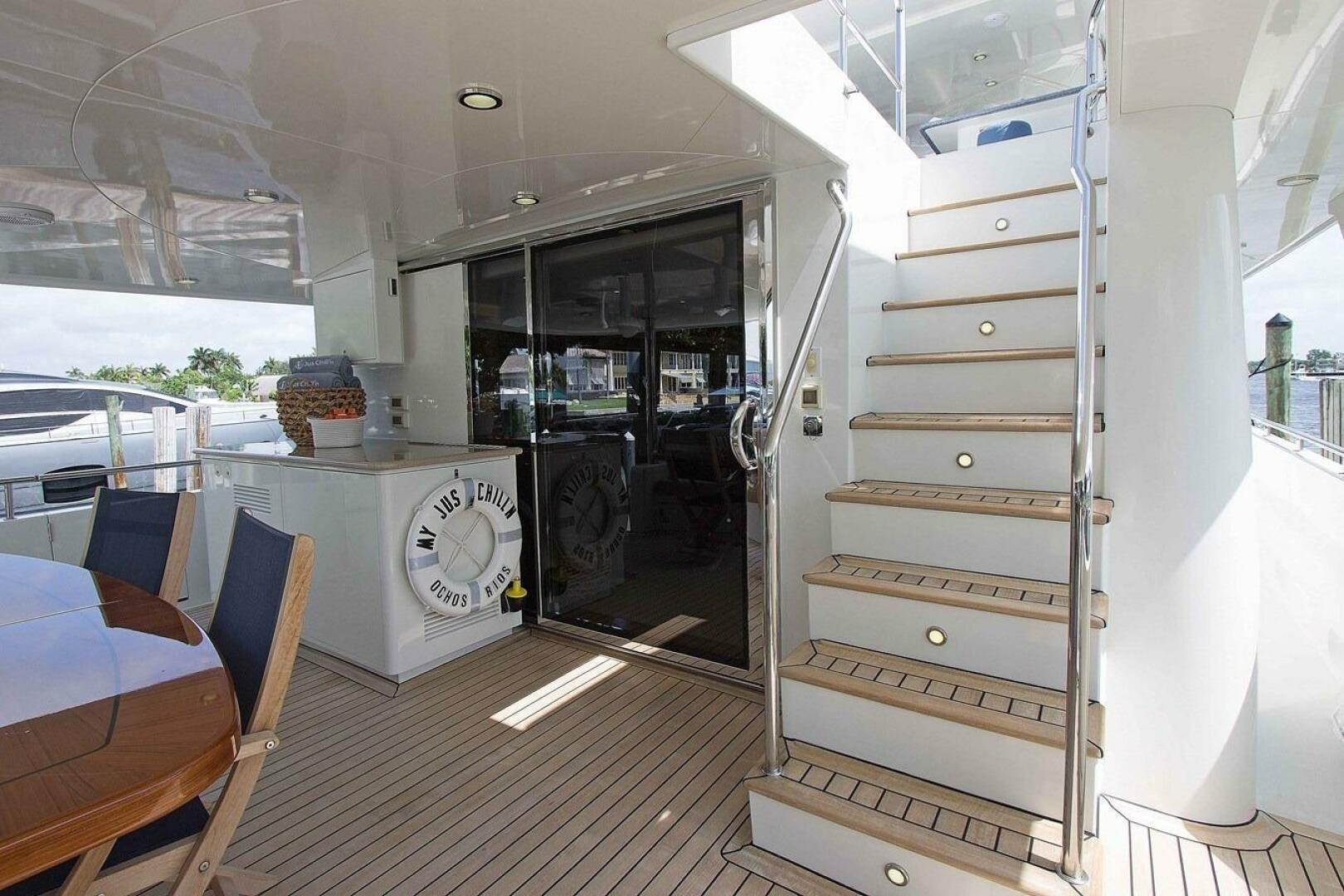

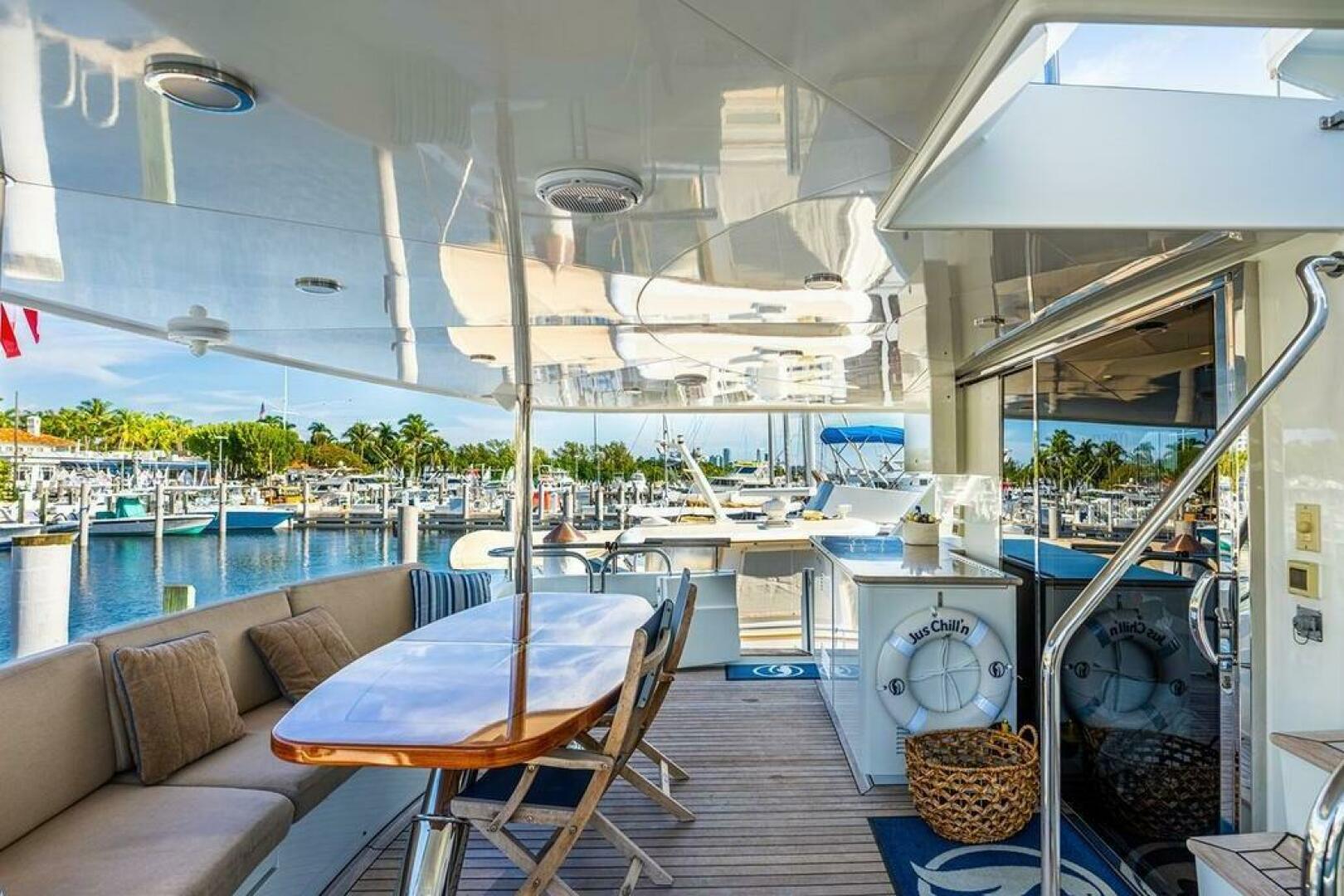

Aft Deck:

• Teak Decks
• Painted Nonskid Deck and Stairs to Aft Deck
• Stainless Steel Swim Ladder
• Stainless Steel U‐Shaped Rails, Hinged & Removable
• Freshwater Hot & Cold Shower
• Watertight Door to Crew Quarters
• Locker for Shore Services, Shore Power Transformer and TV Inlets
• Hinged Cleats, Port and Starboard
• Storage Locker with Watertight Door
• Removable Fiberglass Table over Hatch
• Corian Bar Top, Sink with Hot/Cold Faucet, Freshwater Washdown Hose Bib,
• U‐Line Refrigerator and Icemaker
• Top Loading Freezer
• Weather-Tight Fiberglass Cabinet for 32" TV

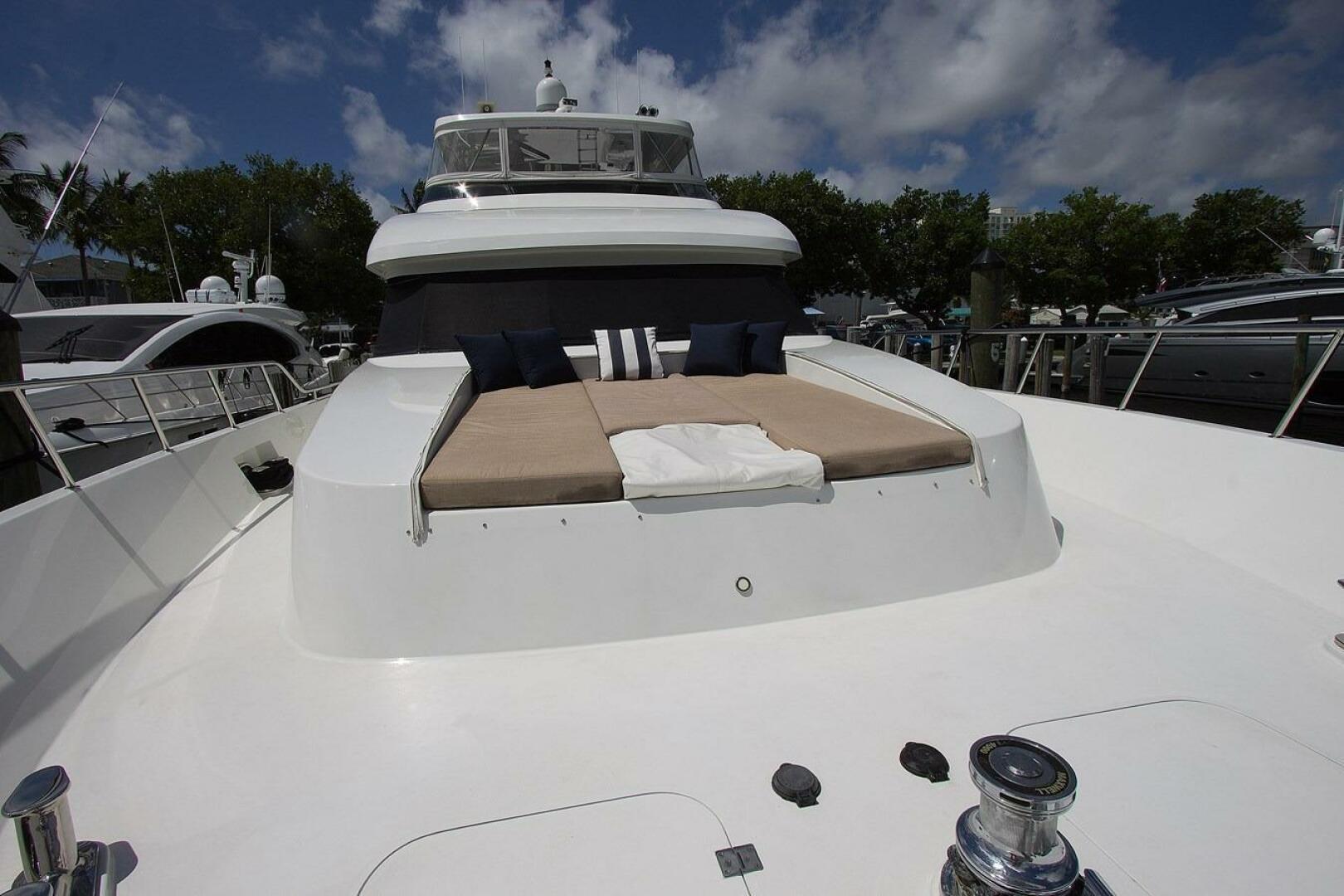

Side Decks and Bow

• Sunbrella Sunpad Cushion, 3-Pieces
• Maxwell 4000 Hydraulic Vertical Anchor Windlass, ⅜" Chain and Rope Capstan, Deck Pipe and Chain Stopper, Controls with Remote at Both Helms
• Bruce 110 Lb Anchor Stowed on Roller Assembly 30 Fathoms of ⅜" Chain
• Walkway Lighting on Side Deck Overhangs
• Freshwater Anchor Washdown Spigot
• Foredeck Storage with Twin Flush Access Hatches
• Stainless Steel Bollards and Fairleads
• Stainless Steel Rails 1.25" with Mid Rail Forward
• Stainless Steel Burgee Flag Staff on Bow Rail
• Boarding Gates, Port and Starboard
• Overhead Lights

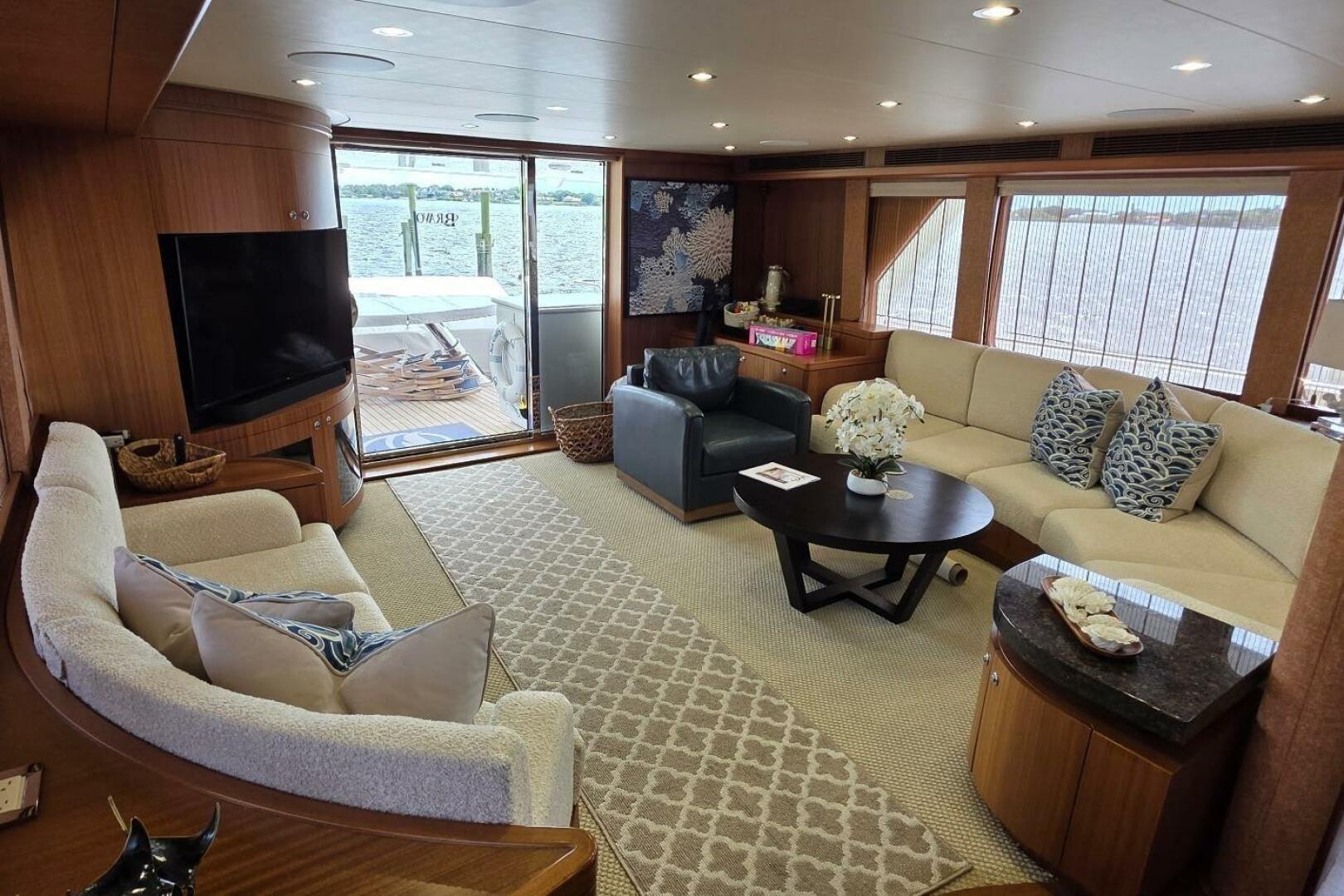

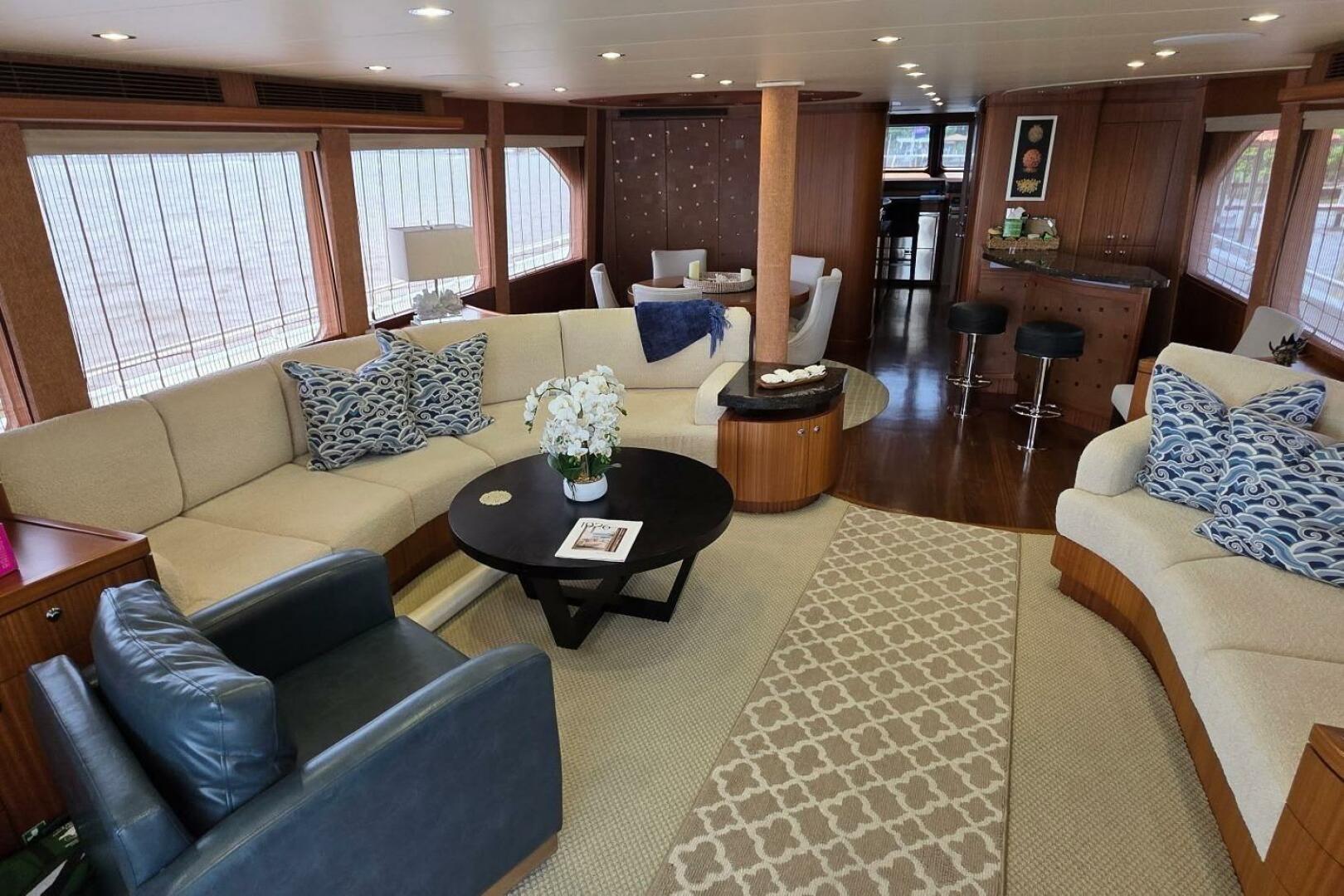

Main Salon

• Stainless Steel Framed Sliding Glass Door from Aft Mid-Level Deck
• Settees, Port & Stbd, with Entertainment System to Starboard
• Bar with Granite Top, Refrigerator, Bottle Storage and Bar Stools

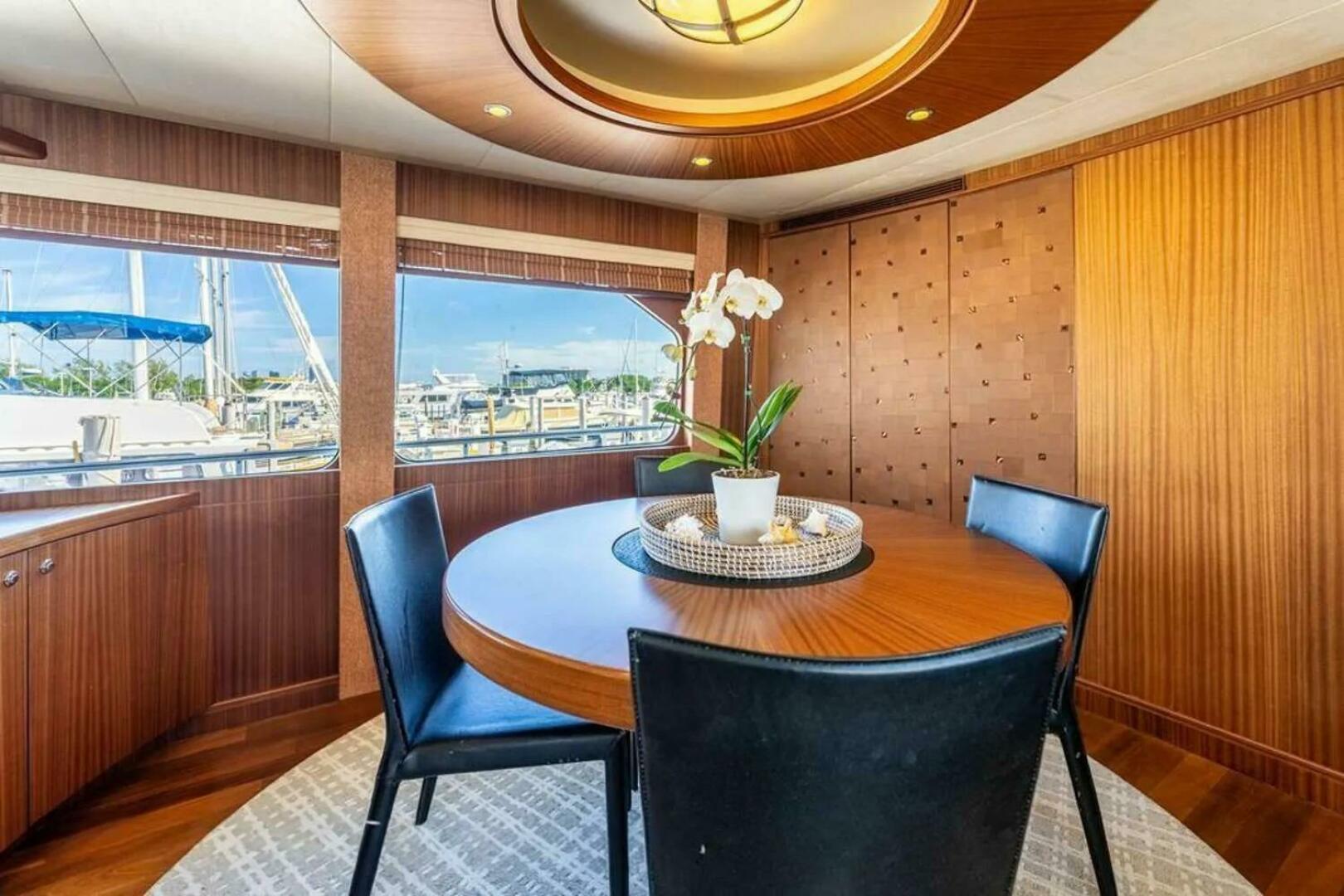

• Round Dining Table & (6) Dining Chairs to Port
• Excellent Visibility from Salon and Entertainment Areas
• Day Head is off the Companionway and Galley
• Starboard Access from Galley to Side-Deck and Bow
• Starboard Access to Flybridge

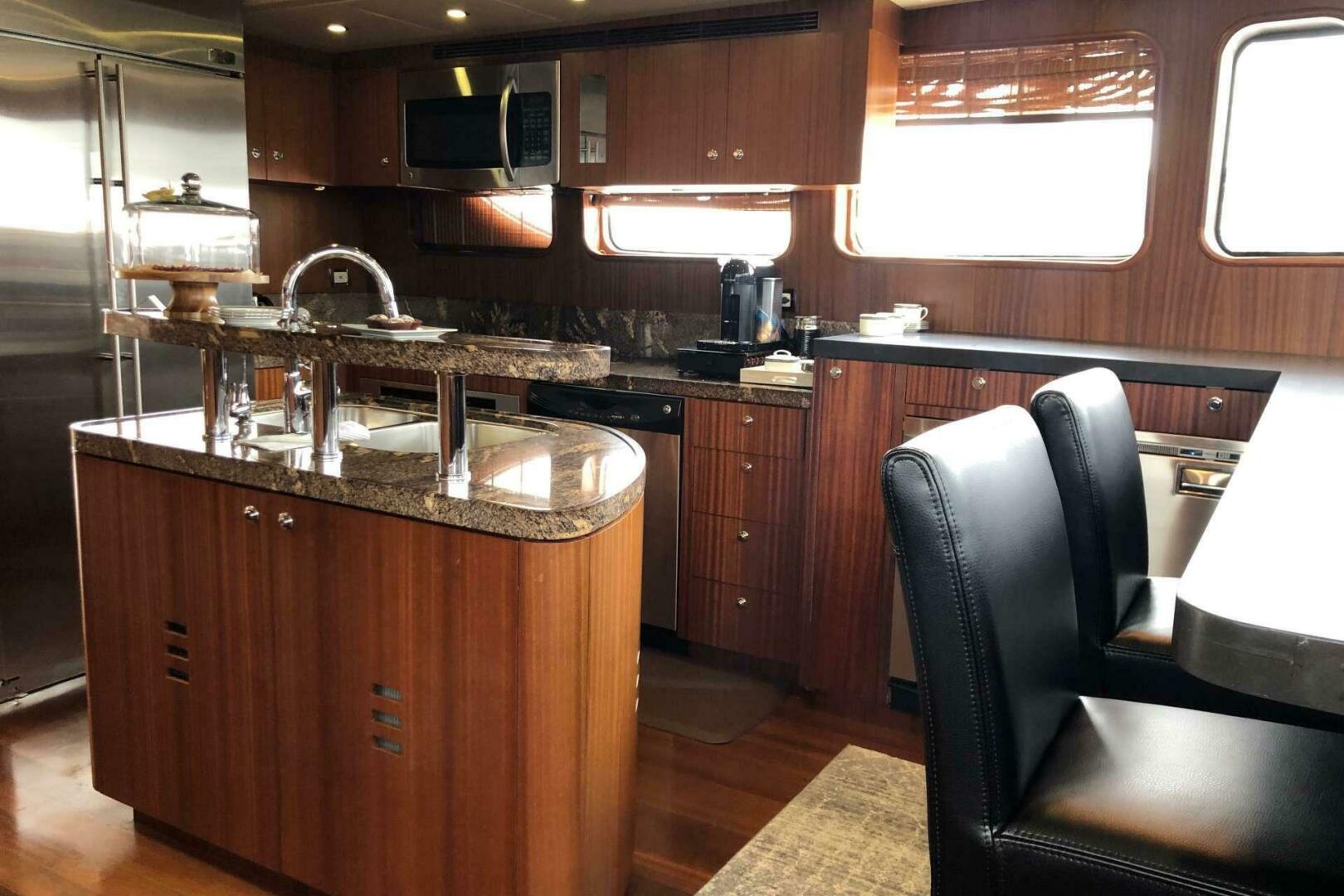

Galley

• GE Stainless Steel Side‐by‐Side Refrigerator/Freezer with Ice Dispenser
• GE Stainless Steel Oven
• GE 4-Burner Ceramic Cooktop
• GE Stainless Steel Microwave
• GE Stainless Steel Dishwasher
• Kenmore Elite Trash Compactor
• Stainless Steel Double Sink
• Full Height Sliding Pantry Cabinet
• Pantry Closet Adjacent to Galley
• Generous Cabinetry and Drawer Space
• Excellent Counter Space for Food Prep & Work Island
• (3) Sub‐Zero Stainless Steel Refrigerator Drawers
• (3) Sub‐Zero Stainless Steel Freezer Drawers
• Breakfast Bar Facing Forward

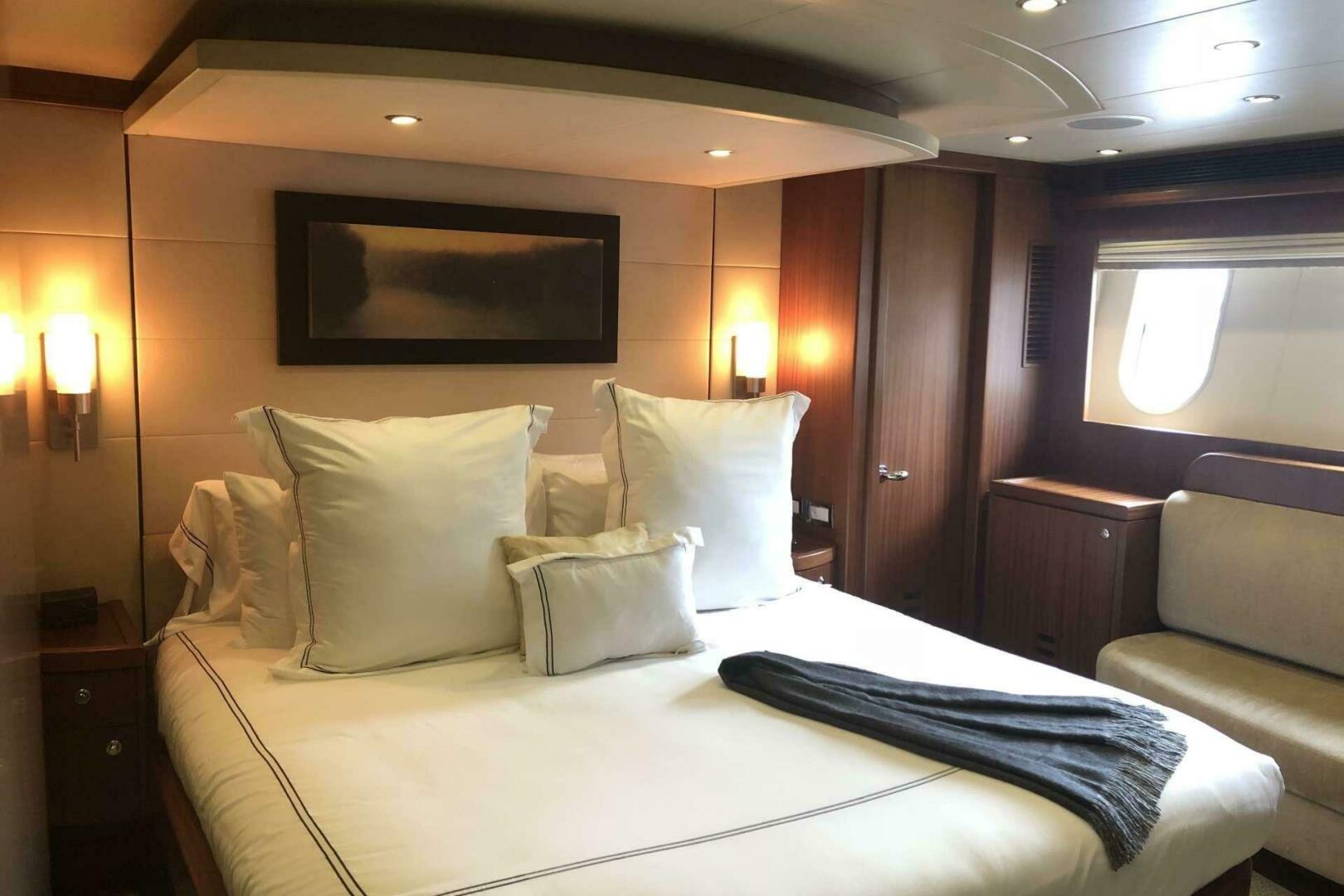

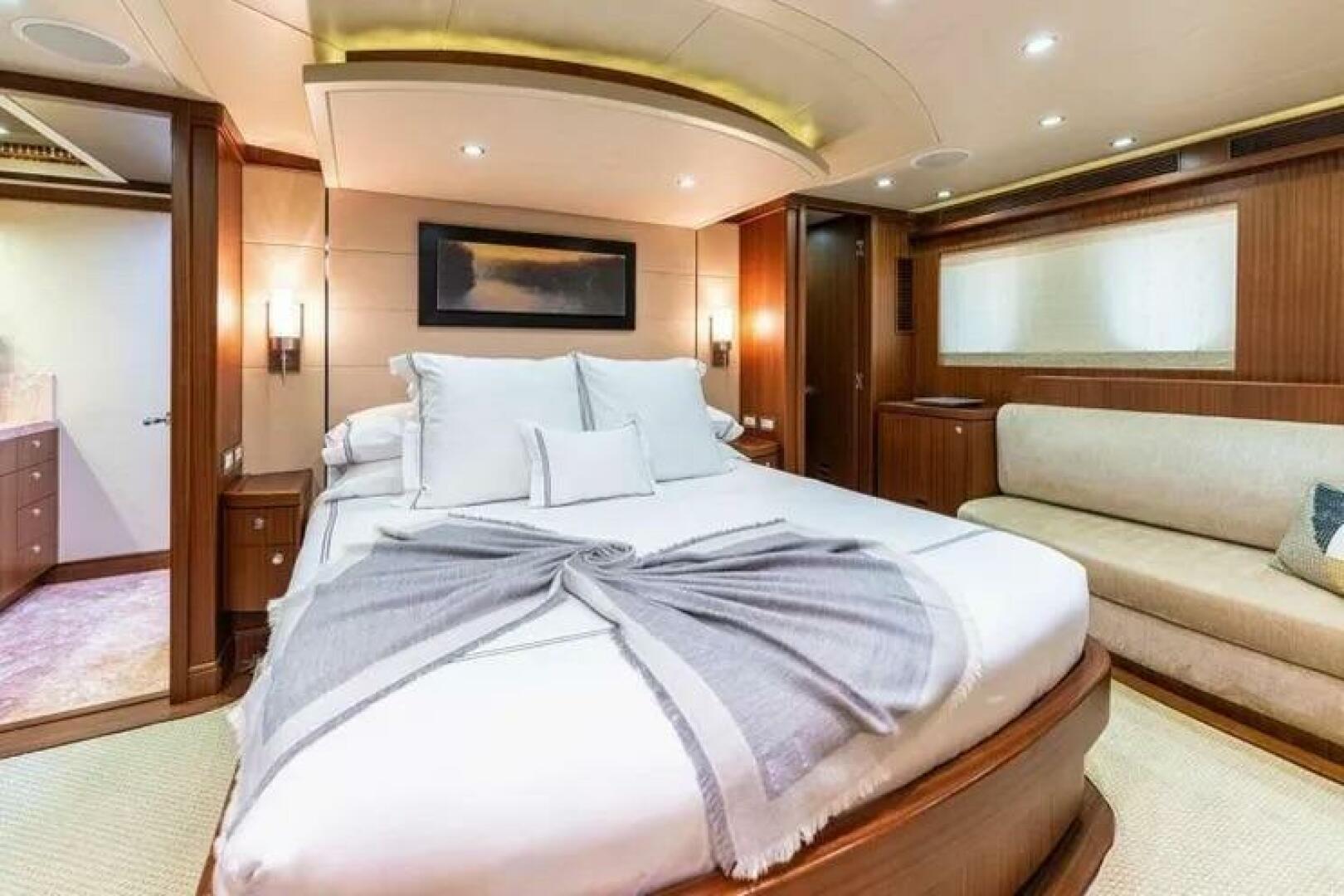

Master Stateroom

• King Berth with Storage Below
• Walk‐In Cedar-Lined Closet with Secure Safe
• Single Cedar-Lined Closet
• Large Settee
• Entertainment System
• Master Bath w/ Oversized Stall Shower with Granite Walls and Floor, Vanity, Cabinetry Storage, Electric Toilet
• Emergency Access to Main Engine Room

VIP King Stateroom

• King Island Berth
• Vanity Dressing Table to Starboard
• Upholstered Bulkheads
• Large Upholstered Settee to Port
• Wardrobe, Cedar Lined on Back Surface with Mirror on Door
• Built-In Drawer and Storage Cabinetry
• Fixed Large Oval Ports
• Entertainment Systems Management Speaker Craft Ceiling Speakers
• Crestron Prodigy Amp
• Crestron Prodigy Control System
• Stall Shower Granite Shower Walls, Countertop, and Floor Electric Head
• Generous Storage

Queen Guest Stateroom, Forward

• Queen Berth
• Vanity Unit with Mirror and Cabinetry
• Valance and Floor Lights with Control Switch
• Wardrobe Cedar Lined on Back Surface, with Mirror on Door
• Stainless Steel Framed Ventilation Hatch with Shade
• Head: Vanity and Cabinetry Stall Shower Electric Head
• Companionway:
• 27" Stackable Washer/Dryer
• Utility Storage Cabinet
• Access to Deep Storage Bilge Area, Hot Water Heater and Watermaker

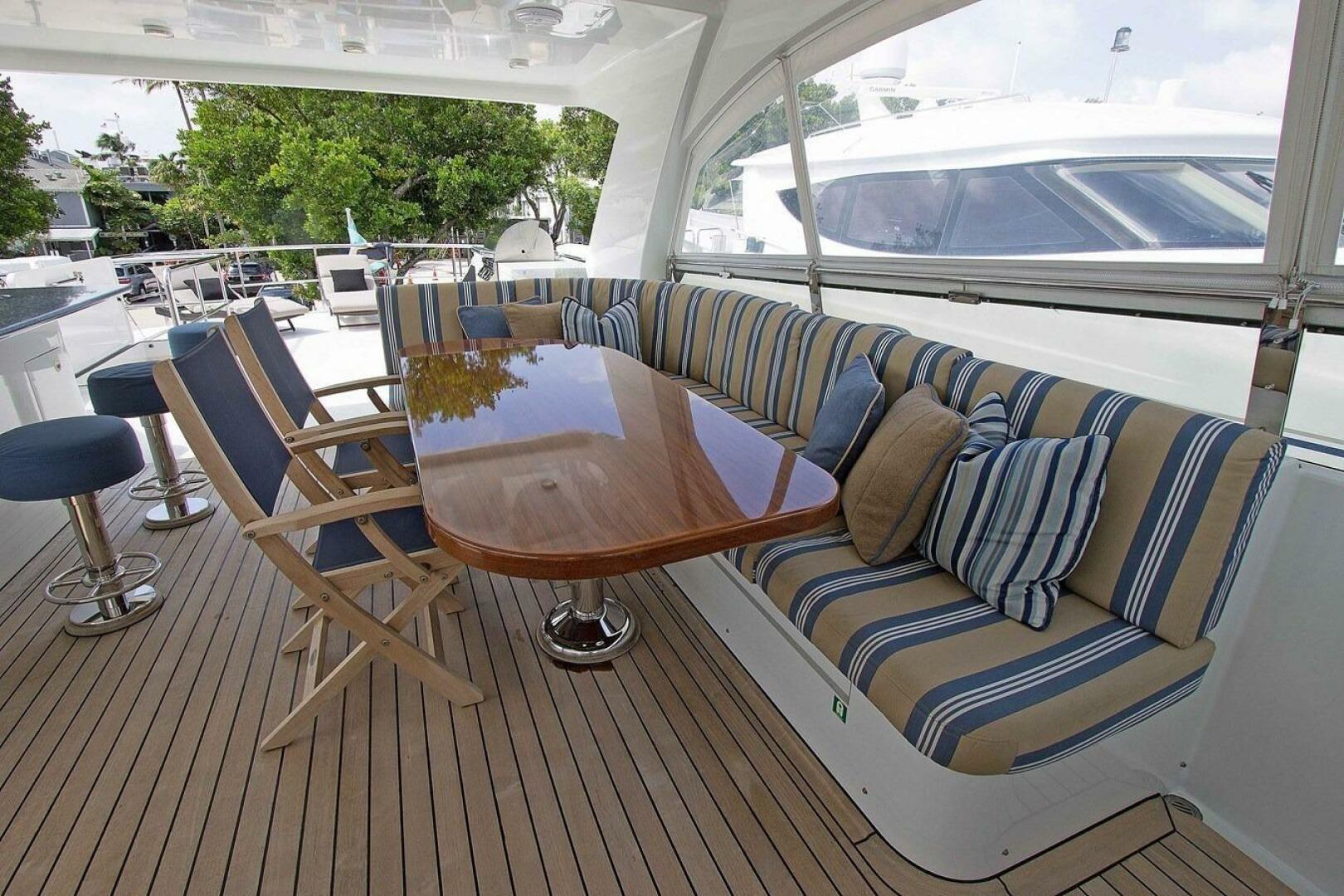

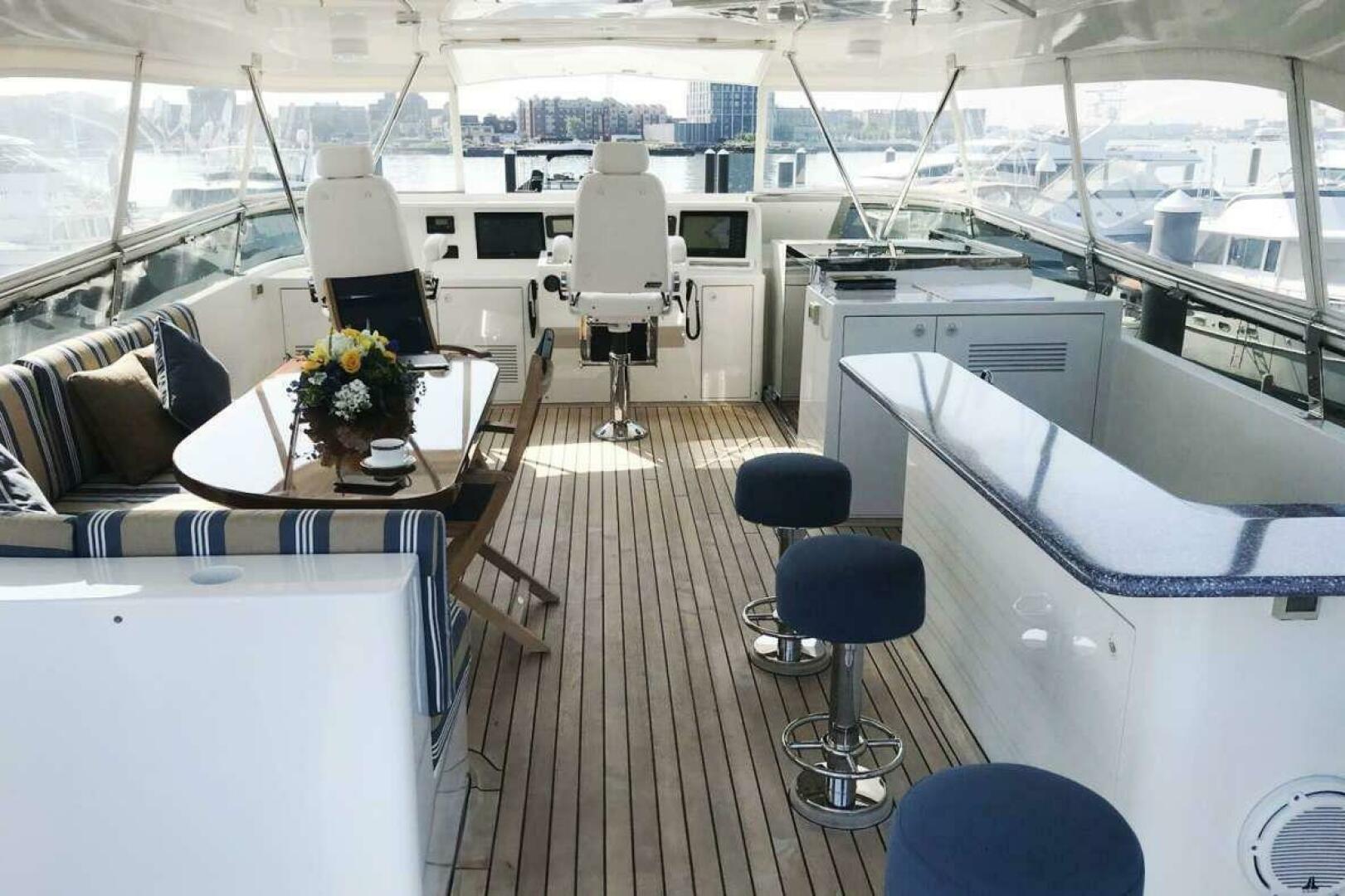

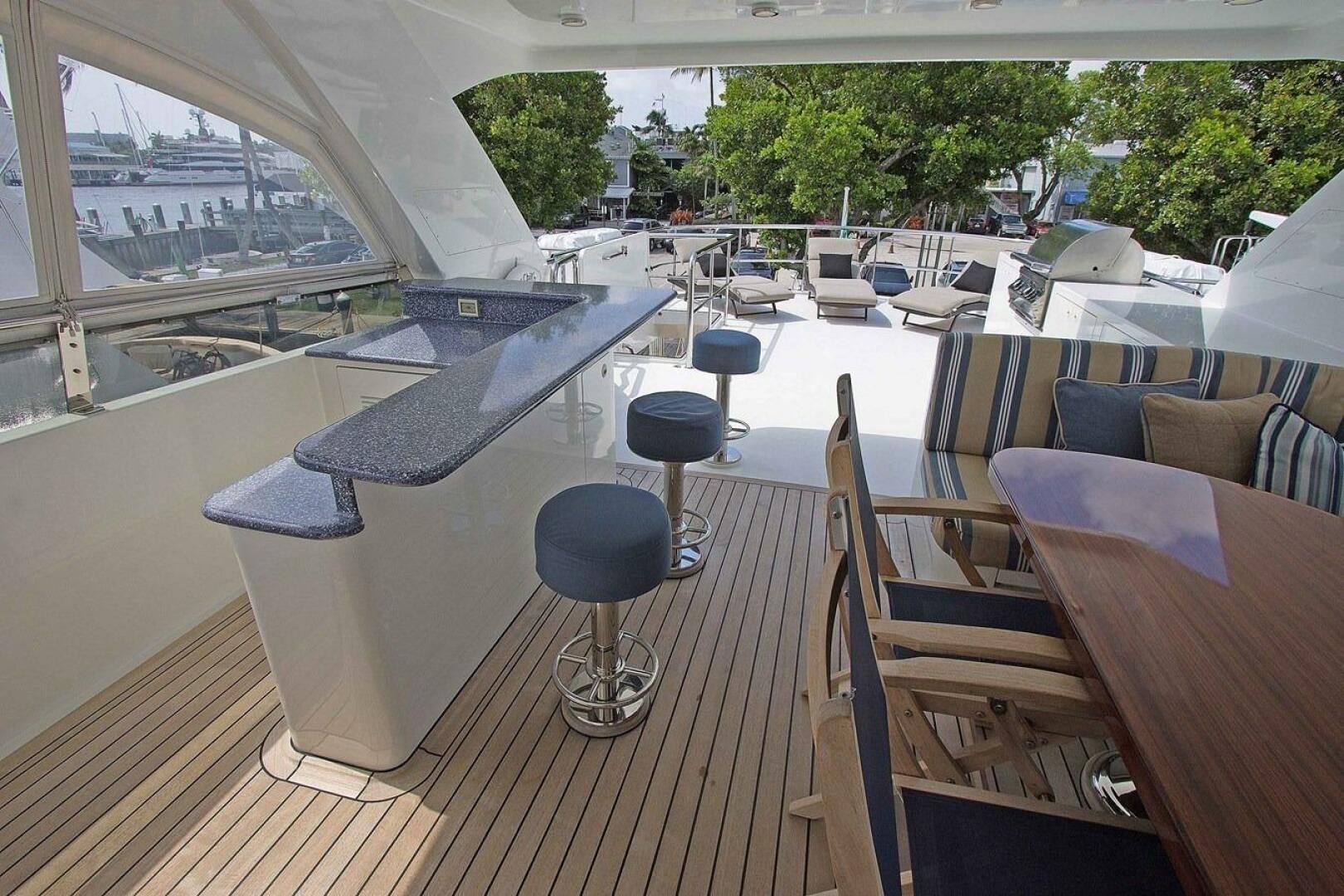

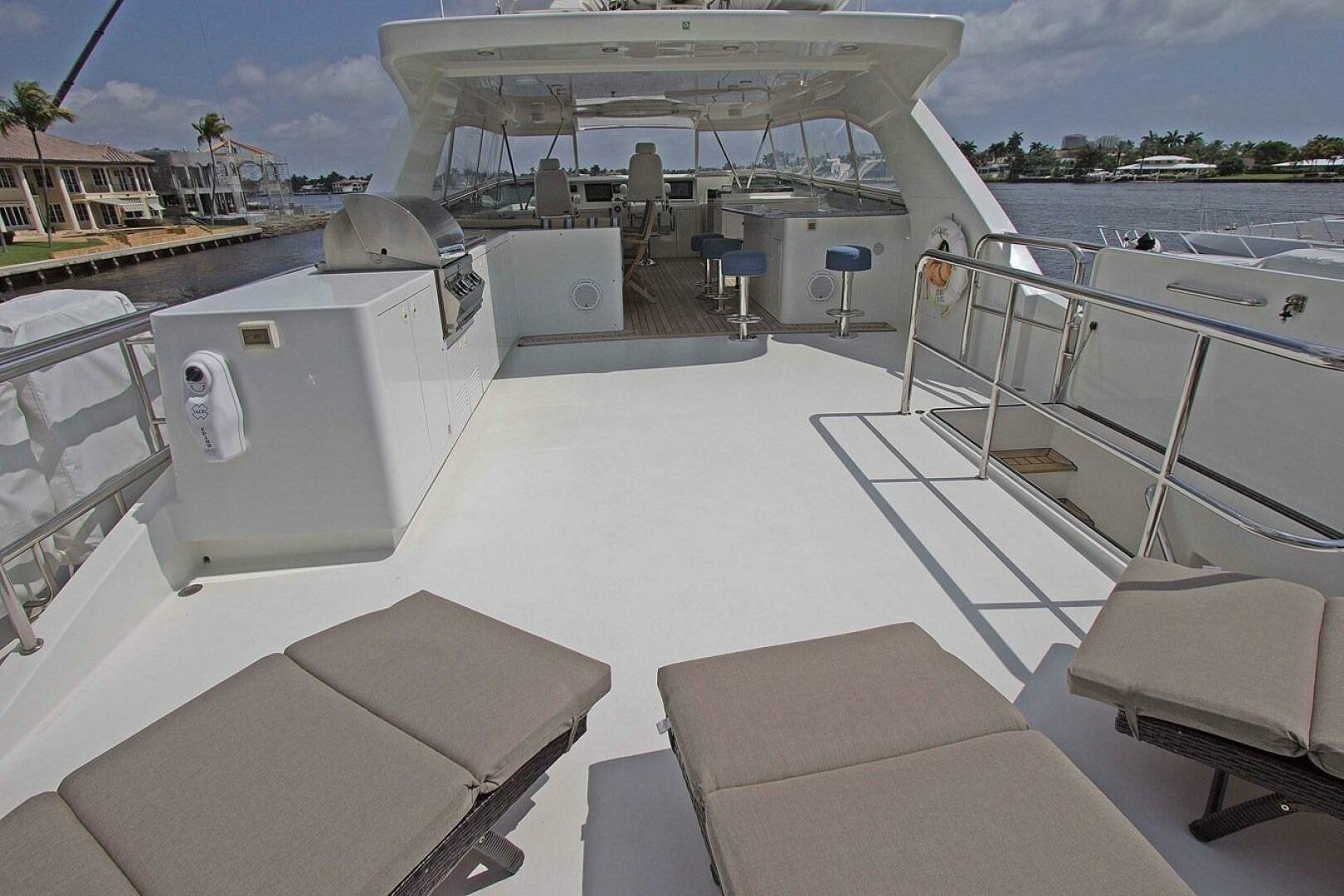

Flybridge Equipment

• Mathers MC20002 Electronic Engine Controls
• Teleflex Hynautic Hydraulic Power Steering
• Integral Fiberglass Hardtop w/ Radar Arch
• Flush Mounted Lighting Red Night Lights
• (2) ACR 100 Quartz Halogen Searchlights
• Twin Trumpet Air Horn
• 8‐Man Life Raft with Chocks & Hydrostatic Release
• Stidd Helm Mounted Seats
• (2) Stainless Steel, Tempered Glass Sliding Hatch Covering Staircase to Salon
• Stainless Rail Around Upper Aft Deck 1 3/4" (Top Rail Only)
• 48' 6" Lounge Seat with Storage Below
• High Gloss Teak Table with Hi‐Lo Stainless Steel Pedestals
• Corian Bar Top, Sink, Hot/Cold Faucet, Freshwater Washdown, Refrigerator and U‐Line Icemaker
• (4) Bar Stools with Sunbrella Sapphire Blue Upholstery with Stainless‐Steel Pedestals
• Portside Island Cabinet with Storage Lockers
• Fire Magic 24" Custom Gourmet Grill in Cabinet
• Air Conditioned with Vents at Helm
• Drop Down Overhead TV Weathertight Cabinet
• Large Deck Lounge Area

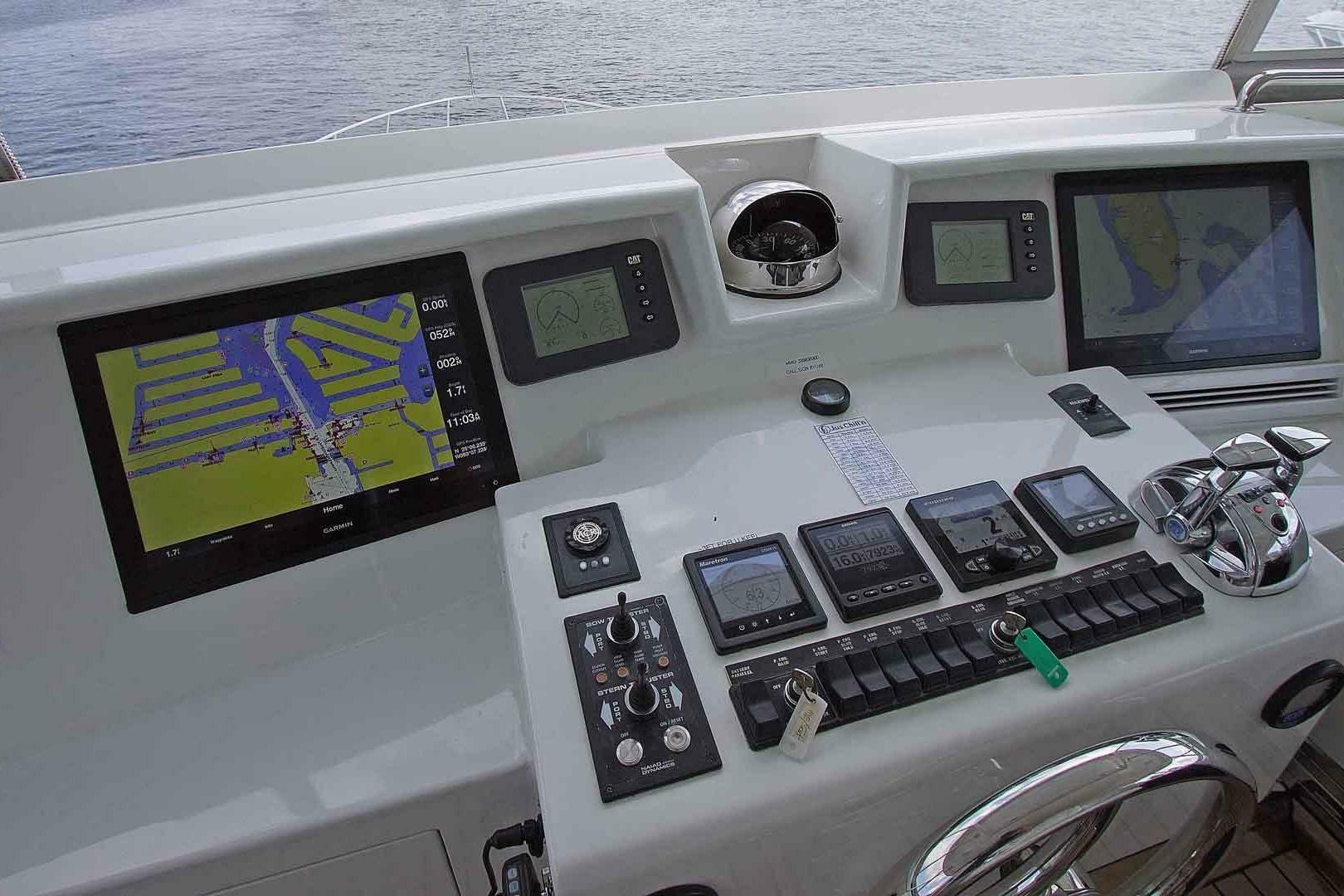

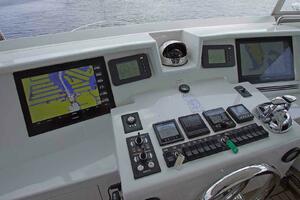

Electronics & Navigational Equipment

• Garmin Fantom  Open Array & Pedestal
• (2) Garmin 8417 17" Multi‐Functional Displays
• Garmin AIS 600
• Garmin GM120 Display
• WS‐220WX Weather Station
• Black Box Radar/Chart Plotter 12kw, 72-Mile Radar
• Antenna Radar 6'
• Depth/Speed Trip Odometer
• Wind Instrument
• Powerboat Weather Station Sensor
• GPS Antenna
• Furuno 511 Autopilot
• (2) Icom VHF M504A
• (2) Hailer Horn (Speco) SPC40RP
• KVH TracVision Satellite TV M7
• KVH Radome
• CCTV Camera System
• Maretron Ships Monitoring Multi-Function System
• Engine Room Camera PTZ (Record to DVR)
• Aft Deck Camera PTZ (Record to DVR)VGA Splitter
• Tracking Device
• Nav-Tracker 2.0 Sat/GPS, PMNT2.060
• Nav-Tracker Antenna
• Maxwell Anchor Windlass Control
• Generator Control Displays
• Yacht Controller Remote Cable Docking Station
• Bow / Stern Thruster Control Displays

Crew Quarters

• Upper and Lower Berths
• Wardrobe Cedar Lined
• Crew Lounge with Upholstered Settee and Corian Table Top
• U-Line Stainless Steel Refrigerator
• Stainless Sharp Microwave Oven
• Access to Rear Lower Deck
• Access to Main Engine Room Head:
• Galley Maid Electric Head (Freshwater Flush), Stall Shower

• Twin Caterpillar C32 Acert, 1600HP Diesel Main Engines (2400Hrs)
• Full Service August 2025, Fuel coolers, 1000-hour Service
• Local Mounted Start/Stop Instrument Panels for Engines and Gens
• Underwater Exhausts with Bypass and Fiberglass Mufflers
• (2) Kohler 32KW Generators with Sound Guards
• 220v A/C Chilled Water Air Conditioning with Frequency Drives
• Centek Combo Generator Mufflers Air/Water Separator Type with Hull Side Exhaust
• Engineered Engine Room Ventilating System with Intake Blowers Taking Air in via Air/Water Separator Filters on Hullside
• Fire Protection System, Manually and Automatically Actuated Fire Extinguisher System with Audio and Visual Alarms Upon System Actuation Blowers Are Shut Down and Hull Side Ventilation Inlet Dampers Are Designed to Close
• Naiad Hydraulic Bow & Stern Thrusters
• Bow and Stern Thrusters Driven by PTOs off Gearboxes, (2) Live C-Pads
• Stabilizer Control System
• Power Hydraulic Steering System Including Valves for Optional Add'l Autopilot
• AC Backup Water Pump
• DC Backup Water Pump
• Sea Recovery 1200 GPD Watermaker
• Engine Driven Emergency Bilge Pumping System for Engine Room Bilges
• Reverso Lube Oil Change System with Manifold to Engines and Gearboxes
• Racor Fuel Filters with Vacuum Gauges for the Main Engines, Manifold to Allow Filter Change Underway
• Racor Filters with Vacuum Gauges for Generators
• (2) 30‐Gallon Water Heaters, Dual Element, Quick Recovery Type
• Headhunter Mach 5 Water Pump and Accumulator Tank for Fresh Water Pressure
• Cartridge Style Whole System Water Filter Unit
• Sink with Fresh-Water Hose Bib
• Fuel Management System, Fuel Shut‐Off Valves, Fuel Transfer Pump with Meter System and Selector Manifold
• Hart Tank Tender Gauges for Fuel, Fresh Water, Black Water/ Grey Water Tanks
• Black Water Tank Level Indicator and High‐Level Alarm
• Black Water Holding Tank System with Y‐Valve Selector to Direct Discharge Overboard or Holding Tank
• Macerator Pump for Pump Out of Holding Tank Direct Overboard or to Vented Deck Fitting for Shore Side Disposal
• Groco Bronze Raw Water Strainers All Engines and Sea Water Pump Intakes
• Seacocks on All Through Hull Fittings
• Battery Condition Indicator
• Engineered Sound Vibration and Noise Attenuation System for Engine Room Spaces with Lead Tile Sound Barriers and Mylar Faced Synthetic Lead Foam Insulation Covered with White Painted Aluminum Perforated Sheeting
• Custom Sound Mounts for Main Engines, Generators, Engine Room Stanchions, Head Pumps/Motors, Air
• Conditioning Compressors and Sea Water Cooling Pumps
• Seashaft 22 or Equal Propeller Shafts
• Stainless Steel Rudder Blades
• Nibral Propeller Shaft Struts
• Nibral Propellers, 5 Blade, Class S, Dynamically Balanced
• Duramax Cutlass Rubber Stern and Bearings
• PYI Dripless / Packless Shaft Seals
• Watertight Entrance Door from Aft Swim Step to Crew Area
• Watertight Emergency Escape Hatch from Engine Room to Master Stateroom

Electrical Equipment

• 220/110v, 60Hz AC and 24/12v DC Electrical Panels
• ACR 100 Searchlight with Dual Station Remote Control
• (2) 24v DC 245Ah 8D AGM Battery Banks for Engine Starting/Ship Service
• Battery Parallel System at Both Helm Stations
• (2) 24v DC 60A Battery Chargers
• (2) 12v DC 175‐Amp Hour Battery Banks for Generator
• 12vDC 20A Battery Charger
• Vanner 50 Amp 12v DC Equalizer with 12v DC 120‐Amp Hour Battery and 12 Spare 24/12v DC Circuit Breakers in Sub‐Panel for Electronic Use
• 24v DC 198Ah 4D AGM Battery Bank for LED Lighting Circuit
• Glendinning Cablemaster Shore Power Cable Retrieval System with 100' Cable
• Shore Phone Inlet with 100' Cable
• Shore Cable TV Inlet with 100' Cable
• Copper Bonding System Connecting All Through Hull Fittings and Major Metal Components to Exterior Hull Zinc Anodes
• Isolation Transformer 25 Kva for Shore Power System
• Dyna‐Plate Grounding Plate and Strap to Pilothouse / Flybridge Ground Terminal Boards
• Voltmeters and Ammeters for Supply Circuits
• Generating Set/ Shore Power Selector Switches and Shore Power Polarity Indicator
• LCD Touch Screen Control / Alarm Monitoring System with Audible and Visual Signals Displayed on Programmable Logic Controller (PLC) Located at Helm for Generator

Additional Features

• Complete Maretron Backbone Cable Was Installed Throughout the Vessel to Support the Vessel's Monitoring System
• Electronic Monitoring of All Tankage, Fire System and Weather Information Interfaced with Garmin System Monitor in Crew Cabin and Helm
• TNT Tender Lift with Zar 15 2019 with 90 Hp
• Toys

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
