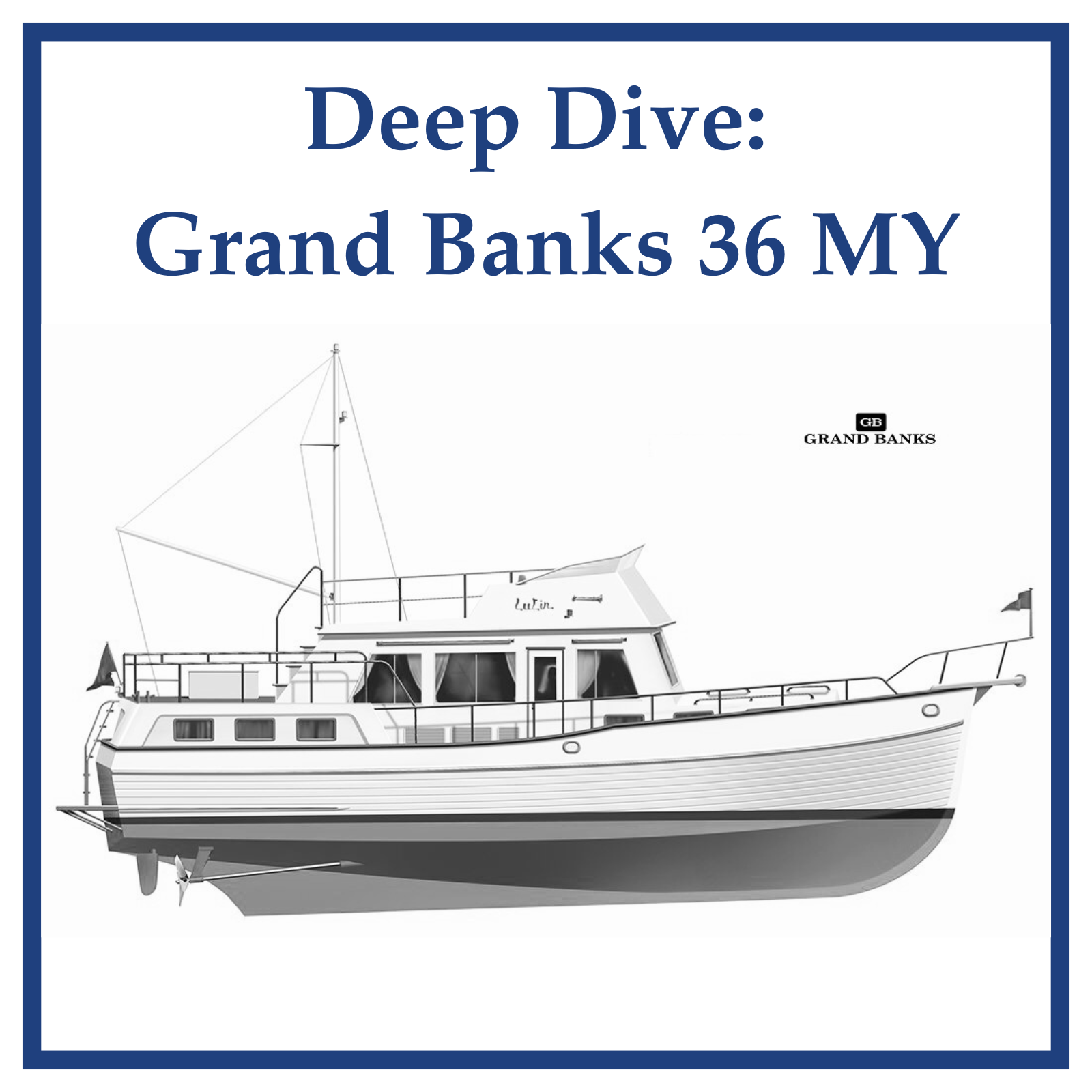

The Grand Banks 36 Motor Yacht, built from 1995 to 1998, is an elegant cruising yacht that shares a similar interior layout and the same semi-displacement hull as the 36 Classic. The key distinction lies in the exterior design; the 36 MY features a raised aft deck, providing ample space for deck chairs and other amenities. The GB36 Series includes the Classic, Europa, Sedan, and Motor Yacht.
Grand Banks MY offered two primary two-stateroom, galley-up interior configurations for the 36 MY. The standard floor plan included a utility area forward, opposite the head. An alternative arrangement replaced the utility space with a separate stall shower and featured a centerline island bed forward. Both layouts included a lower helm and a deck door in the salon, with large cabin windows offering panoramic water views.
Consistent with all Grand Banks boats, the 36 MY boasts wide side decks. The mast can be lowered for bridge clearance. Additional features include teak decks and cabin top, a spacious engine room, a bow pulpit, a teak swim platform, and an opening front window. A single 210hp Cummins diesel engine, standard, provides a cruising speed of 8 knots, while twin 210hp engines allow for a cruising speed of 10-12 knots.
Key Features:
- Hull Design: Its semi-displacement hull provides an optimal blend of speed and stability.
- Engine Options: Available with either a single 210hp Cummins diesel, achieving speeds of 8 knots, or twin 210s for a cruising speed of 10-12 knots.
- Flybridge: Includes a helm station, ample seating, and frequently a bimini top.
- Lower Helm: A standard feature, it boasts a side access door and large cabin windows for panoramic views.
- Aft Deck: A raised aft deck provides a dedicated space for relaxation and outdoor activities while making for a true master cabin.
- Side Decks: Wide side decks enhance safety and ease of movement around the vessel, which is a trademark of Grand Banks.
GB 36 SPECIFICATIONS
| LOA | 36’10” |
| LWL | 35’2″ |
| BEAM | 12’8″ |
| DRAFT | 4′ |
| DISP | 27,000 lbs |
| FUEL | 400 gallons |
| WATER | 140 gallons |
| HOLDING | 40 gallons |
| HULL | Semi-Displ |
Grand Banks 36 Motor Yacht Brochure
More Grand Banks 36 Models:
| Model | Production |
| Grand Banks 36 Classic Wood | (1965-1973) |
| Grand Banks 36 Classic Fbg | (1973-2004) |
| Grand Banks 36 Europa | (1988-1998) |
| Grand Banks 36 Sedan | (1984-1996) |
The Grand Banks 36 Motor Yacht was available with either a single 210 HP Cummins engine or a twin 210 HP Cummins engine configuration.
Cummins 6BT / 6BTA 5.9
- The highest production 6-liter diesel ever made, and is still in production in over 6 countries worldwide
- The most proven mid-range diesel platform
- The 6BT is the engine that put the Dodge Ram famous.
- Simple 12 valve mechanical design
The 5.9L Cummins diesel engine, while generally reliable, can experience common issues such as:
- Fuel System Problems: This includes potential failures of the lift pump and injection pump.
- Cracking: The cylinder head and exhaust manifold are susceptible to cracking.
- Coolant Loss: Users may observe coolant loss without visible leaks.
- Overheating: The engine can be prone to overheating.
- Head Gasket Failures: This is a particular concern with modified engines.
Cummins 6BT / 6BTA 5.9 Specifications
HERITAGE SERIES MODELS
| Model | Production |
| Grand Banks 32 Sedan | 1964-1979 |
| Grand Banks 36 Classic | 1964-2004 |
| Grand Banks 36 Europa | 1988-2001 |
| Grand Banks 36 Motor Yacht | 1995-1998 |
| Grand Banks 41 Europa | 2009-2012 |
| Grand Banks 42 Classic | 1975-2005 |
| Grand Banks 42 Europa | 1979-2005 |
| Grand Banks 42 Motor Yacht | 1987-2005 |
| Grand Banks 43 Europa | 2012-2015 |
| Grand Banks 46 Europa | 1993-2004 |
| Grand Banks 46 Classic | 1987-2004 |
| Grand Banks 46 Motor Yacht | 1990-2004 |
| Grand Banks 47 Classic | 2007-2014 |
| Grand Banks 47 Europa | 2005-2011 |
| Grand Banks 48 Motor Yacht | 1972-1977 |
| Grand Banks 49 Classic | 1980-1999 |
| Grand Banks 49 Motor Yacht | 1986-1999 |
| Grand Banks 50 Classic | 1968-1974 |
| Grand Banks 52 Europa | 1998-2008 |
| Grand Banks 54 Europa | 2012-2016 |
| Grand Banks 57 Europa | 2020 |
| Grand Banks 58 Motor Yacht | 1990-2002 |
| Grand Banks Gulf Coast | 1963-Present |
